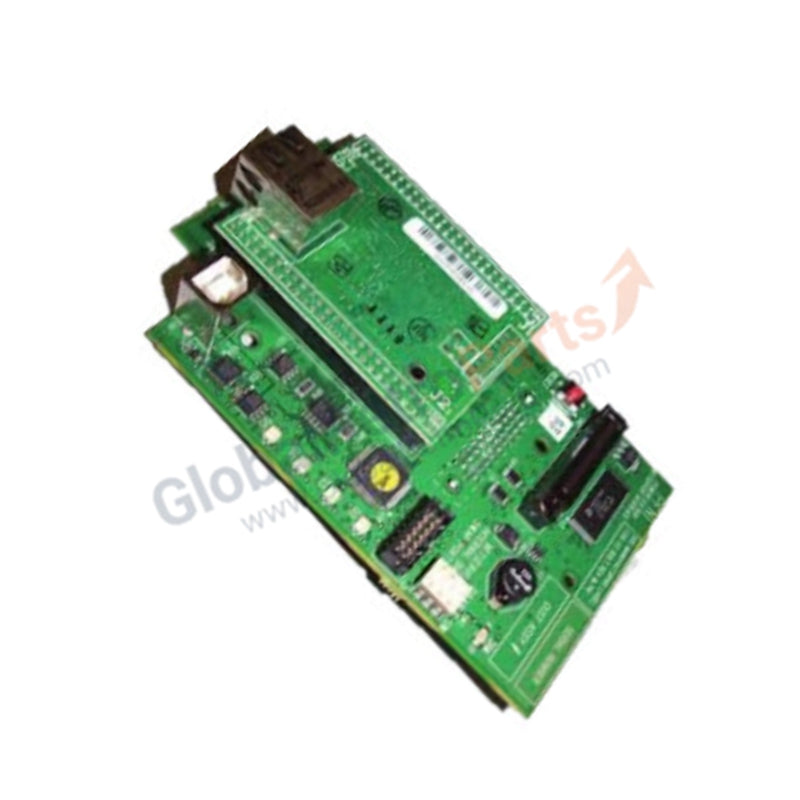

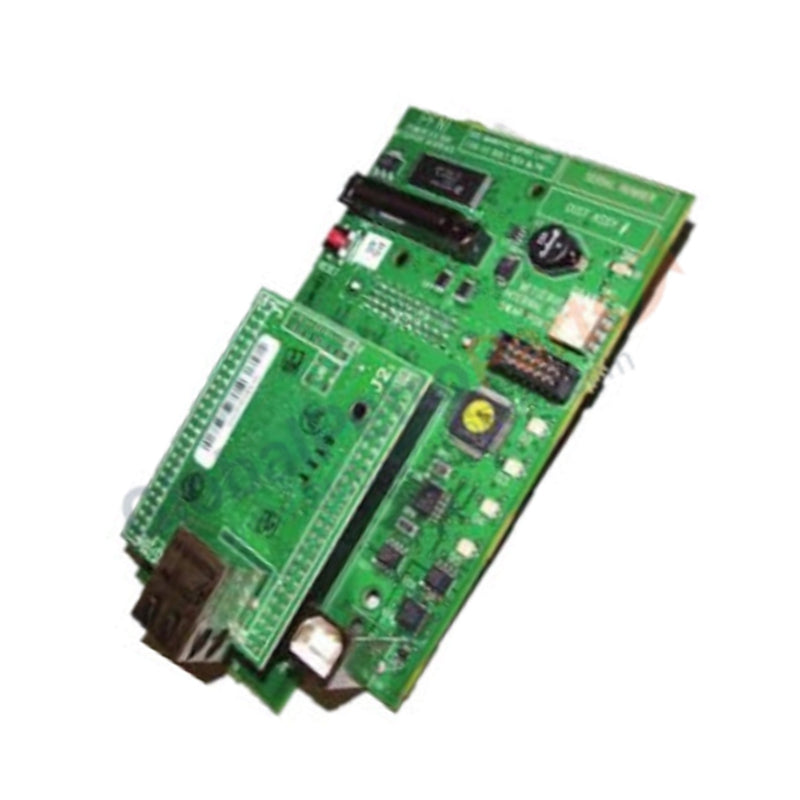

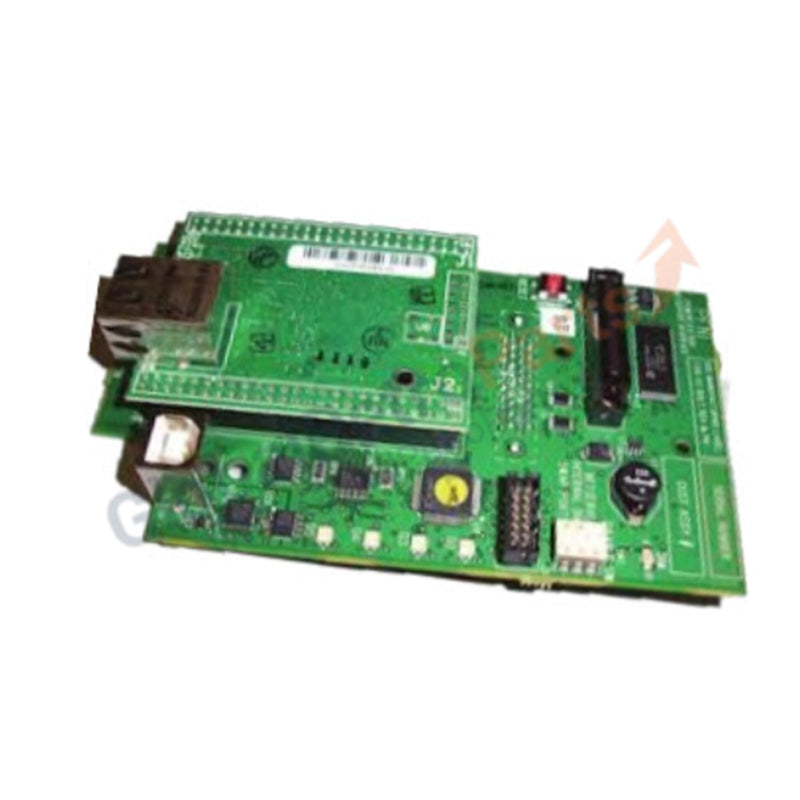

Allen-Bradley 80190-780-01-R NetServer Interface Board

Configured for HMI data aggregation in industrial control networks, the Allen-Bradley 80190-780-01-R (80190-780-01-R Interface Board) provides direct physical/electrical execution. This assembly serves as the primary NetServer interface module utilized to execute HMI communication tasks across Allen-Bradley control platform architectures.

Hardware Specifications

Profinet / EtherNet/IP Deterministic Networks

The 80190-780-01-R operates as an intermediary interface within the NetServer assembly, facilitating data exchange between the HMI layer and the underlying controller network. The module requires stable backplane bus communication velocity to ensure synchronization of interface data. I/O density scaling and performance metrics are bound by the resident firmware version; users must confirm firmware flash compatibility before integration into existing chassis environments to prevent communication protocol mismatch or buffer overflows during high-volume data polling.

Frequently Asked Questions

Q: Is this interface board field-repairable?

A: No. The board assembly contains sensitive logic components and printed circuit traces that cannot be serviced in the field. The unit must be replaced as a complete assembly if internal faults occur.

Q: What are the primary communication limitations of this interface?

A: The board is limited by the supported NetServer protocol stack. Users must ensure that the host controller's communication ports are configured for the specific baud rate and framing required by this interface to maintain deterministic signal exchange.

Field Installation Guidelines

• Chassis Installation: Ensure the interface board is correctly aligned with the mounting guides in the NetServer assembly. Insert firmly until the connectors are fully seated and secure the assembly using the integrated mounting hardware.
• Grounding: Ensure the interface board is properly bonded to the assembly chassis, which must be connected to a clean earth ground to mitigate electromagnetic interference (EMI) and protect sensitive logic circuits.
• Cabling: Route interface cables through designated wireways, ensuring separation from high-voltage AC power lines to prevent signal crosstalk. Verify that all cable connections are secure and seated correctly.
• Handling: This board contains static-sensitive electronic components. Use an anti-static wrist strap and proper ESD protection protocols during handling and installation to prevent latent hardware failure.
