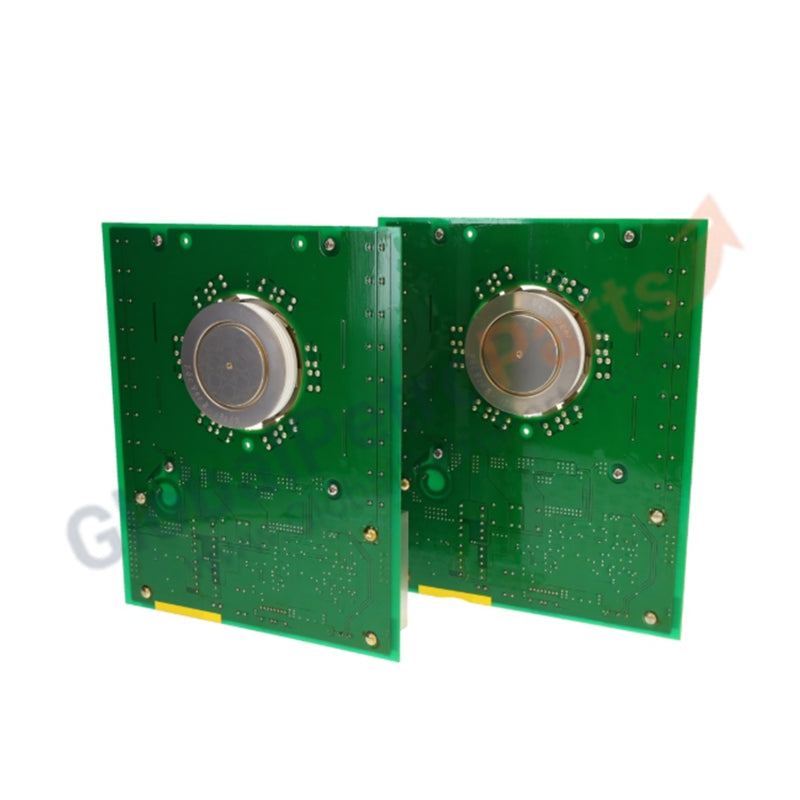

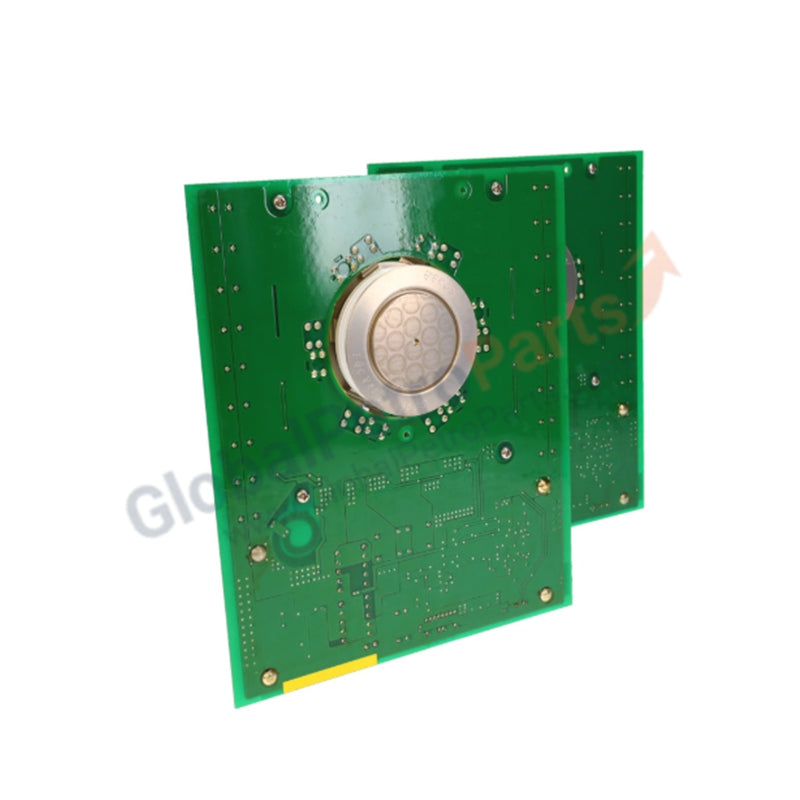

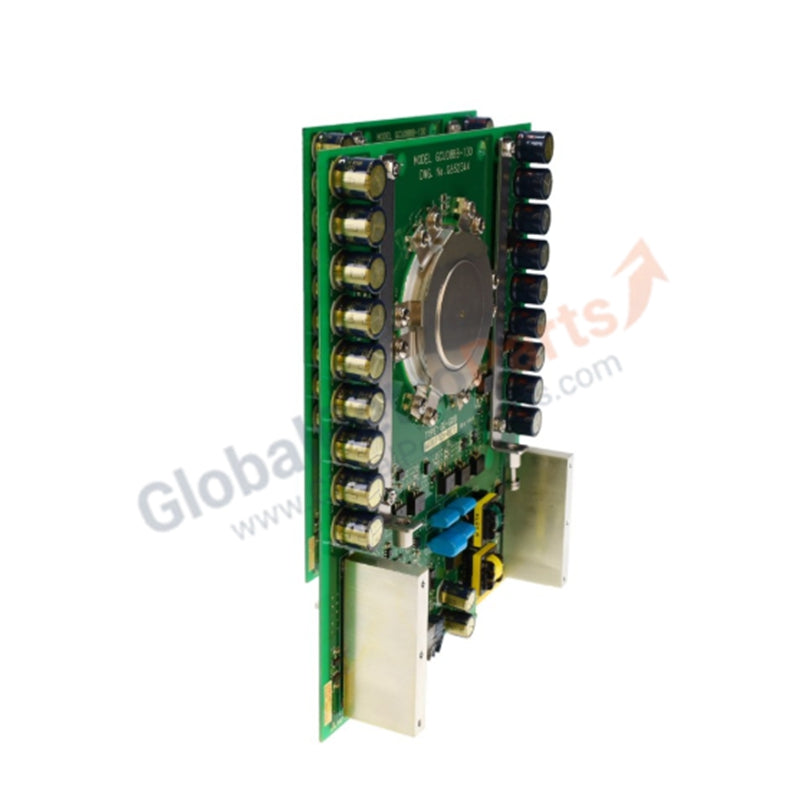

Allen-Bradley 81001-450-52-R Thyristor Power Block

Configured for high-current switching within industrial drive power stages, the Allen-Bradley 81001-450-52-R (81001-450-52-R Power Block) provides direct physical execution of symmetric gate-controlled thyristor (SGCT) power modulation.

Hardware Specifications

Drives: Thermal Heat Sink Dissipation Profiles

The 81001-450-52-R power block is engineered to operate under high-current loads, necessitating strict adherence to thermal dissipation profiles. As a matched set of SGCT devices, the thermal impedance between the thyristor junctions and the heat sink assembly must be minimized to prevent junction temperature excursions beyond operational limits. Effective heat sink dissipation depends on the surface contact pressure and the application of an appropriate thermal interface material (TIM). Failure to maintain adequate airflow or liquid cooling flow rates will directly impact the current carrying capacity of the 800 A thyristor set, potentially leading to semiconductor failure.

Frequently Asked Questions (FAQ)

Q: Why is this component provided as a "matched set"?

A: SGCT devices in parallel or series configurations within a single drive power block must exhibit nearly identical gate-turn-off characteristics and forward voltage drops. A matched set ensures balanced current sharing across all thyristors, preventing localized overheating and premature degradation of individual components.

Q: Is this power block field-repairable?

A: No. The internal assembly is factory-aligned and tested for optimal electrical performance. Attempts to disassemble or replace individual SGCT components within the block will compromise the matched characteristics and result in an unstable power stage.

Field Installation Guidelines

• Surface Preparation: Prior to mounting the power block to the drive heat sink, verify that all mating surfaces are clean, free of oxidation, and devoid of debris. Ensure the heat sink is perfectly flat.

• Torque Specifications: Secure the power block using the factory-specified torque values. Uneven mounting pressure will result in localized thermal hotspots and compromised electrical contact, leading to reduced current capacity.

• Connections: High-current busbar connections must be inspected for corrosion. Clean surfaces and apply a thin layer of joint compound if required to ensure a low-resistance path capable of handling the 800 A peak load.

• Inspection: After installation, measure the gate impedance of each SGCT node to confirm that no damage occurred during mechanical mounting. Refer to the specific drive service manual for expected resistance values.
