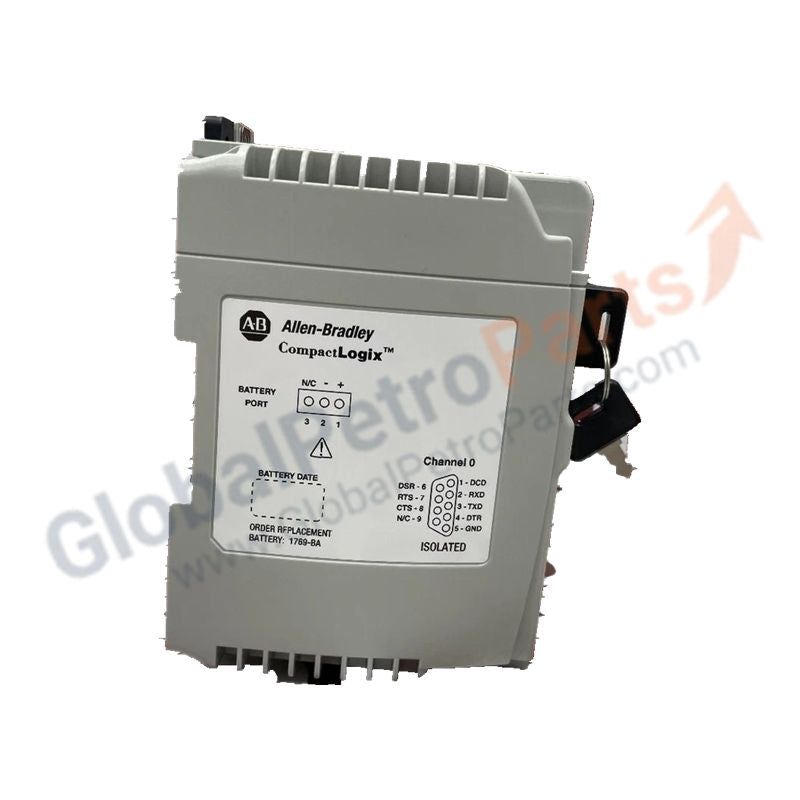

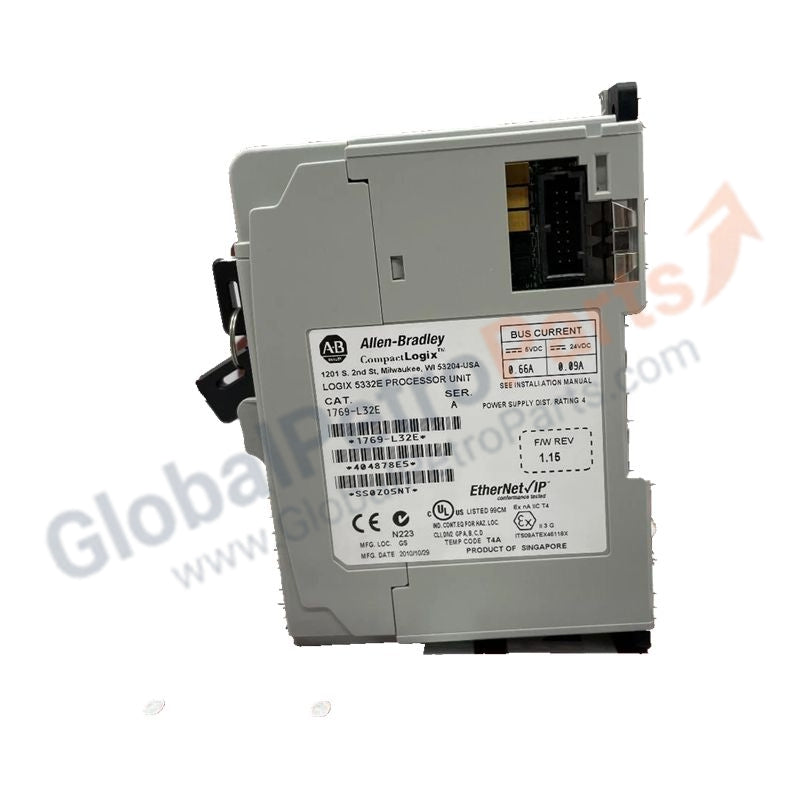

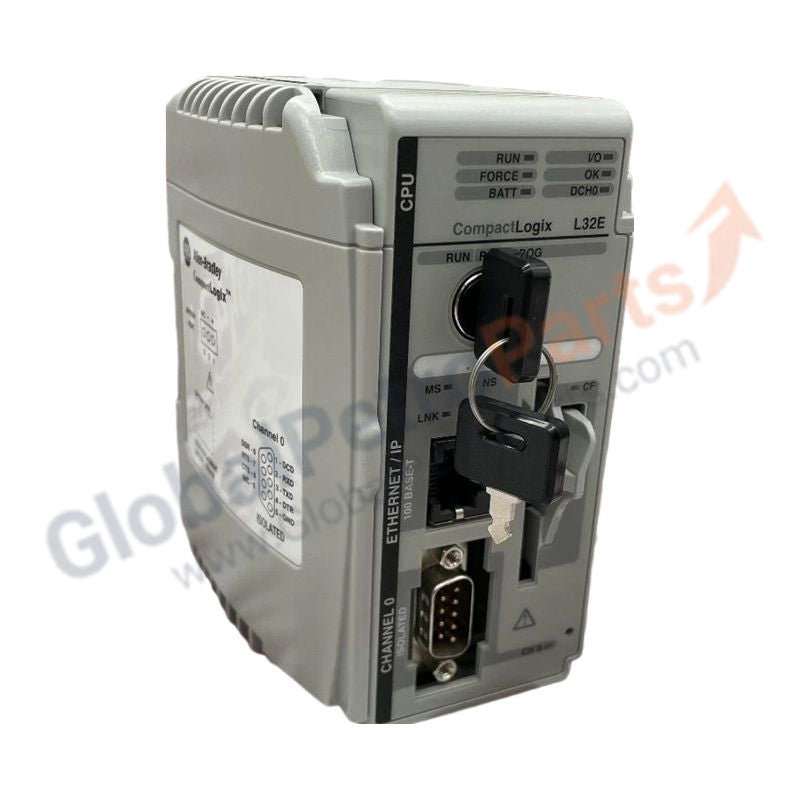

Allen Bradley CompactLogix Ethernet Processor 1769-L32E

Product Description

The 1769-L32E is a robust CompactLogix controller designed for small to medium-sized industrial applications. It combines high-speed EtherNet/IP communication with legacy RS-232 support, enabling seamless integration with HMIs, other controllers, and distributed I/O. Supporting up to 16 1769 Compact I/O modules across multiple banks, the L32E provides flexible control for conveyors, process skids, and machinery automation. Note that this legacy processor requires a 1769-BA lithium battery to retain programs and tag data during power loss.

Technical Specifications

Key Features

• Dual Networking: Integrated EtherNet/IP for modern devices, RS-232 for legacy connections.

• Flexible Expansion: Supports up to 16 local 1769 I/O modules across multiple banks.

• Compact Reliability: Ideal for stand-alone machinery or mid-sized automation systems.

• Battery-Backed Memory: Retains programs and tags during power loss using 1769-BA.

Frequently Asked Questions

Q: Does this processor require a battery?
A: Yes, the 1769-L32E requires a 1769-BA lithium battery to maintain memory during outages.

Q: How many I/O modules can this CPU support?
A: Up to 16 modules across 3 banks, respecting the 4-module distance rating from the power supply.

Q: Can I upgrade the memory?
A: No, memory is fixed at 750 KB. For more memory, use the 1769-L35E (1.5 MB) or 1769-L33ER (5370 series).
