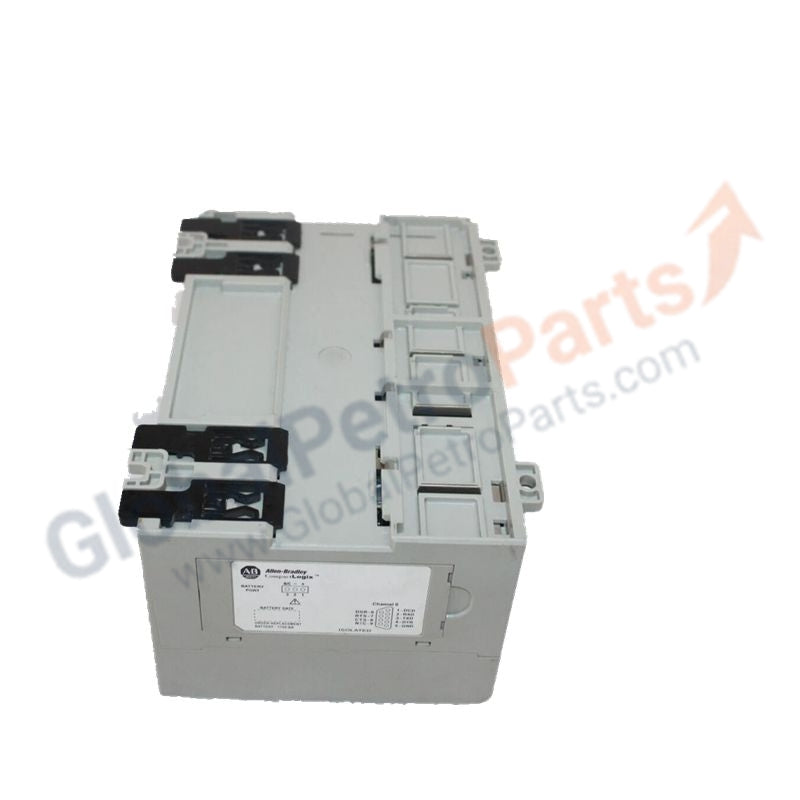

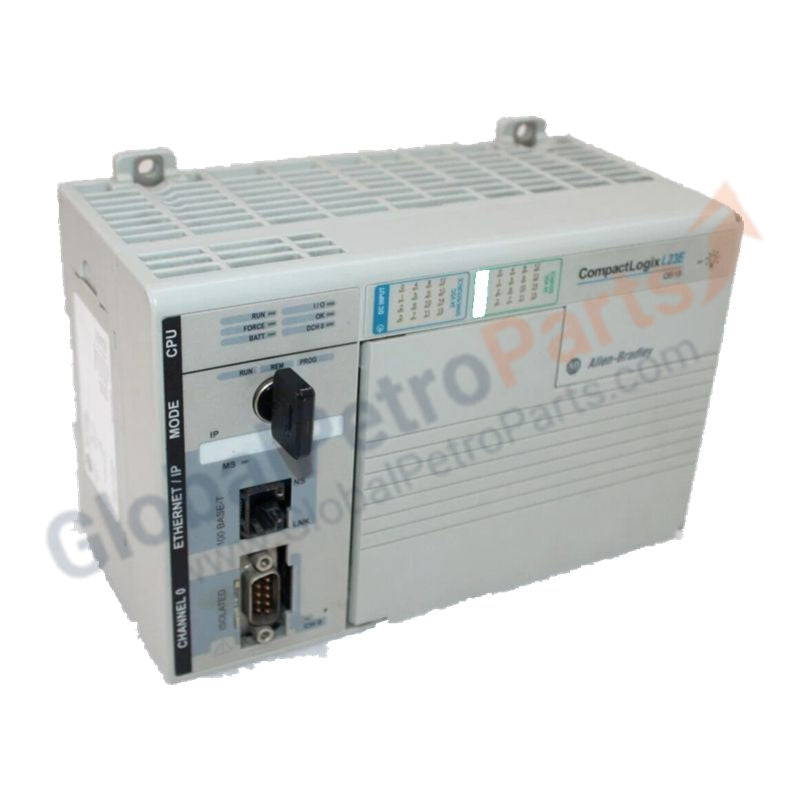

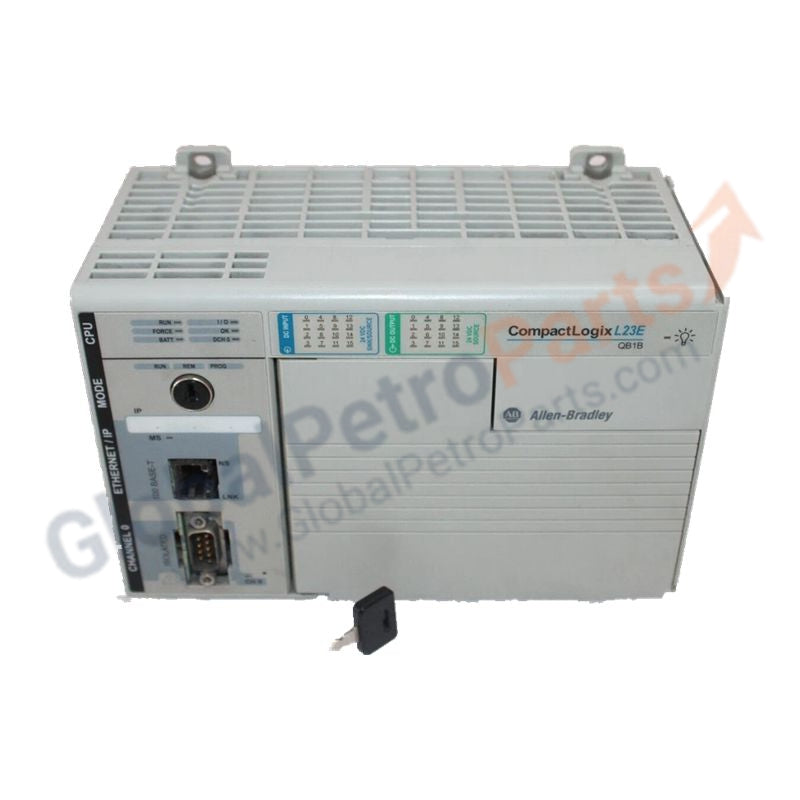

Allen Bradley CompactLogix Packaged CPU 1769-L23E-QB1B
  • Allen Bradley CompactLogix Packaged CPU 1769-L23E-QB1B
  • Allen Bradley CompactLogix Packaged CPU 1769-L23E-QB1B
  • Allen Bradley CompactLogix Packaged CPU 1769-L23E-QB1B
Allen Bradley CompactLogix Packaged CPU 1769-L23E-QB1B

Allen Bradley

Allen Bradley CompactLogix Packaged CPU 1769-L23E-QB1B

10 left

  • Manufacturer: Allen Bradley

  • Product No.: 1769-L23E-QB1B

  • Product Type: CompactLogix Packaged CPU

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1500g

  • Shipping port: Xiamen

  • Warranty: 12 months

Special offer ends!
00 :
00 :
00

Product Description

The 1769-L23E-QB1B is an all-in-one packaged CompactLogix controller combining CPU, built-in 24V DC power supply, and 16/16 high-speed digital I/O in a single chassis. Designed for stand-alone machinery and localized control systems, it delivers Logix performance with minimal footprint and supports EtherNet/IP connectivity alongside legacy RS-232 devices.

Technical Specifications

Item Specification
Model Number 1769-L23E-QB1B
User Memory 512 KB non-volatile
Embedded Digital Inputs 16 × 24 V DC Sink/Source
Embedded Digital Outputs 16 × 24 V DC Source
Communication Ports 1 × EtherNet/IP (10/100 Mbps), 1 × RS-232 (DF1/ASCII)
Local Expansion Up to 2 × 1769 Compact I/O modules
Integrated Power Supply 24 V DC input
Programming Software RSLogix 5000 / Studio 5000 Logix Designer
Mounting DIN rail or panel mount
Operating Temperature 32–140 °F
Dimensions (H×W×D) 118 × 147 × 87 mm

Key Notes

  • No external 1769 power supply required

  • Supports up to 2 expansion I/O modules

  • Single Ethernet port, no DLR support (linear/star topology only)

  • RS-232 port allows connection to legacy HMIs or barcode scanners

  • Ideal for small conveyors, pump skids, and material handling systems
