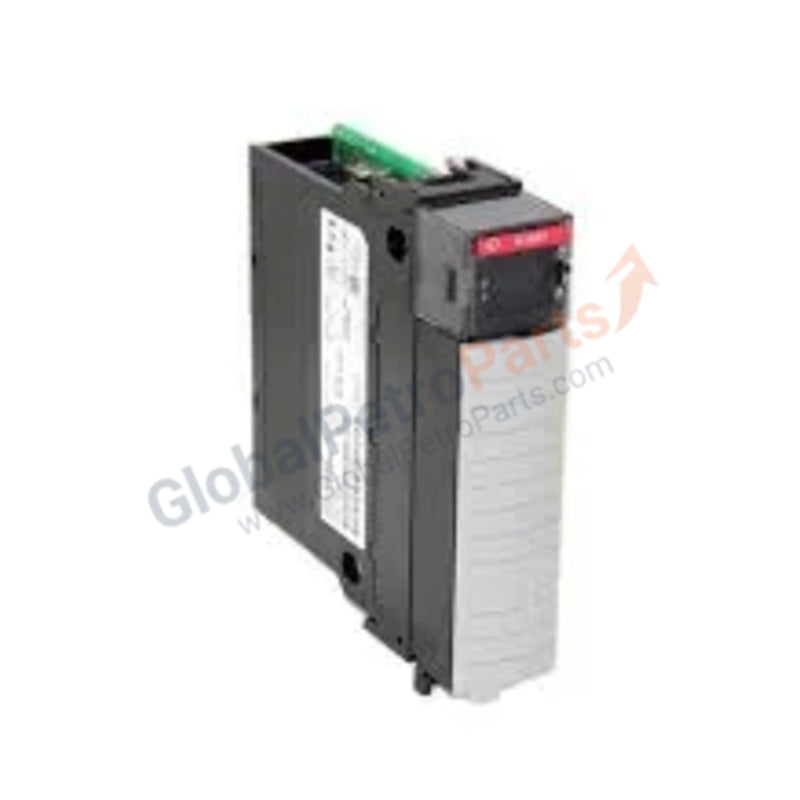

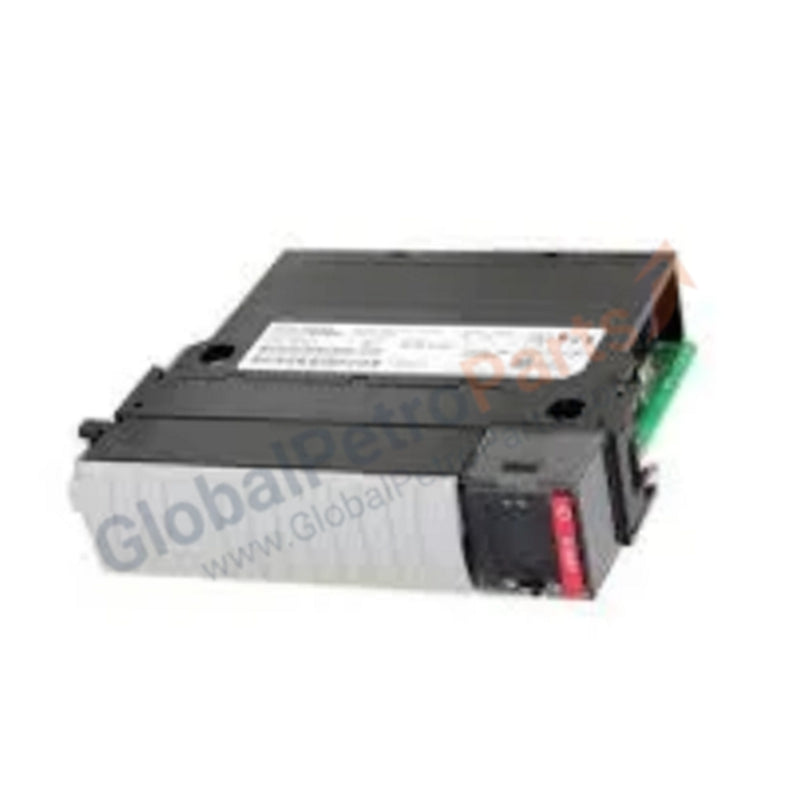

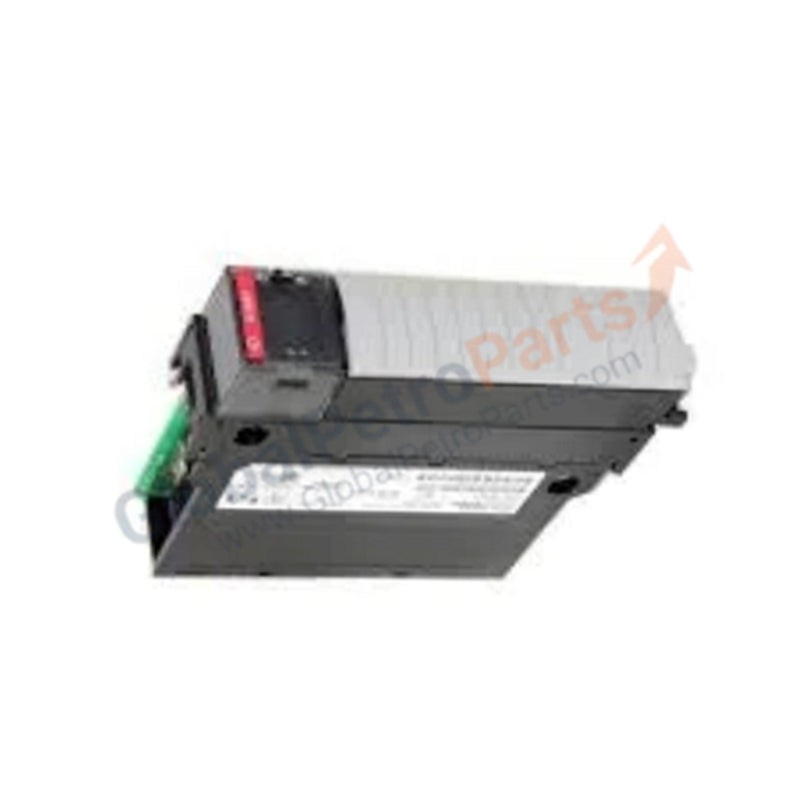

Allen-Bradley E2018/120/00/1/1 Rockwell PLC Control Module

Product Description

The Allen-Bradley E2018/120/00/1/1 from Rockwell Automation is a compact and efficient programmable logic controller (PLC) module designed for advanced industrial automation systems. Built with a high-performance Intel Atom E6600 processor, this module provides fast logic execution and dependable real-time control suitable for demanding applications in manufacturing, energy management, and process automation.

The module features integrated Ethernet, RS-232, and RS-485 communication ports, ensuring reliable data exchange and compatibility with a wide range of network topologies. With support for both panel and DIN-rail mounting, it allows for flexible installation in space-constrained control environments.

Key Specifications

• Manufacturer: Allen-Bradley (Rockwell Automation)

• Model: E2018/120/00/1/1

• Product Type: PLC Control Module

• Processor: Intel Atom E6600

• Clock Speed: 100 MHz

• Memory: 128 KB RAM, 128 KB Flash (optional upgrade: 128 MB RAM, 256 MB Flash)

• I/O Capacity: Up to 2,048 points

• Digital Channels: 8 inputs and 8 outputs

• Scan Time: 0.25 ms per instruction cycle

• Communication Interfaces: Ethernet, RS-232, RS-485

• Mounting Type: Panel or DIN rail

• Operating Voltage: 24 VDC nominal

• Operating Temperature Range: 0°C to 60°C (32°F to 140°F)

Features

• High-speed logic processing: Optimized Intel Atom architecture for responsive automation control

• Versatile communication options: Supports multiple industrial protocols for seamless connectivity

• Compact modular design: Saves space and simplifies panel integration

• Scalable architecture: Handles up to 2,048 I/O points for flexible system expansion

• Industrial-grade reliability: Designed for continuous operation in harsh environments

Application Scenarios

The Allen-Bradley E2018/120/00/1/1 module is ideal for a wide range of industrial automation systems, including:

• Manufacturing line control and coordination

• Energy and power management systems

• Building automation and infrastructure monitoring

• Process control for chemical and material handling industries

FAQs

Q: Does this module support redundant configurations?
A: Redundancy is supported through networked PLC configurations with compatible Rockwell components.

Q: Can the memory be expanded for higher data capacity?
A: Yes, certain versions support extended memory configurations up to 128 MB RAM and 256 MB Flash.

Q: Is programming done through standard Rockwell software?
A: Yes, it can be programmed using Rockwell Automation’s standard PLC programming environment such as RSLogix or Studio 5000.
