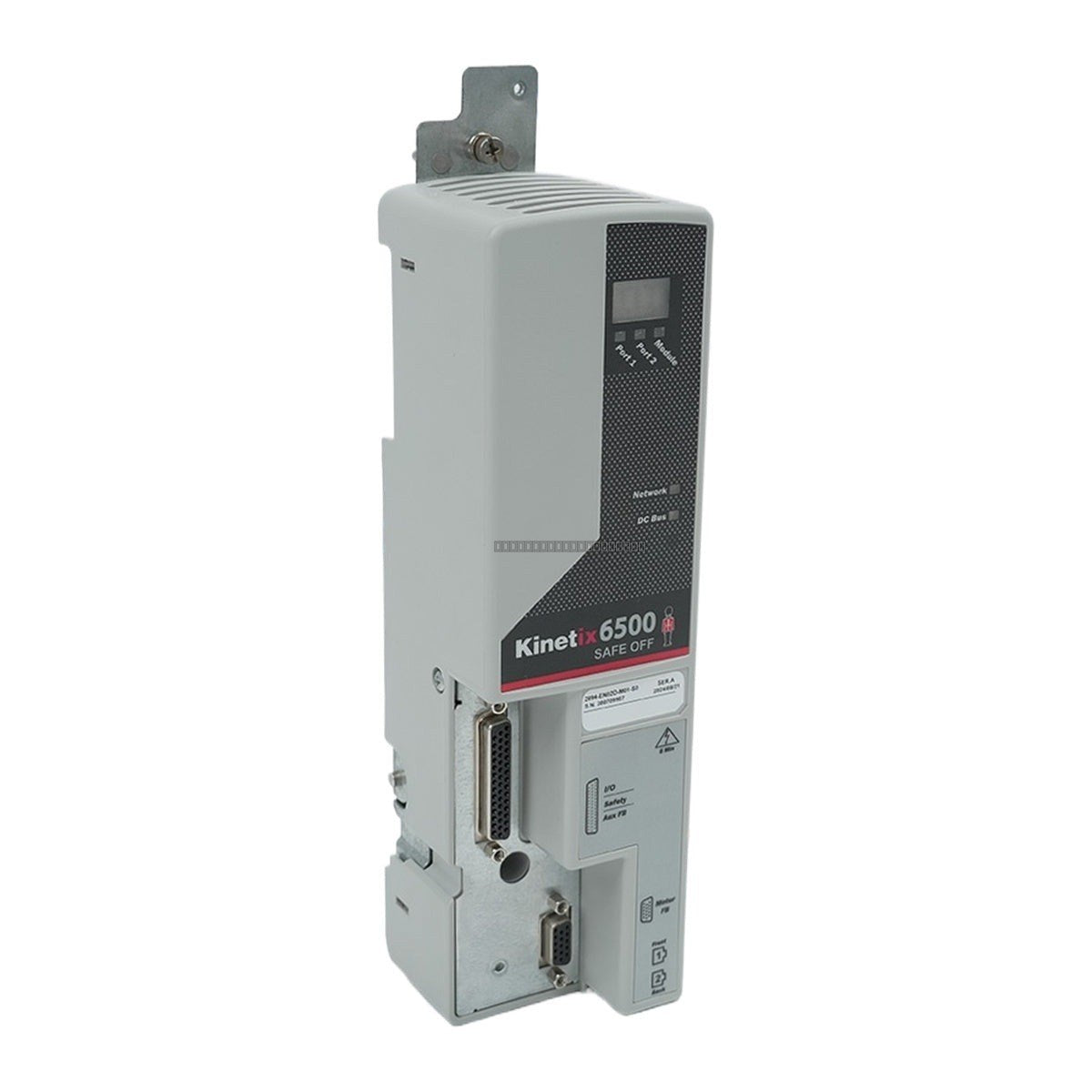

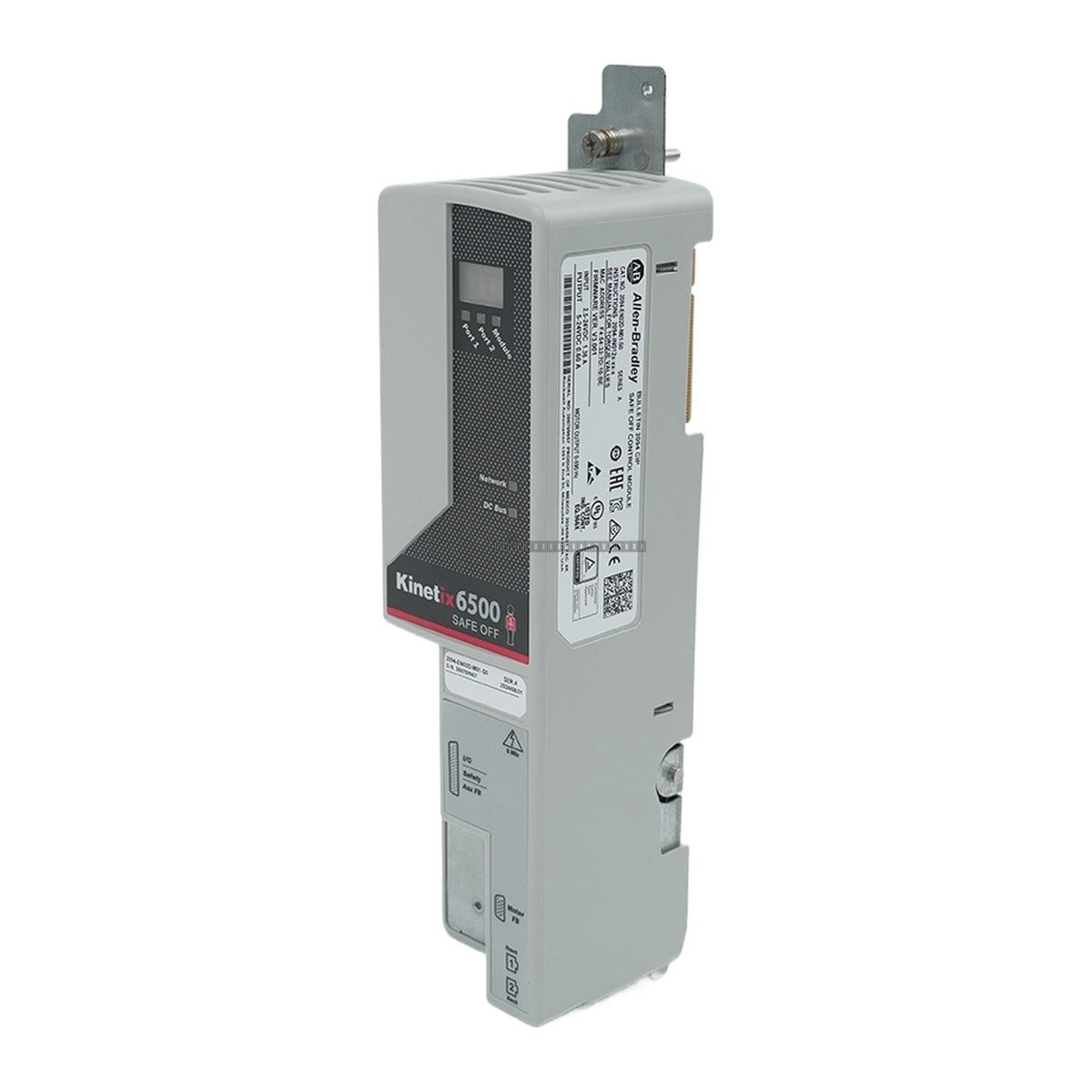

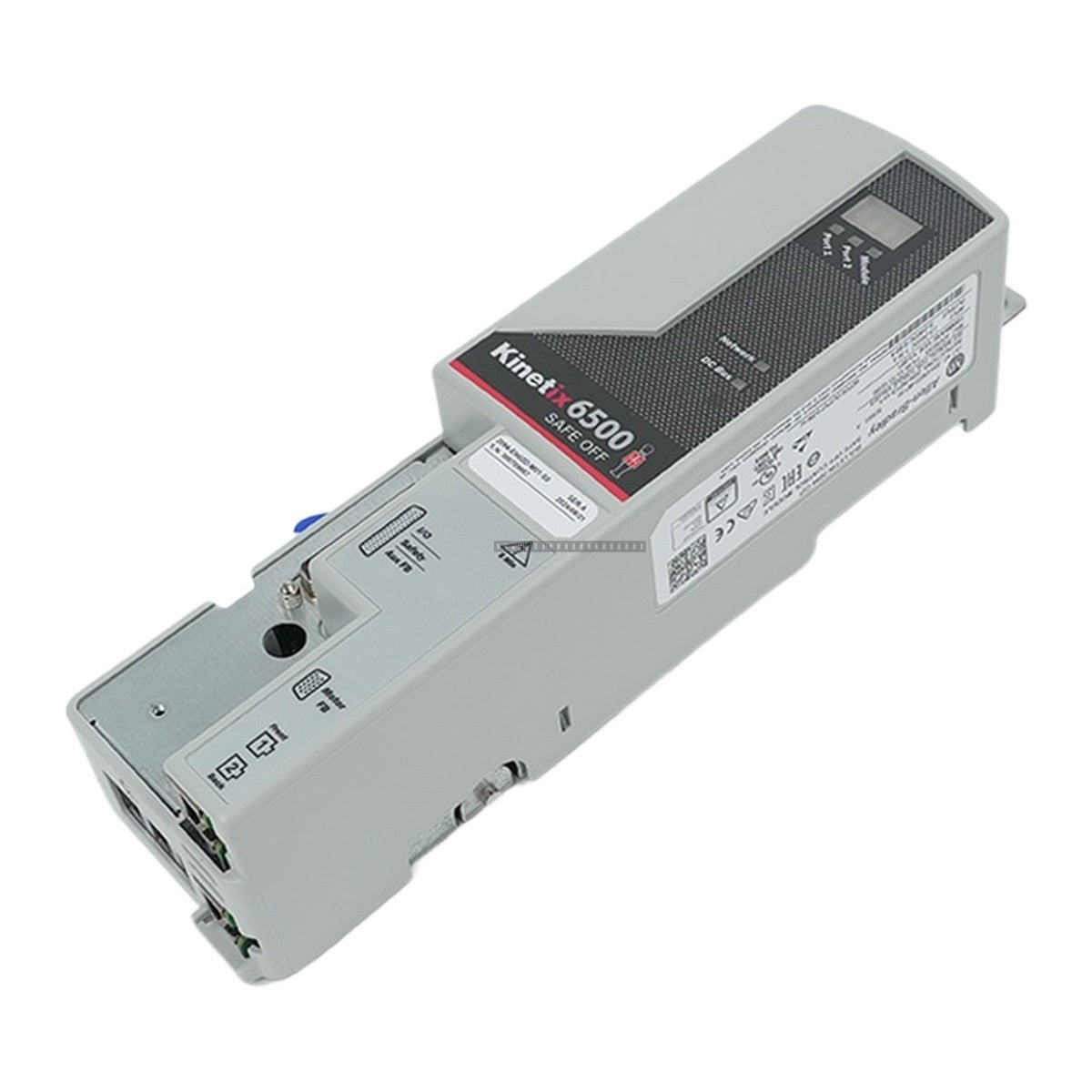

Allen-Bradley 2094-EN02D-M01-S0 Kinetix 6500 EtherNet/IP Safe Torque-Off Control Module

Description

The Allen-Bradley 2094-EN02D-M01-S0 is an EtherNet/IP Safe Torque-Off (STO) Control Module designed for the Kinetix 6500 modular multi-axis servo drive system. This module serves as the primary control interface for Integrated Axis Modules (IAM) and Axis Modules (AM), facilitating motor feedback, auxiliary feedback, user I/O, and advanced safety functionality. By utilizing CIP Motion and CIP Sync technology, it enables high-performance, multi-axis motion control over standard EtherNet/IP networks, reducing system complexity and cabling requirements.

Features

• EtherNet/IP network communication with dual RJ-45 ports supporting ring, line, and star topologies.
• Integrated Safe Torque-Off (STO) functionality, certified to SIL 3 / PL e.
• Supports a wide range of motor feedback types including Hiperface, EnDat, TTL incremental, and Sin/Cos incremental.
• Four-character alphanumeric status display and comprehensive LED diagnostics for network, module, and DC bus health.
• Seamless integration with Logix5000 controllers via Studio 5000 Logix Designer or RSLogix 5000.
• Auto-configuration capabilities for intelligent absolute and high-resolution encoders.

Applications

• Automotive: Robotic assembly lines, welding cells, and conveyor systems.
• Packaging: High-speed filling, wrapping, cartoning, and bottling machinery.
• Material Handling: Automated Storage and Retrieval Systems (ASRS) and sorting lines.
• Food and Beverage: Multi-axis pick-and-place and processing equipment.
• Printing and Converting: Web-handling, tension control, and cutting tools.

Technical Specifications

Installation Guidelines

• De-energize: Ensure all input power to the IAM or AM power module is completely disconnected before installation or removal.
• Mounting: Hang the module from the power rail slot and align the guide pins with the power module.
• Seating: Pivot the module downward and press firmly until it is fully seated against the rail connectors.
• Fastening: Secure the module using the captive screw, tightening to 1.1 N-m (10 lb-in) torque.
• Handling: Observe standard ESD precautions when handling the module to prevent damage to internal circuitry.

FAQ

What is the 2094-EN02D-M01-S0?

The 2094-EN02D-M01-S0 is an EtherNet/IP control module for Kinetix 6500 drives, providing network connectivity and Safe Torque-Off (STO) safety features.

Does it support Safe Torque Off (STO)?

Yes, the module includes integrated STO functionality certified to SIL 3 and PL e safety standards.

What communication protocols are supported?

It supports EtherNet/IP networking, utilizing CIP Motion and CIP Sync for high-performance, synchronized motion control.
