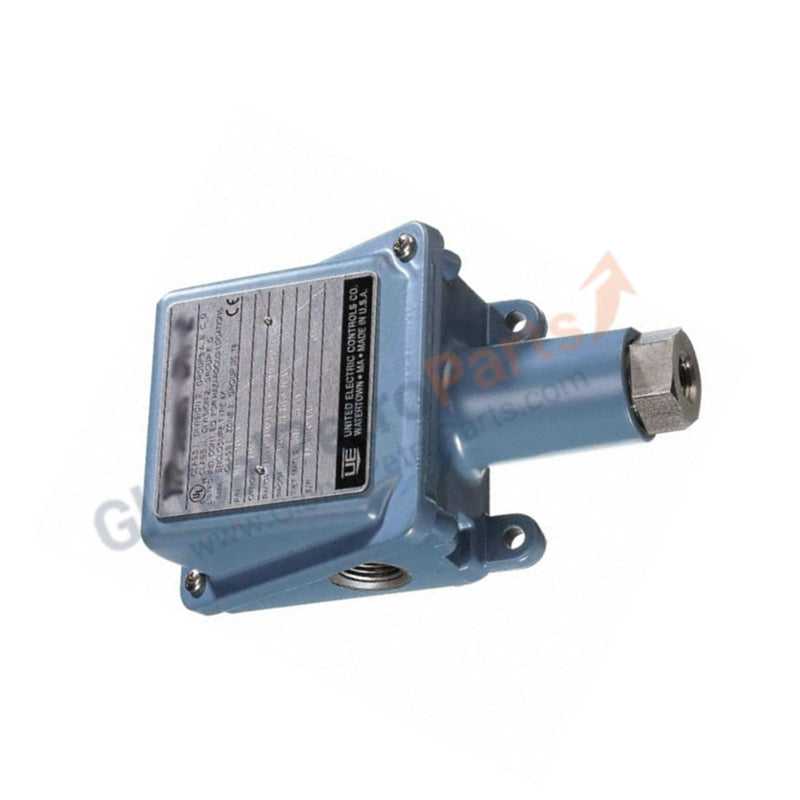

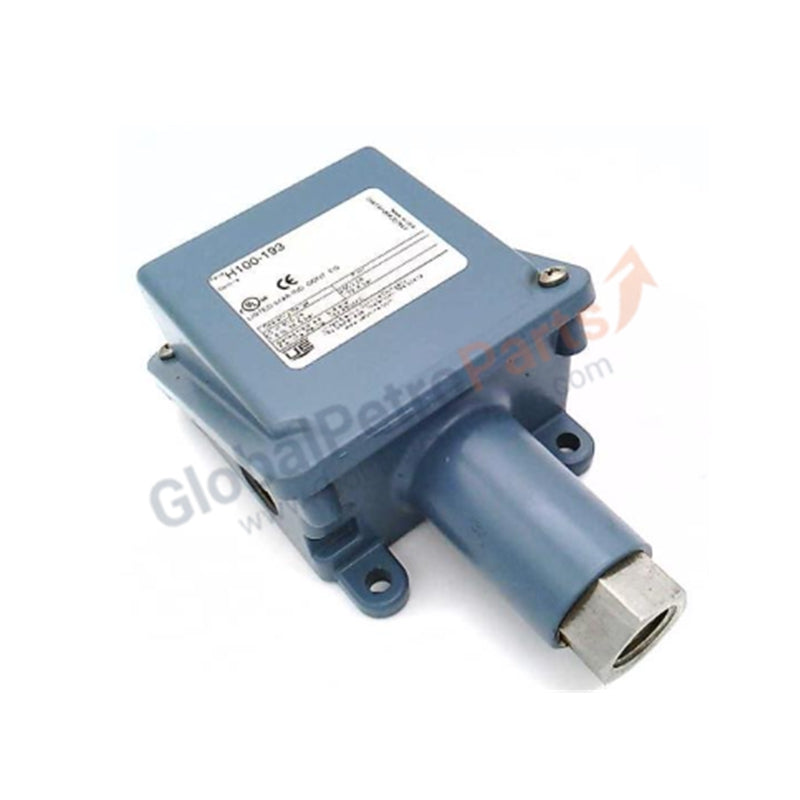

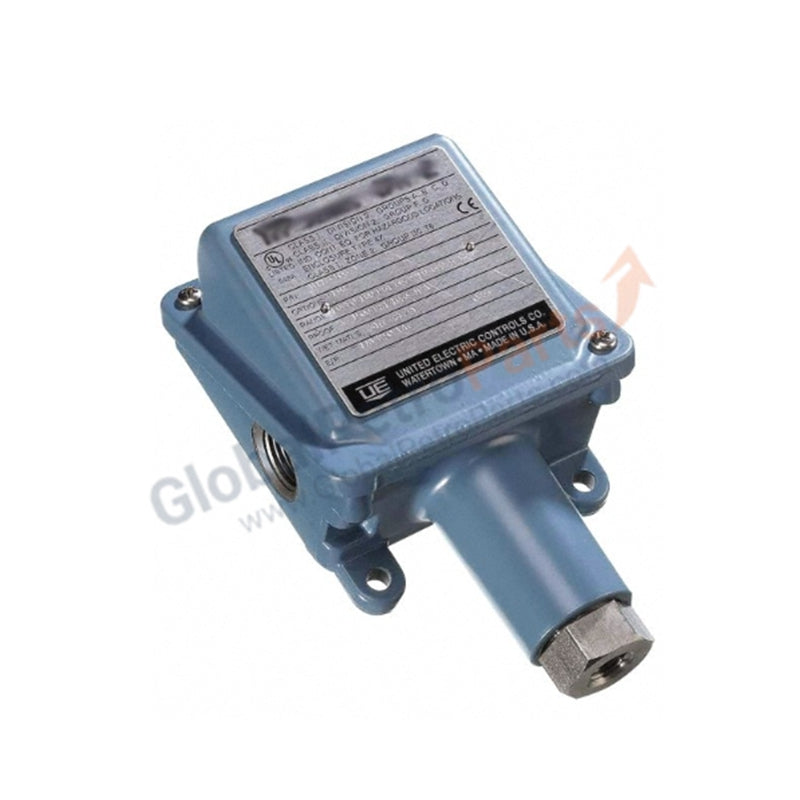

Allen-Bradley UNITED H100-193 General Purpose Diaphragm Pressure Switch

Product Description

The H100193 is a versatile diaphragm pressure switch engineered for general-purpose applications. It provides reliable pressure monitoring and control across a wide range of systems, with an adjustable setpoint from 20 PSI to 500 PSI.

This switch features dual SPDT contacts for flexible circuit integration and robust electrical compatibility, supporting AC voltages of 125V, 250V, and 480V, as well as DC operation at 24–30V and 125V. The unit is fitted with a 1/2" NPTF threaded connection, ensuring secure installation in various process lines.

While the factory warranty may not apply, this product includes a Radwell two-year warranty, providing peace of mind for industrial and commercial installations.

Technical Specifications

• Model: H100193

• Product Type: Diaphragm Pressure Switch

• Pressure Range: 20–500 PSI

• Thread Size: 1/2" NPTF

• Electrical Ratings:

• AC: 125V, 250V, 480V

• DC: 24–30V, 125V

• Contact Type: 2 × SPDT

• Mounting: Threaded process connection

Features

• Adjustable general-purpose pressure switch

• Dual SPDT contacts for flexible integration

• Wide AC and DC voltage compatibility

• Compact and durable design for industrial use

• Radwell-backed warranty ensures reliability

Application Scenarios

Ideal for pump control, hydraulic and pneumatic systems, compressors, and industrial machinery monitoring where accurate pressure detection is critical.

FAQs

Q: What is the pressure range of the H100193?
A: It operates between 20 PSI and 500 PSI.

Q: Can it be used with both AC and DC circuits?
A: Yes, it supports AC (125V–480V) and DC (24–30V & 125V).

Q: What type of contacts does it have?
A: It uses two SPDT contacts for versatile switching applications.
