AMN32 | Yokogawa Nest for Connector I/O Module

Product Overview

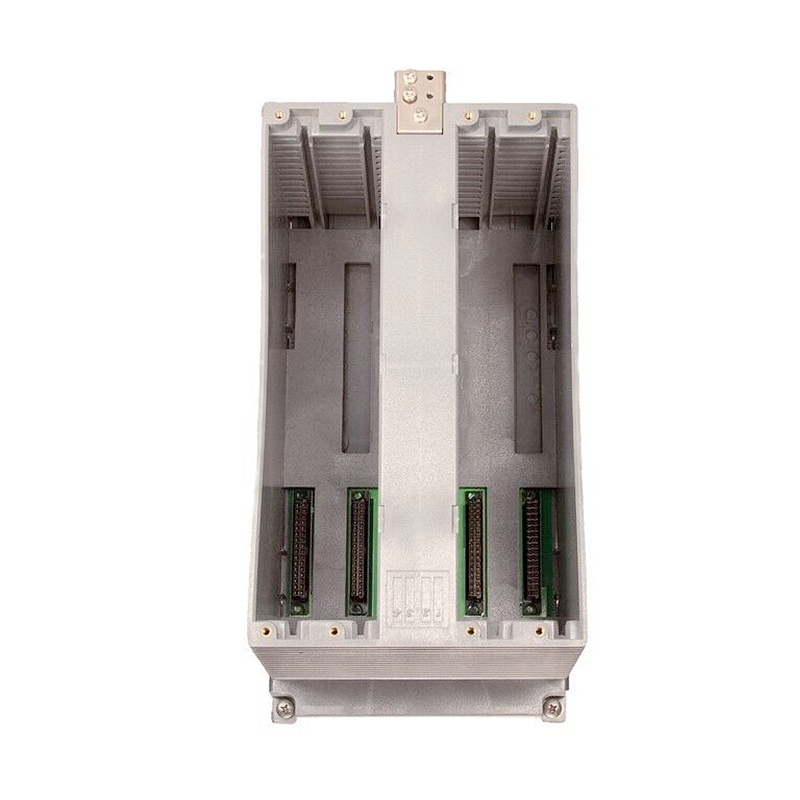

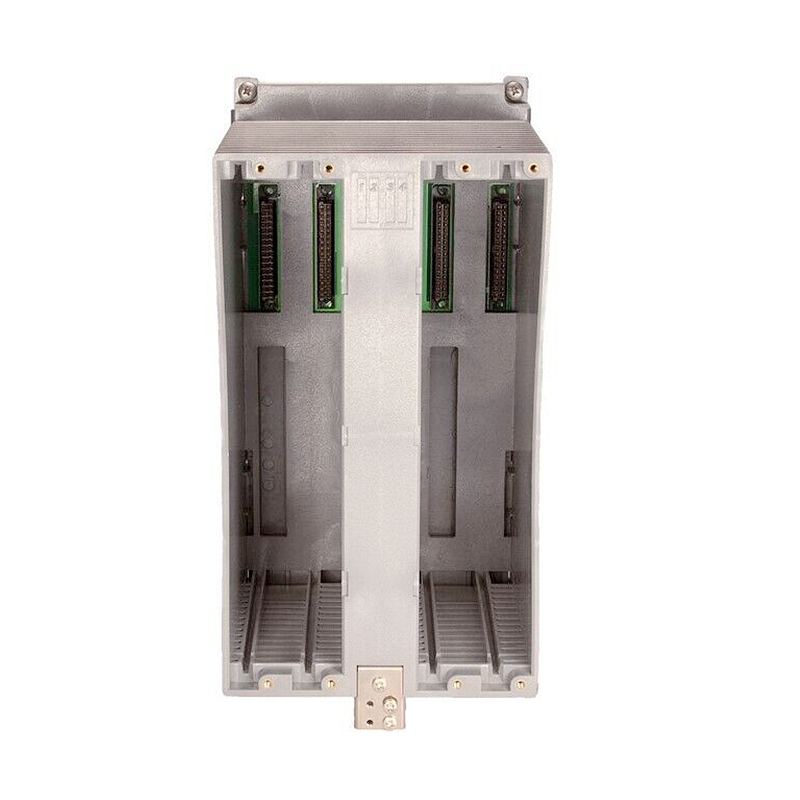

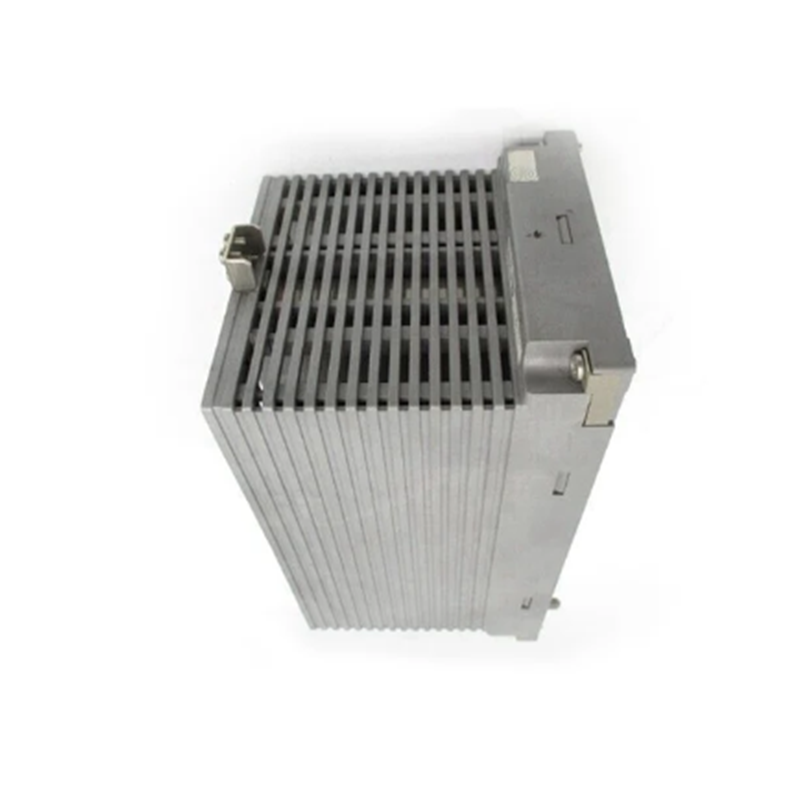

The Yokogawa AMN32 is an I/O Module Nest for Connector-Type I/O Modules in the CENTUM CS/VP RIO system. It accommodates digital and multiplexer modules with connector-type wiring (KS cable interface), providing a compact, high-density solution for applications requiring quick disconnect and reduced wiring time. The AMN32 is ideal for installations with frequent module changes or space-constrained cabinets.

Key Specifications

• Model: AMN32
• Type: I/O Module Nest for Connector-Type I/O Modules
• Compatible Modules: AMM12C, AMM22C, AMM25C, AMM32C, AMM32CJ, ADM11C, ADM12C, ADM51C, ADM52C
• Connection Type: KS cable interface (connector type)
• Power Supply: 5.0 VDC from node interface unit
• Mounting: Node Interface Unit or I/O Expansion Rack

Environmental Specifications

• Operating Temperature: 0°C to +50°C
• Relative Humidity: 5% to 95% RH (non-condensing)
• Storage Temperature: -20°C to +70°C

Installation Guide

1. Mount the AMN32 in the node interface unit or expansion rack.
2. Install connector-type I/O modules into the nest slots.
3. Connect KS cables between the module connectors and terminal boards.
4. Route field signal cables to the terminal boards using M4 screws.
5. Verify module detection and signal integrity via CENTUM VP diagnostics.

FAQ

• Q: What is the advantage of connector-type over terminal-type?
  A: Connector-type modules allow faster installation and replacement using KS cables, reducing wiring time and maintenance downtime.
• Q: What KS cables are required?
  A: KS2, KS3, KS9, or KS10 cables depending on the module type; consult Yokogawa wiring manuals for specific cable selections.
• Q: Can terminal-type modules be used in AMN32?
  A: No, AMN32 is specifically for connector-type modules; use AMN31 for terminal-type modules.
• Q: Is AMN32 suitable for hazardous areas?
  A: The nest itself is not rated for hazardous areas; use appropriate barriers or intrinsically safe modules for such applications.

Selection Tips

• Choose AMN32 for high-density digital or multiplexer applications where quick module replacement is prioritized.
• Ensure compatible KS cables and terminal boards are ordered with the nest for complete installation.
• Consider AMN31 for terminal-type modules if direct M4 screw wiring is preferred.
