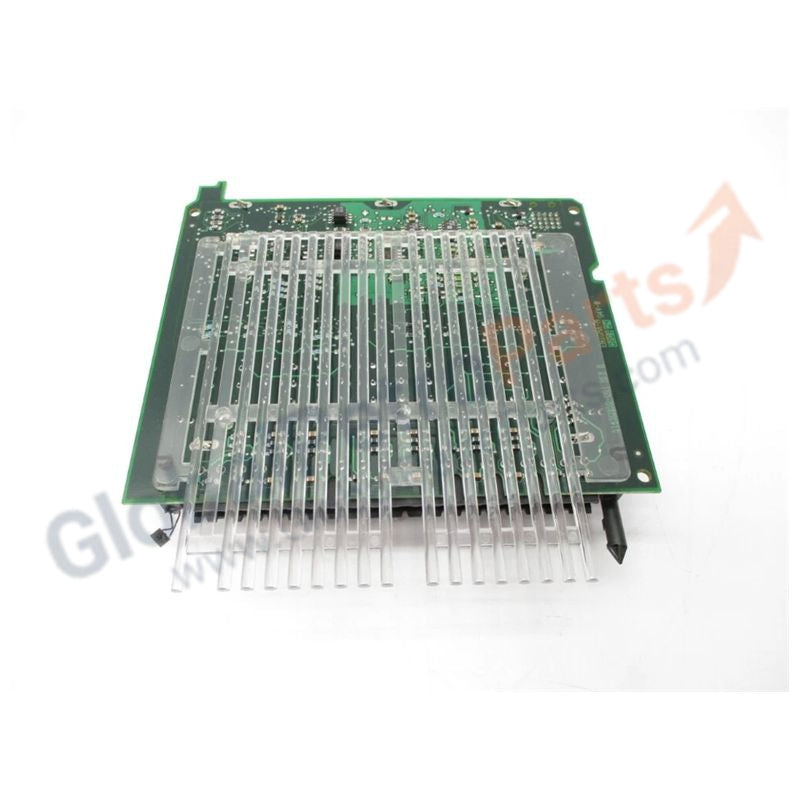

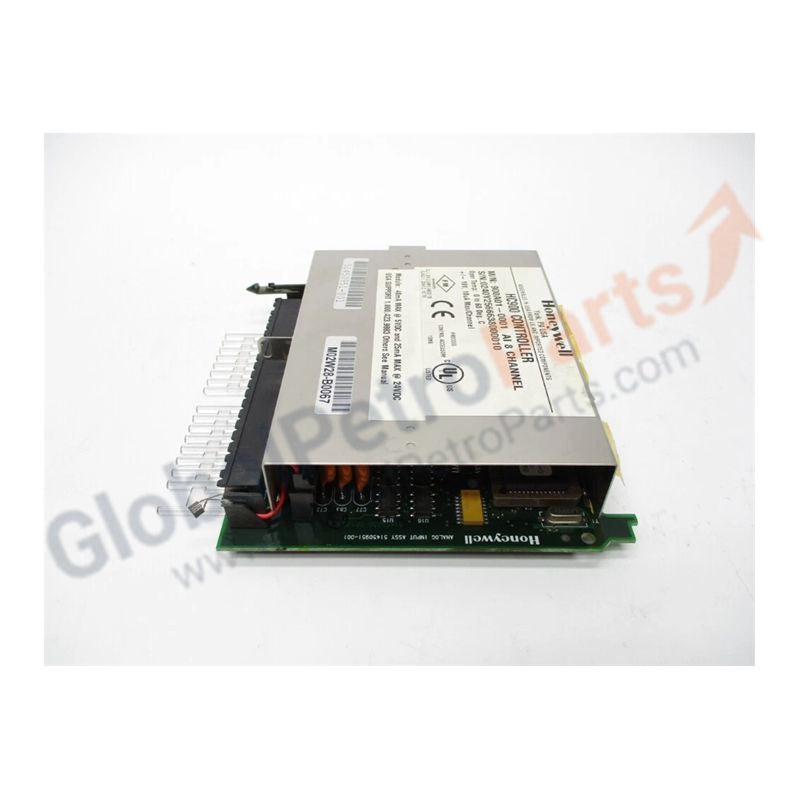

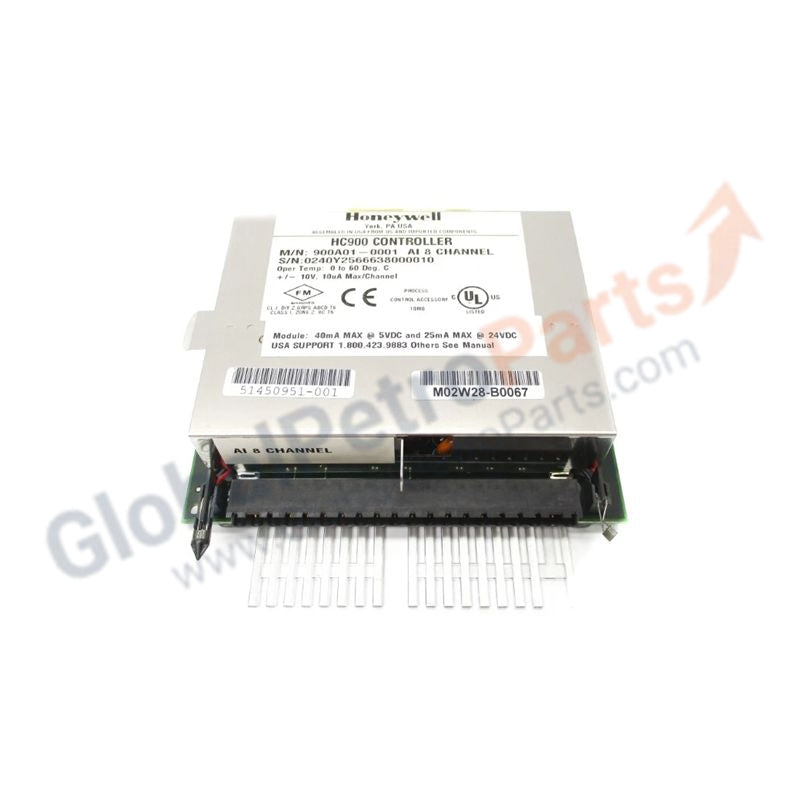

Analog Input Module 900A01-0001 Honeywell

Product Description

The 900A01-0001 is a high-density universal analog input module designed for the Honeywell HC900 Control System. It provides eight independent channels capable of interfacing with a wide range of sensor types—including thermocouples, RTDs, and standard voltage/current transmitters—without the need for external signal conditioning.

This module performs internal linearization, cold-junction compensation, and galvanic isolation, ensuring precise digital acquisition for critical process applications. Its flexibility makes it ideal for thermal processing, pharmaceutical manufacturing, water treatment, and HVAC control, where multiple sensor types coexist within a single I/O rack.

Technical Specifications

Application Scenarios

• Thermal Processing: Monitoring high-temperature furnaces with multiple thermocouple types.

• Environmental Monitoring: Measuring temperature and humidity via RTDs and voltage sensors in cleanrooms.

• Chemical Dosing: Tracking 4–20 mA flow and level signals for precise reagent control.

• HVAC Systems: Multi-point temperature sensing for industrial chilling and heating units.

Frequently Asked Questions

Does this module require a separate terminal block?
Yes. The 900A01-0001 requires a 20-terminal Remote Termination Panel (RTP) or a Euro-style terminal block (e.g., part number 900TE1-0001) for field wiring.

Can different input types be mixed on the same module?
Absolutely. Each channel is independently configurable through HC900 Designer software, allowing, for example, a thermocouple on Channel 1 and a 4–20 mA transmitter on Channel 2.
