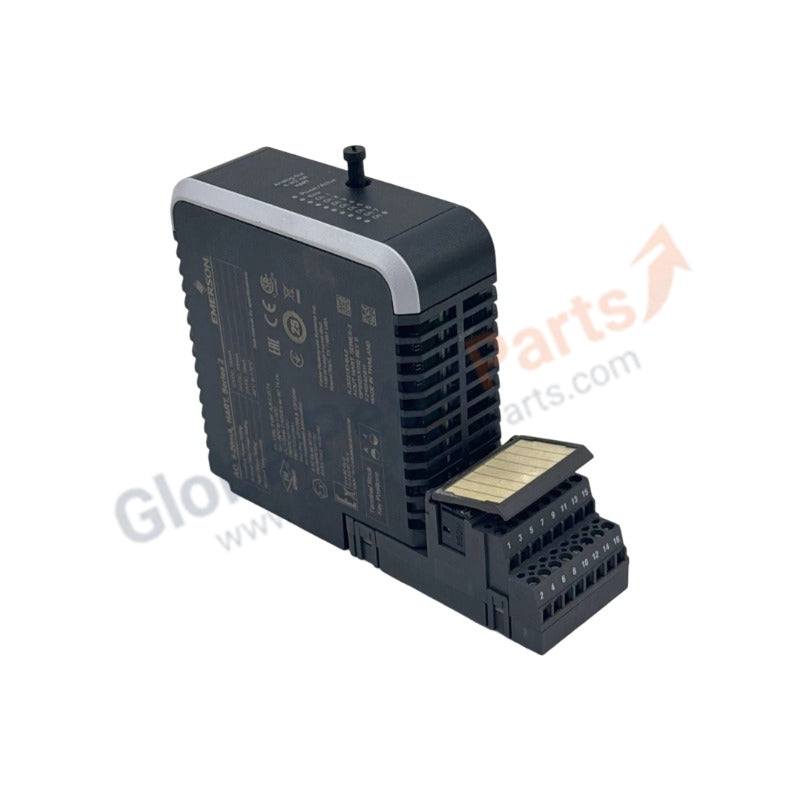

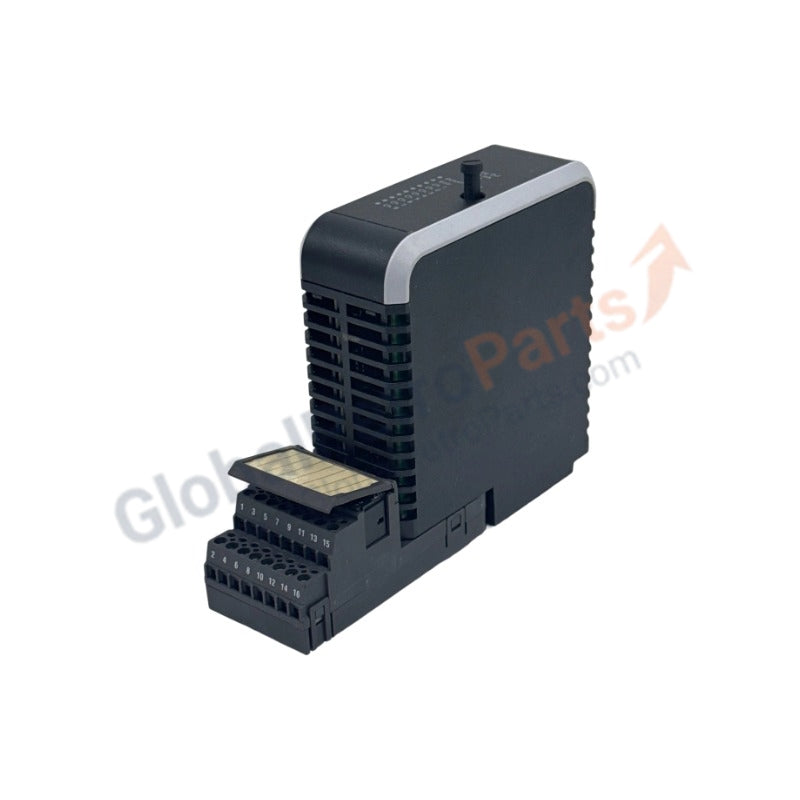

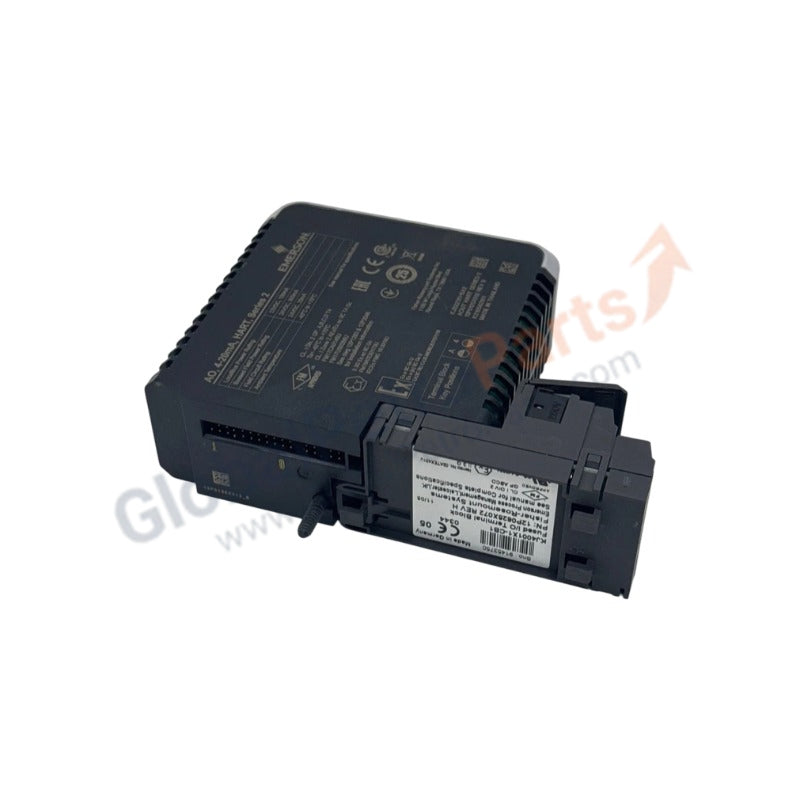

AO CARD SERIES 2 M-SERIES Emerson DeltaV KJ3221X1-BA3
  • AO CARD SERIES 2 M-SERIES Emerson DeltaV KJ3221X1-BA3
  • AO CARD SERIES 2 M-SERIES Emerson DeltaV KJ3221X1-BA3
  • AO CARD SERIES 2 M-SERIES Emerson DeltaV KJ3221X1-BA3
AO CARD SERIES 2 M-SERIES Emerson DeltaV KJ3221X1-BA3

Emerson

AO CARD SERIES 2 M-SERIES Emerson DeltaV KJ3221X1-BA3

10 left

  • Manufacturer: Emerson

  • Product No.: KJ3221X1-BA3

  • Product Type: AO CARD SERIES 2 M-SERIES

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 200g

  • Shipping port: Xiamen

  • Warranty: 12 months

Special offer ends!
00 :
00 :
00

Product Overview

The Emerson KJ3221X1-BA3 module provides precise analog output control for DeltaV distributed control systems.
It delivers eight independent 4–20 mA output channels and supports HART communication for advanced device interaction.

Moreover, the KJ3221X1-BA3 module ensures stable signal transmission and maintains accuracy across demanding industrial environments.
Engineers prefer this module because it enhances process control and supports reliable field device communication.

Technical Specifications

Parameter Specification
Model KJ3221X1-BA3
Manufacturer Emerson
Series DeltaV M-Series / Series 2
Module Type Analog Output Module (AO Card)
Output Channels 8 independent channels
Output Signal 4–20 mA analog
HART Support Yes, HART communication enabled
Output Resolution High-resolution digital-to-analog conversion
Accuracy ±0.1% of span
Load Resistance Up to 750 Ω typical
Update Rate Fast analog signal update
Isolation Channel-to-channel isolation
Field Power External loop-powered devices supported
LocalBus Power 12 VDC via DeltaV backplane
Power Consumption Approx. 6 W typical
Diagnostic Features Continuous self-monitoring and fault detection
Output Protection Overload and short circuit protection
Hazardous Certification ATEX Zone 2 compliant
Protection Type Non-sparking design
IP Rating IP20
Operating Temperature 0°C to 60°C
Storage Temperature -40°C to +85°C
Humidity 5% to 95% non-condensing
Shock Resistance 10 g, 11 ms half-sine
Vibration Resistance 1 mm (5–16 Hz), 0.5 g (16–150 Hz)
Air Contaminants ISA-S71.04 Class G3
Mounting DeltaV I/O carrier
Interface DeltaV LocalBus communication
Dimensions Compact card form factor
Cooling Method Passive airflow cooling



FAQ

Q1: Is the Emerson KJ3221X1-BA3 module new and original?
Yes, the KJ3221X1-BA3 module is brand new and original from Emerson.

Q2: Do you have stock available?
Yes, we keep the Emerson KJ3221X1-BA3 module in stock for immediate shipment.

Q3: How long does shipping take?
We ship within 3 days to 2 weeks depending on order quantity and logistics arrangements.

Q4: Which logistics services do you use?
We commonly use DHL and other global carriers for fast and secure delivery services.

Q5: What is your return policy?
We support returns within 30 days if any quality issues occur with the KJ3221X1-BA3 module.

Q6: Does this module support HART communication?
Yes, the KJ3221X1-BA3 module supports HART protocol for smart device communication and diagnostics.
Return policy

​We aim to provide reliable products and a smooth purchasing experience. If there is a problem with your order, please contact us and we will assist according to our Refund Policy.
Shipping

We provide international shipping options to meet different delivery requirements. Please review details regarding methods and timelines in our Shipping Policy.
Warranty

We provide a 12-month warranty for all products, subject to normal use and proper installation.
