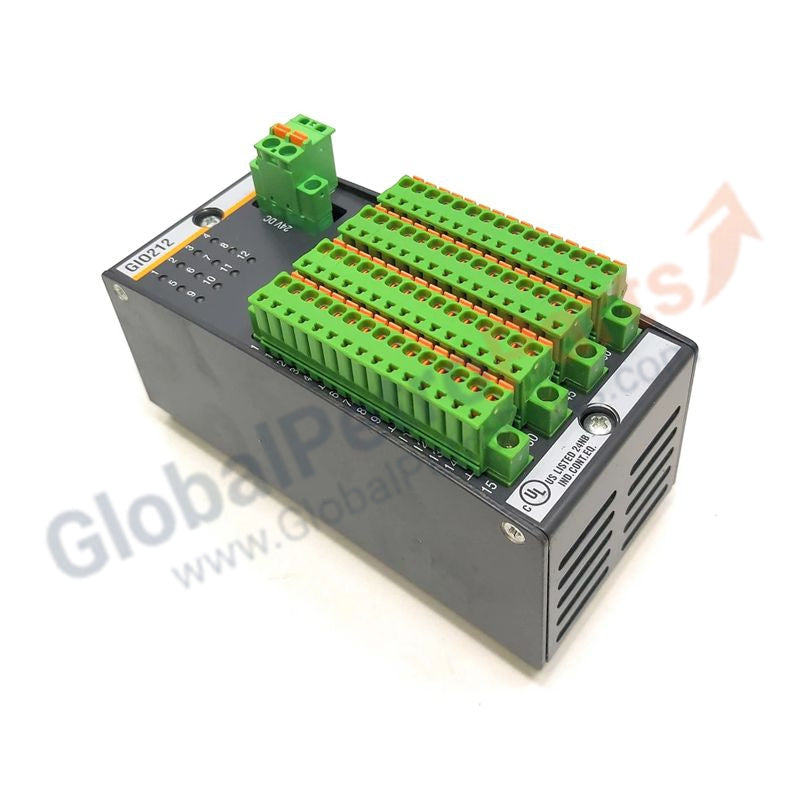

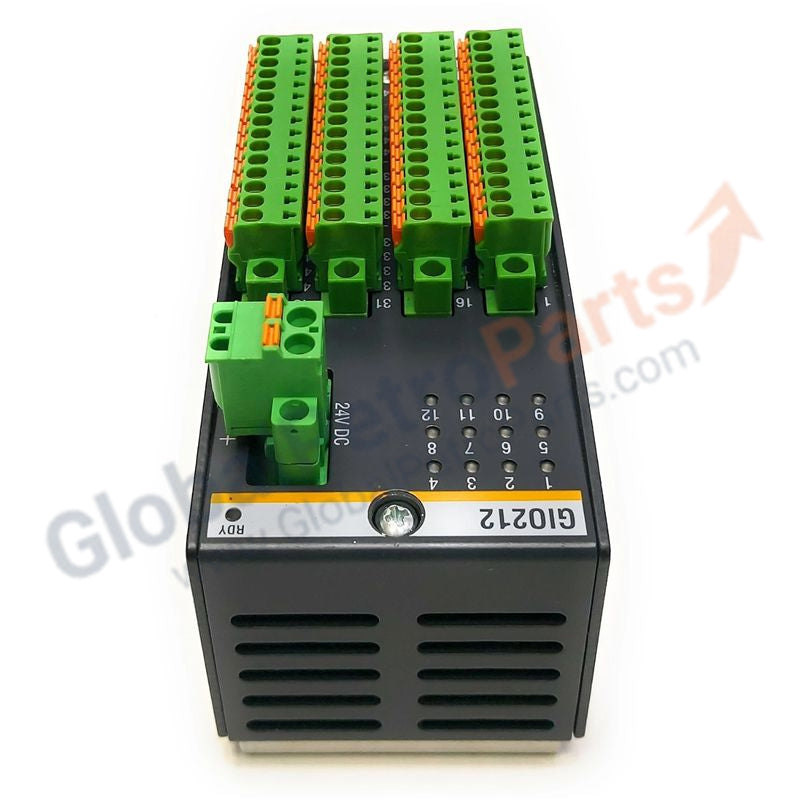

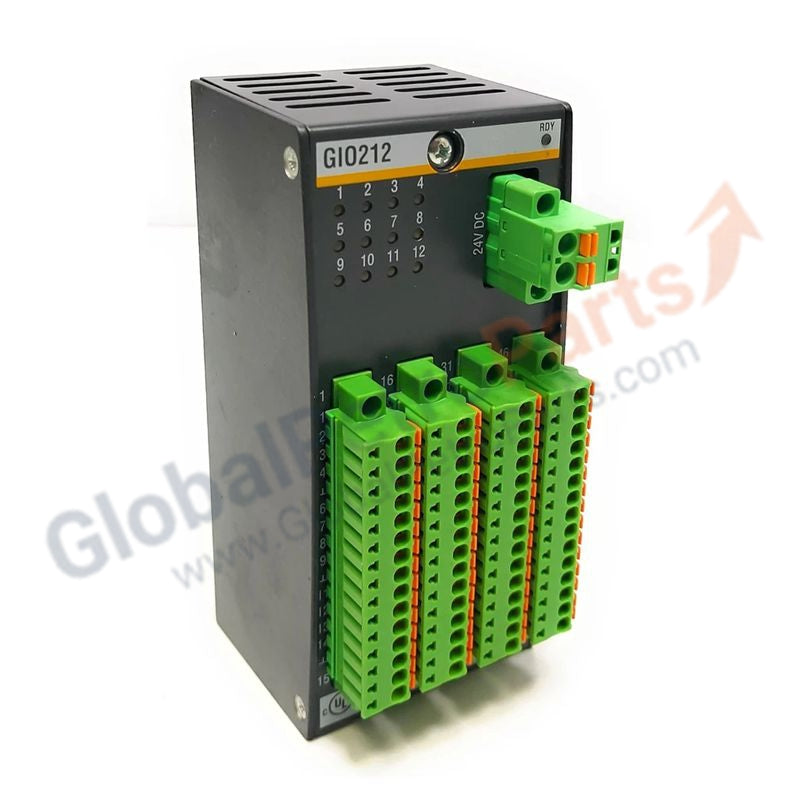

Bachmann GIO212 Universal Input/Output Module

Product Description

The GIO212 (Part Number: 00016625-00) is a high-density, software-configurable I/O module that significantly reduces system complexity by eliminating the need for multiple dedicated I/O cards. Featuring 12 fully universal channels, it supports a wide range of signal types—from high-accuracy temperature measurement to high-speed digital and motion control—within a single compact hardware platform.

Each channel is independently configurable, enabling flexible mixed-signal applications while simplifying system architecture and spare parts management.

Technical Specifications

General Characteristics

The GIO212 (00016625-00) is designed for high-availability and safety-critical environments. All digital outputs are short-circuit protected and continuously monitored. The integrated read-back function enables real-time verification of actuator states, improving fault detection and functional safety.

Software-based configuration via Bachmann SolutionCenter enables rapid commissioning, flexible reconfiguration, and reduced spare parts inventory.

Frequently Asked Questions

How does the module handle signals that do not use the full measurement range?
The 16-bit resolution ensures high granularity even when signals such as 0–5 V are mapped to wider ranges like ±10 V.

Can the GIO212 replace a dedicated motion control card?
Yes. For stepper motors and frequency-controlled drives, the FIFO-supported frequency profile mode enables precise pulse-train generation without additional CPU load.
