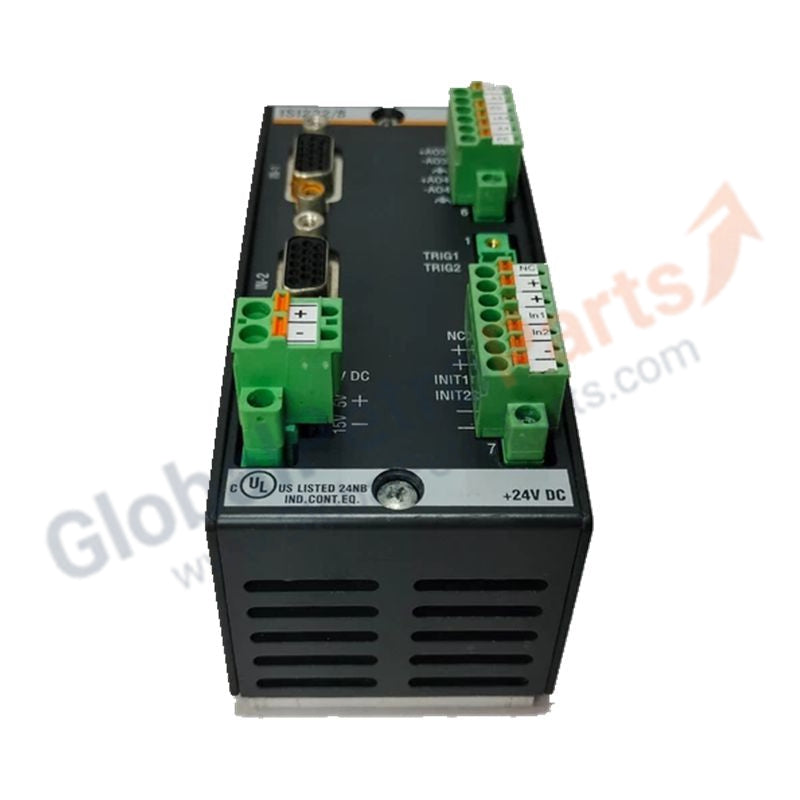

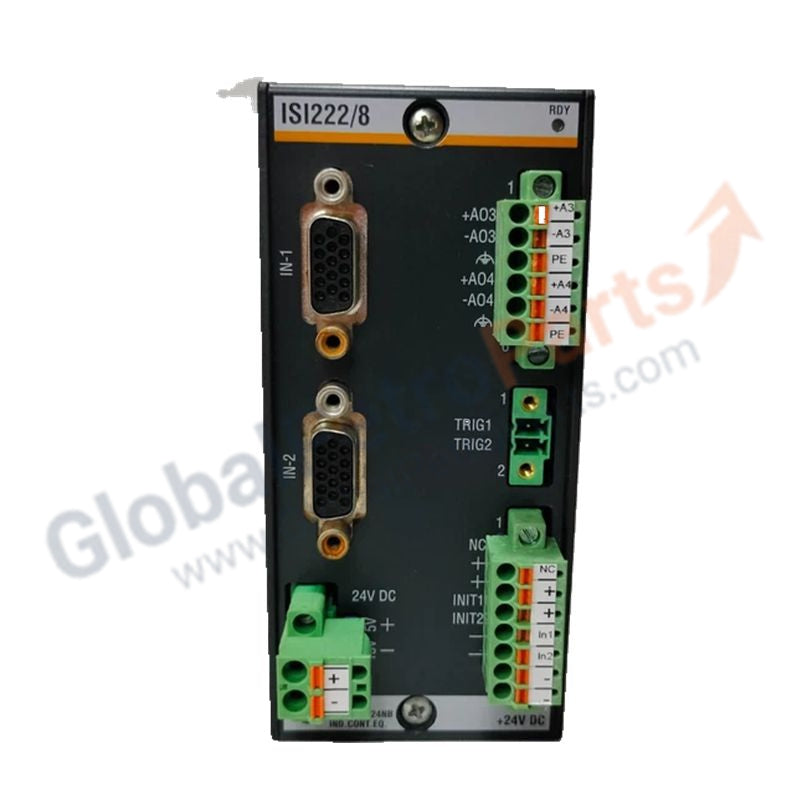

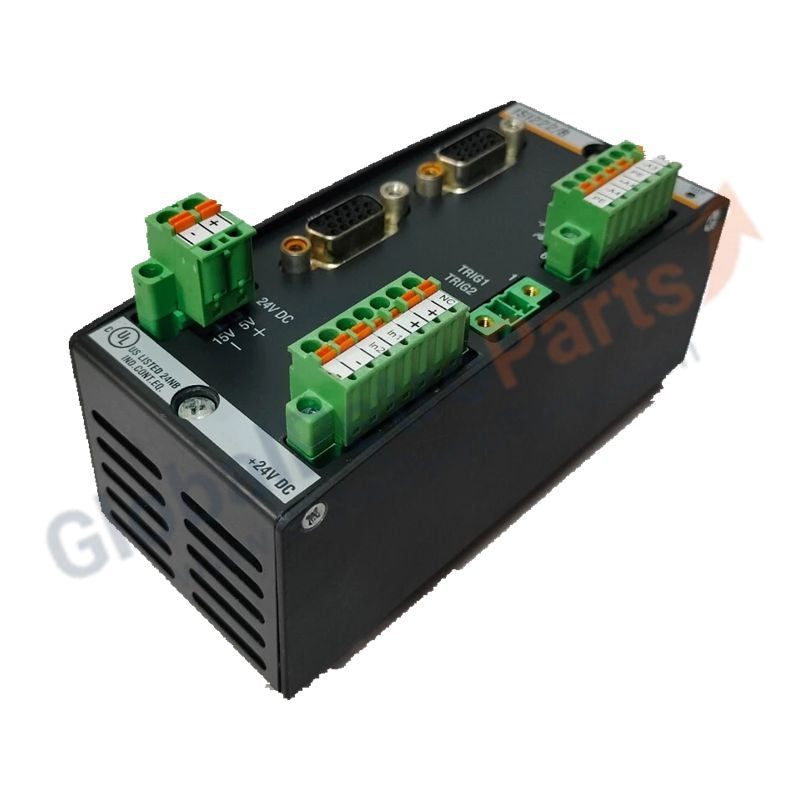

Bachmann ISI222/8 Positioning Module

Product Description

The ISI222/8 is a high-speed motion control expansion for the Bachmann M1 system. It integrates dual incremental encoder interfaces with high-resolution analog outputs, enabling ultra-fast positioning and synchronous movement. Ideal for CNC machinery, precision winding, and multi-axis robotics, it ensures precise, jitter-free control in closed-loop applications.

Technical Specifications

Advanced Motion Capabilities

• High-speed closed-loop control for precision applications

• SYNC / PreSYNC signals enable jitter-free multi-module coordination

• Hardware-level timing ensures phase-accurate movement for quality production

Product FAQ

Q: What types of encoders are compatible?
A: Supports incremental encoders with selectable +5 V, +15 V, or +24 V supplies.

Q: How does the "Fast Trigger" input help?
A: The 4 fast digital inputs allow instant capture of encoder positions, bypassing standard PLC scan delays for maximum accuracy in measurement or cut-to-length tasks.
