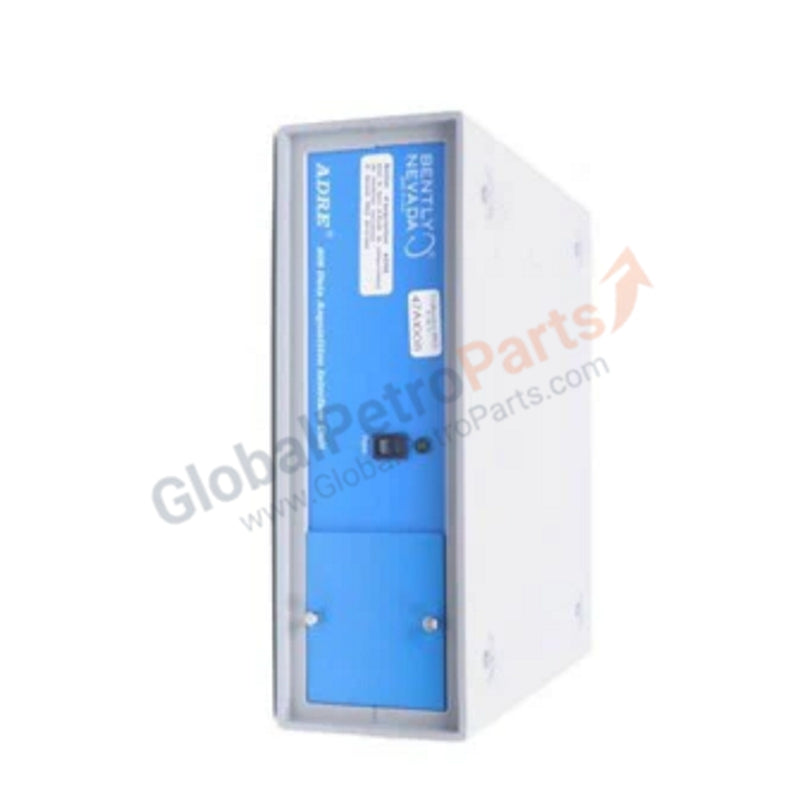

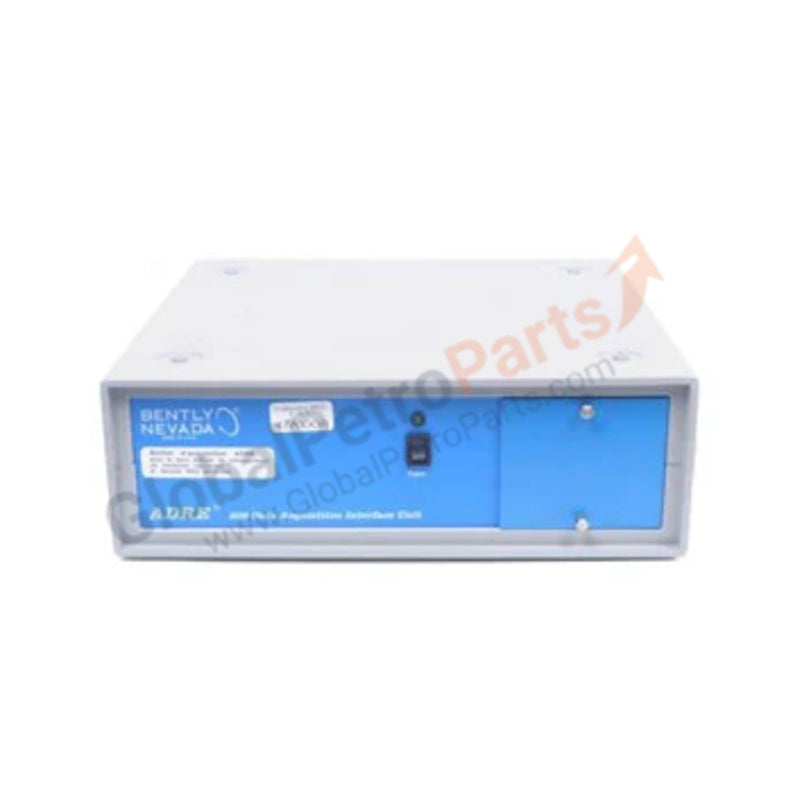

Bently Nevada 102351-04-01 Data Acquisition Interface Unit (DAIU)

Product Overview

The Bently Nevada 102351-04-01 functions as a high-performance Data Acquisition Interface Unit (DAIU) specifically designed for portable machinery diagnostics. This unit bridges the gap between field sensors and analytical software, capturing synchronized multi-channel vibration data from critical industrial assets. It integrates seamlessly with existing Bently Nevada proximity probes and transducers to deliver high-fidelity signal processing in real-time. We supply this unit in 100% brand new, original factory condition to ensure the highest precision for your equipment health audits and troubleshooting tasks.

Technical Specifications

• Model Type: Data Acquisition Interface Unit (DAIU)

• Channel Capacity: Supports up to 16 simultaneous channels

• Acquisition Rate: Up to 20 kHz per channel

• Processing Capabilities: Integrated RMS, Peak-to-Peak, and Spectral (FFT) Analysis

• Communication: Enhanced Parallel Port (EPP) compatibility

• Input Voltage: 24 VDC

• Operating Temperature: -40°C to +85°C (-40°F to +185°F)

• Physical Weight: 2.5 kg

• Compatibility: Bently Nevada Monitoring Sensors & Systems

• Condition: Brand New Original

Engineering Advantages

The 102351-04-01 solves complex field diagnostic challenges through specialized signal hardware:

• High-Speed Synchronous Sampling: This unit samples data at 20 kHz across all 16 channels simultaneously. This eliminates phase-shift errors between channels, allowing vibration analysts to accurately assess cross-channel relationships and shaft orbits in high-speed rotating machinery.

• Extreme Thermal Resilience: The robust internal circuitry operates reliably in temperatures ranging from -40°C to +85°C. This enables technicians to deploy the unit in harsh environments, such as unconditioned turbine decks or arctic pump stations, without signal drift or hardware failure.

• On-Board Digital Signal Processing (DSP): The DAIU performs complex calculations including RMS and spectral analysis internally. By offloading these tasks from the connected PC, the system maintains high refresh rates and prevents data bottlenecks during critical machinery startup or coast-down tests.

• Rugged Portable Design: At just 2.5 kg, the unit provides a mobile solution for multi-point inspections. The hardware withstands the physical rigors of field service, providing a stable interface for capturing data in areas where permanent rack installations are unavailable.

FAQs

• How many sensors can I connect to the 102351-04-01 at once?

  The unit supports up to 16 individual input channels. You can configure these to monitor multiple bearing points or machine trains simultaneously for a comprehensive diagnostic overview.

• Does this unit require a specific communication interface?

  The 102351-04-01 utilizes Enhanced Parallel Port (EPP) compatibility for data transfer. Ensure your analytical computer or field laptop supports this interface protocol or uses an approved Bently Nevada adapter for optimal throughput.

• Can the unit handle high-frequency vibration data?

  Yes. With a 20 kHz sampling rate per channel, the DAIU captures high-frequency components and harmonics. This makes it ideal for detecting early-stage rolling element bearing failures and gear mesh issues.

• Is this a genuine Bently Nevada product?

  Yes. We guarantee that every 102351-04-01 we ship is 100% brand new and original. Each unit arrives in its original manufacturer packaging and includes a full 1-year warranty.
