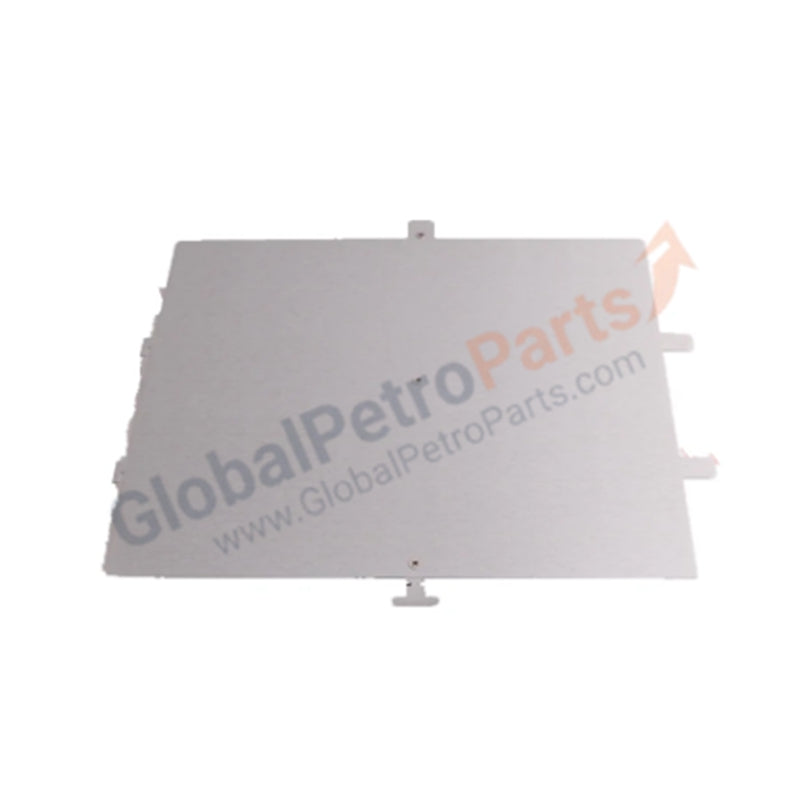

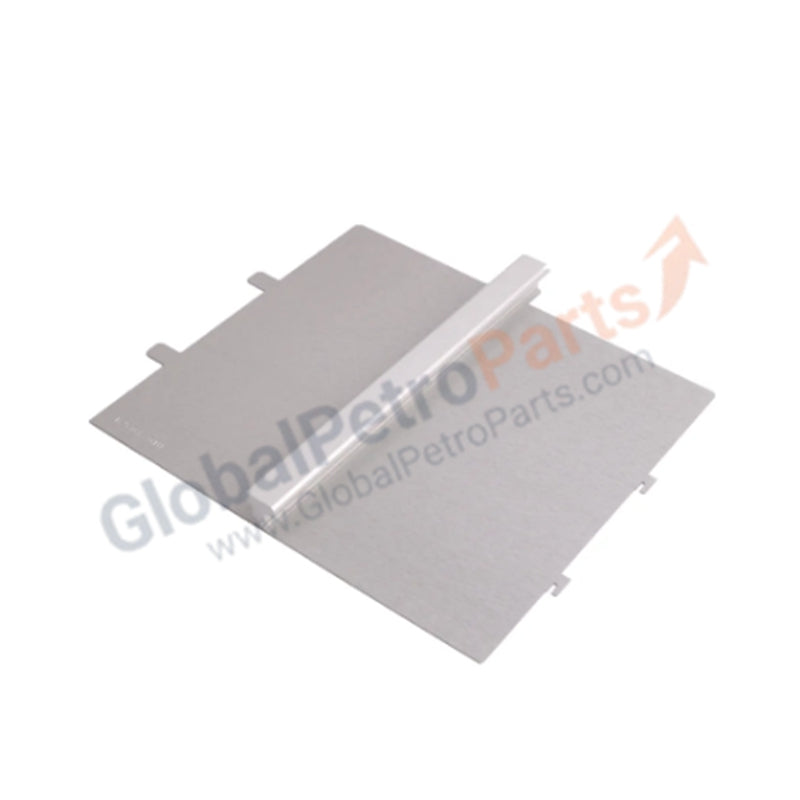

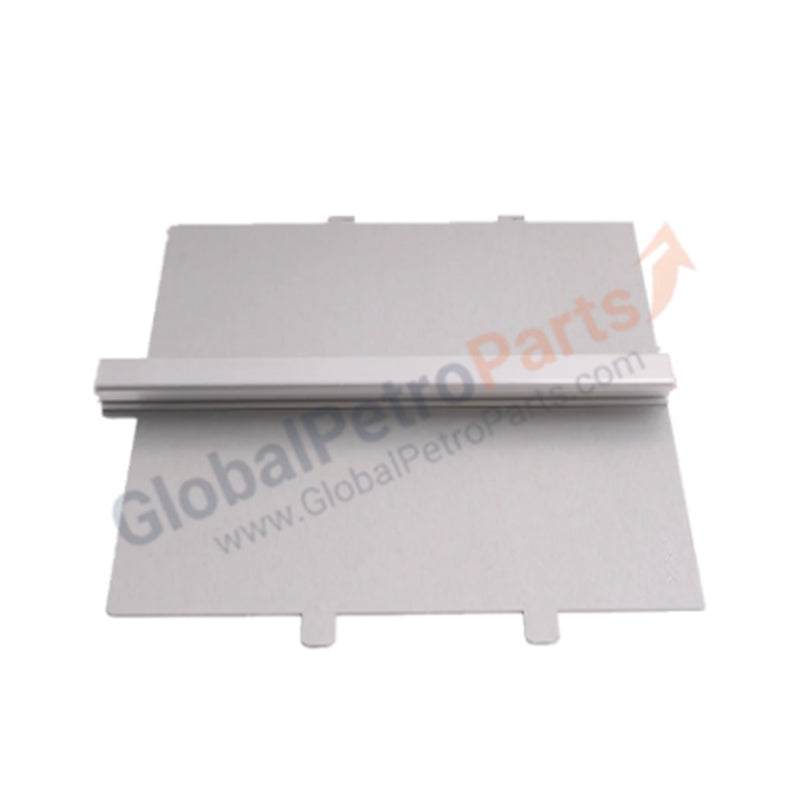

Bently Nevada 125388-01 3500 Series Half-height Module Internal Chassis

Product Overview

The Bently Nevada 125388-01 serves as the critical structural interface for half-height modules within the 3500 Machinery Protection System. This internal chassis provides the mechanical alignment and electrical grounding required to house secondary monitors, such as the 3500/32 or 3500/34, within a full-size rack slot. We supply this unit as 100% Brand New Original equipment, ensuring perfect fitment and maintaining the structural integrity of your vibration monitoring rack.

Technical Specifications

The 125388-01 features precision-engineered dimensions to ensure seamless integration into the 3500 series framework:

Engineering Advantages

• Precision Alignment: The 125388-01 utilizes tight-tolerance guide rails. These rails align the half-height module perfectly with the backplane connectors, preventing bent pins and ensuring a gas-tight electrical connection during hot-swap operations.

• Space Optimization: This chassis enables the "building block" approach of the 3500 system. By facilitating the installation of half-height modules, it allows engineers to double the monitoring density of a single rack slot, effectively reducing the total cabinet footprint for complex machinery trains.

• Enhanced Thermal Dissipation: The chassis design incorporates ventilation pathways that promote natural convection. This airflow prevents heat accumulation behind the module faceplate, protecting sensitive internal electronics from thermal drift in high-temperature turbine halls.

• Structural Rigidness: Despite its light 0.22 KG weight, the 125388-01 provides a rigid mounting platform. It absorbs mechanical vibrations within the cabinet, ensuring that physical movement does not translate into intermittent signal noise or "Not OK" status indicators.

• Electromagnetic Shielding Integrity: The chassis maintains the continuity of the rack’s ground plane. It provides a Faraday shield effect that protects internal signal processing from external radio frequency interference (RFI), a critical requirement for maintaining low-noise vibration data.

FAQs

• Can I use the 125388-01 for full-height 3500 modules?

  No. This specific chassis only supports half-height modules. Full-height modules utilize the standard rack guide rails and do not require this internal adapter.

• Does this chassis include the backplane connectors?

  The 125388-01 is a mechanical internal chassis. It guides the module into the connectors already located on the 3500 rack backplane. It does not include the electrical backplane itself.

• Is installation possible while the rack is powered?

  Yes. You can install the 125388-01 into an empty slot while the rack remains energized. However, always follow standard plant safety procedures and ESD (Electrostatic Discharge) protocols when handling internal rack components.

• How do I confirm the 125388-01 is a "Brand New Original" unit?

  Every unit we ship comes in original Bently Nevada factory packaging with matching serial numbers and a certificate of origin from the USA. This ensures the unit has never been subjected to mechanical stress or environmental degradation found in "surplus" or "used" stock.
