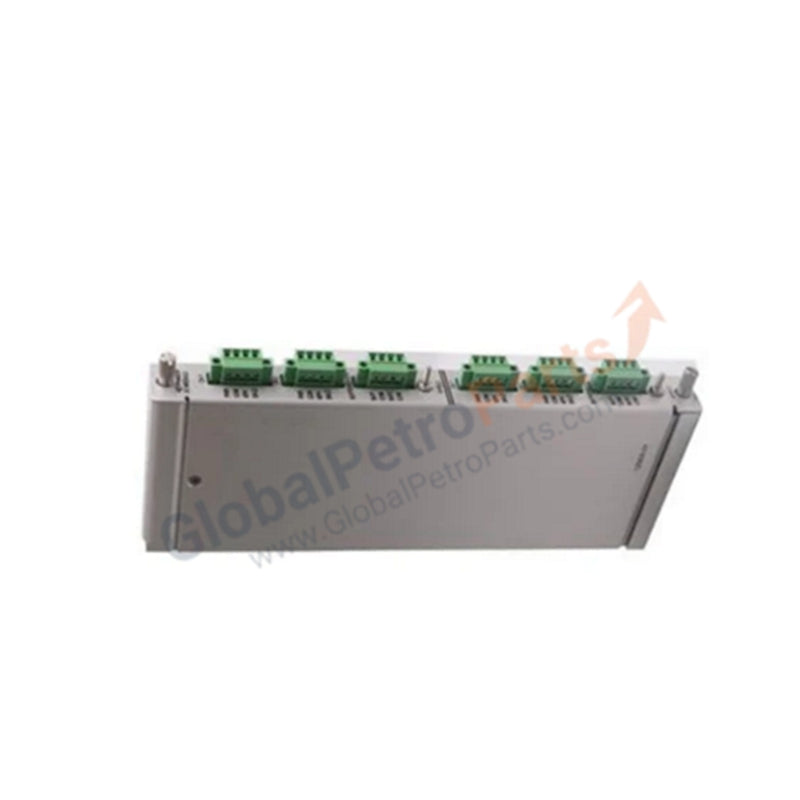

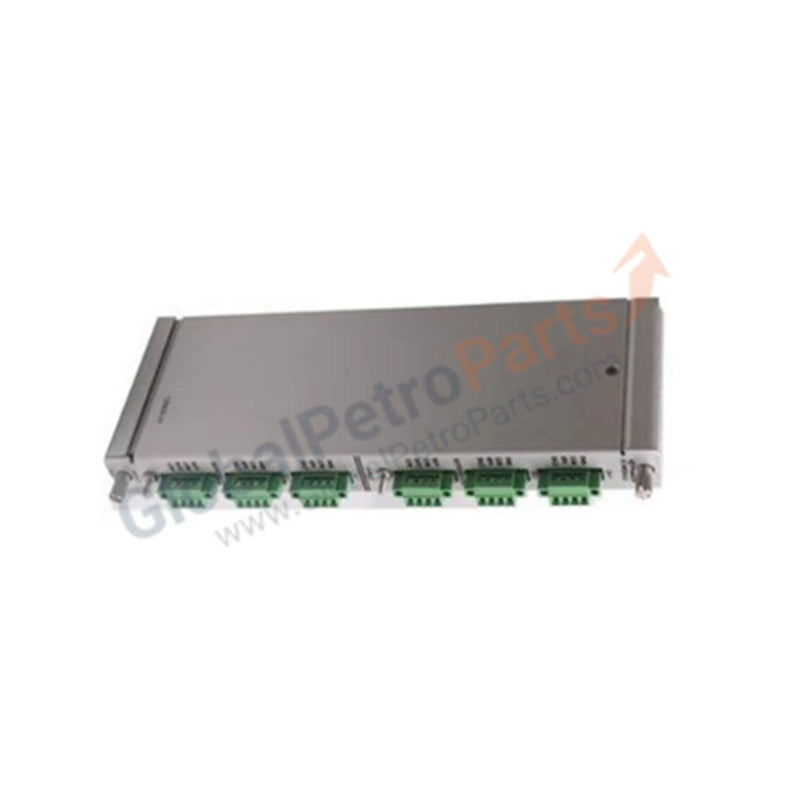

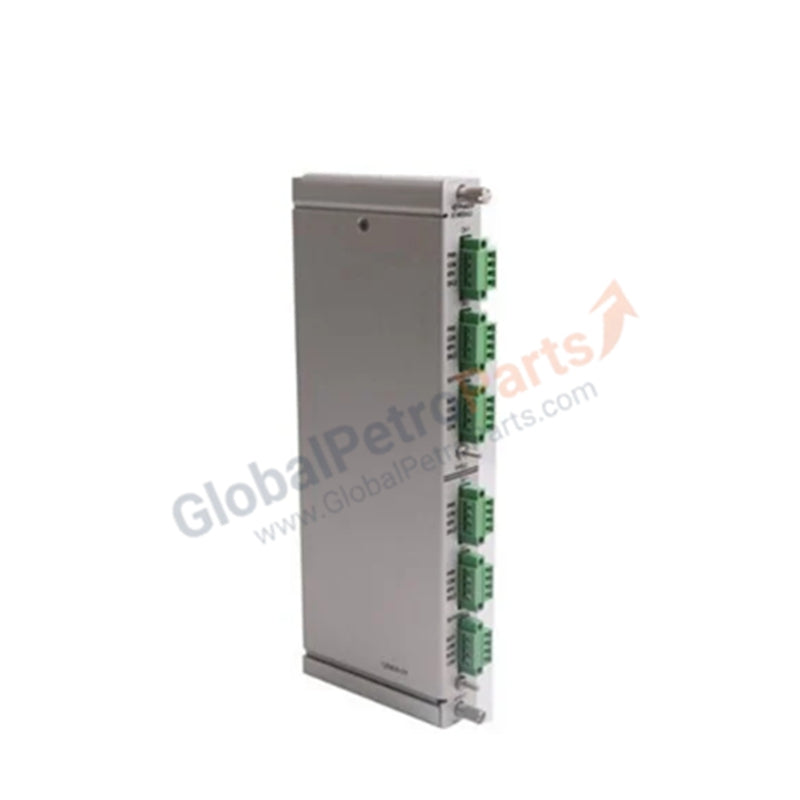

Bently Nevada 125800-02 3500 Series Keyphasor I/O Module

Product Overview

The Bently Nevada 125800-02 functions as a high-integrity I/O module specifically engineered for the 3500/25 Keyphasor system. It provides the essential physical interface between phase reference transducers and the 3500 monitoring rack. This module accepts input signals from proximity probes or magnetic pickups to provide once-per-turn timing pulses, which are critical for calculating vector parameters, shaft speed, and phase angles. We supply this unit as 100% Brand New Original stock, ensuring your diagnostic system maintains the highest pulse-detection accuracy.

Part Number Breakdown

The 125800 series defines the termination and isolation characteristics for Keyphasor inputs:

Technical Specifications

The 125800-02 utilizes precision circuitry to handle high-speed pulse signals without edge degradation:

Engineering Advantages

• Precision Phase Referencing: The 125800-02 delivers ultra-sharp pulse processing. It accurately captures the trigger edge even at high RPMs, allowing the 3500 system to calculate synchronous vibration data (1X, 2X) with minimal phase error.

• External Termination Flexibility: This "-02" variant supports external termination. It allows engineers to route field wiring to a separate terminal strip, simplifying rack-side maintenance and reducing cable stress within narrow control cabinets.

• EMI/RFI Signal Hardening: The module employs advanced filtering to reject electrical noise generated by nearby Variable Frequency Drives (VFDs). This prevents "ghost pulses" or false speed readings that could otherwise trigger an accidental machinery trip.

• Hot-Swappable Design: The 3500 architecture allows for the replacement of the 125800-02 without powering down the entire rack. This capability ensures continuous machinery protection and data acquisition during routine maintenance intervals.

• Ruggedized USA Build Quality: Manufactured in the USA, this module features gold-plated backplane connectors and industrial-grade components. It withstands the sustained thermal loads found in centralized turbine control rooms.

FAQs

• Does the 125800-02 require a specific Keyphasor monitor module?

  Yes. You must pair the 125800-02 I/O module with the 3500/25 Keyphasor Monitor card located in the front of the rack. The I/O module resides in the rear slot directly behind the monitor card.

• Can I use this module for overspeed protection?

  While the 125800-02 provides speed data, it primarily serves diagnostic and phase-tracking purposes. For dedicated emergency overspeed shutdown, Bently Nevada recommends the 3500/53 Electronic Overspeed Detection System.

• How do I troubleshoot a "Keyphasor Not OK" status?

  Check the terminal connections on the 125800-02 first. Ensure the transducer gap produces the required voltage pulse (typically > 2V peak-to-peak). If the "OK" LED remains off, the module may have detected an input circuit fault or a power supply mismatch.

• Why is "Brand New" stock critical for I/O modules?

  I/O modules are the first point of contact for external electrical surges. A 100% Brand New Original 125800-02 ensures the internal surge protection components and pulse-shaping capacitors have not degraded, guaranteeing the signal integrity required for API 670 compliance.
