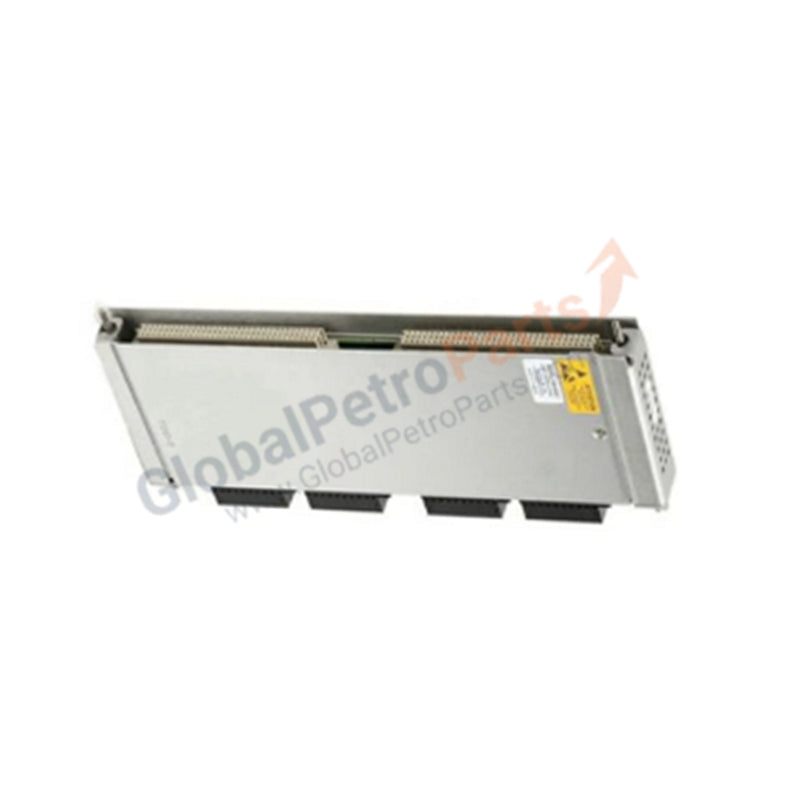

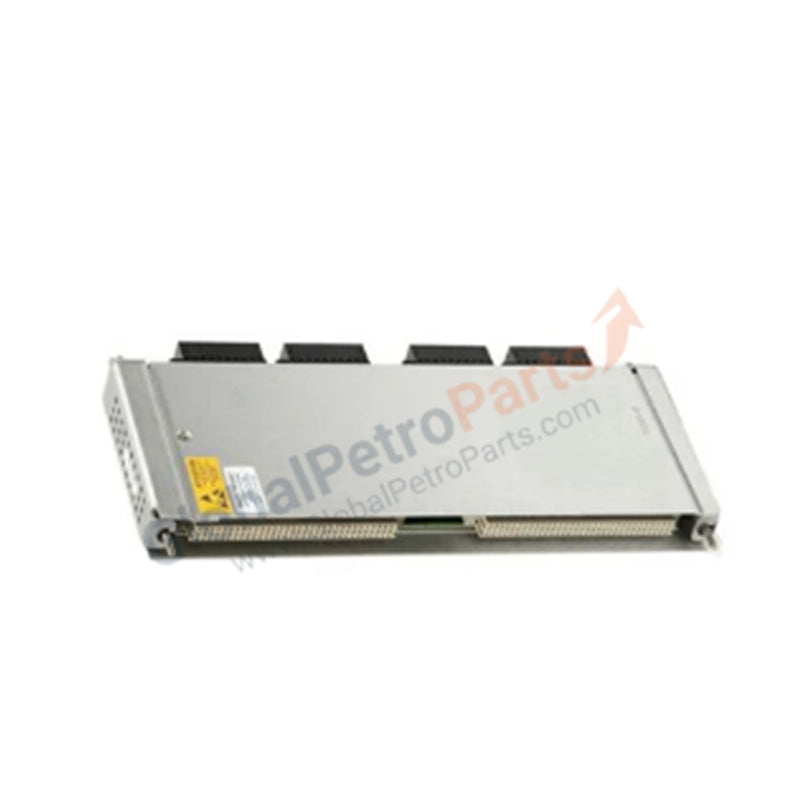

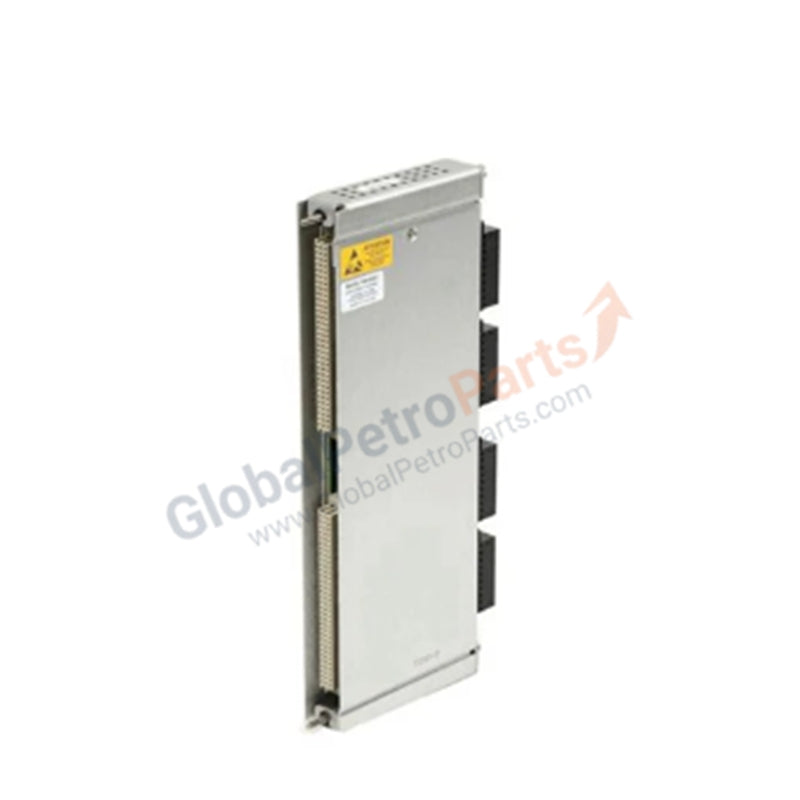

Bently Nevada 126599-01 3500 Series Vibration I/O Module

Product Overview

The Bently Nevada 126599-01 serves as a specialized Vibration I/O Module designed for the 3500 Machinery Protection System. This module occupies the rear slot of the 3500 rack, acting as the primary physical interface between vibration transducers and the internal processing monitors. It facilitates the clean transmission of raw seismic or proximity signals, ensuring the monitoring system receives accurate data for machinery protection and diagnostics. We supply this component as 100% Brand New Original equipment to guarantee the safety and performance of your critical rotating assets.

Technical Specifications

The 126599-01 features robust electrical isolation and precision signal routing tailored for industrial environments:

Engineering Advantages

• Superior Signal Integrity: The 126599-01 utilizes high-grade shielding and gold-plated connectors to minimize signal attenuation. This ensures that the raw vibration data remains pure, allowing the front-panel monitor to calculate exact peak-to-peak values without interference.

• Internal Termination Efficiency: This module supports internal terminations, which simplifies cabinet wiring. Engineers land transducer leads directly onto the module’s terminal blocks, reducing the need for external transition hardware and saving valuable panel space.

• Electromagnetic Interference (EMI) Hardening: The circuitry rejects high-frequency noise typical of environments with large motor drives and switchgear. This protection prevents "false trips" caused by electrical transients, maintaining plant uptime during grid fluctuations.

• Hot-Swappable Architecture: The 3500 system design allows for the replacement of the 126599-01 without powering down the entire rack. This enables maintenance teams to address I/O issues on the fly while other machine protection loops remain fully operational.

• Environmental Durability: Manufactured in the United States to rigorous industrial standards, this 0.9 kg module features a rugged chassis that withstands the constant low-level vibration and thermal cycles found in centralized turbine control rooms.

FAQs

• Which front-panel monitors pair with the 126599-01?

  The 126599-01 typically pairs with the 3500/42M Proximitor Seismic Monitor or the 3500/40M Proximitor Monitor. It provides the necessary rear-panel termination for the sensors associated with these processing cards.

• Does this module support both Proximitor and Accelerometer inputs?

  Yes. Depending on the configuration of the front-panel monitor, the 126599-01 routes signals from Proximitor sensors, velocity transducers, or accelerometers. Always verify the software configuration in the 3500 Rack Configuration tool.

• Can I use the 126599-01 in hazardous area installations?

  The 126599-01 complies with standard 3500 system certifications for Division 2 or Zone 2 hazardous areas. For Division 1 or Zone 0/1 applications, you must use it in conjunction with external intrinsic safety (IS) barriers.

• Why should I choose Brand New Original over surplus stock?

  Machinery protection systems require 100% reliability. A Brand New Original 126599-01 guarantees that internal capacitors and surge protection components have not aged, ensuring the unit meets its full Mean Time Between Failures (MTBF) and API 670 compliance.
