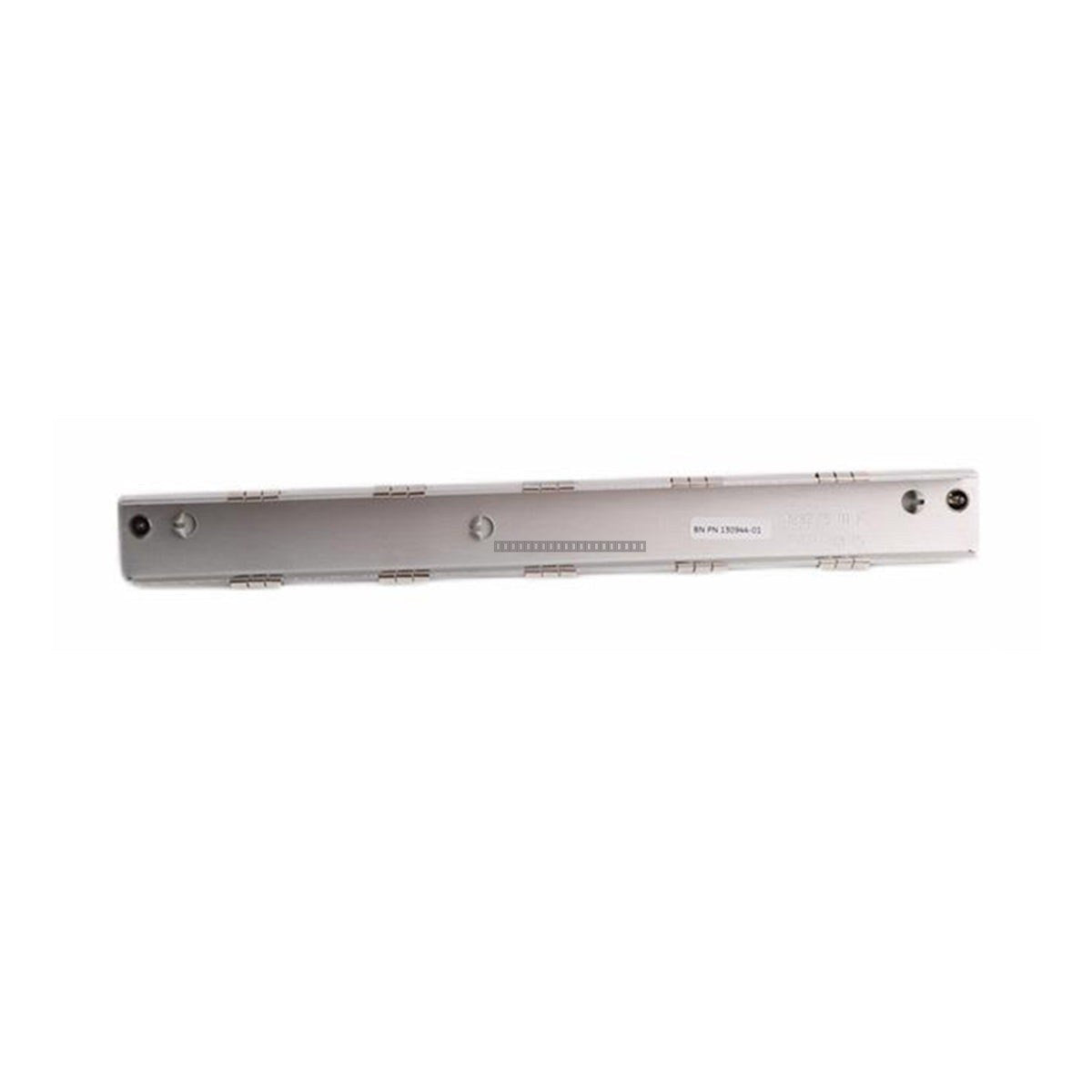

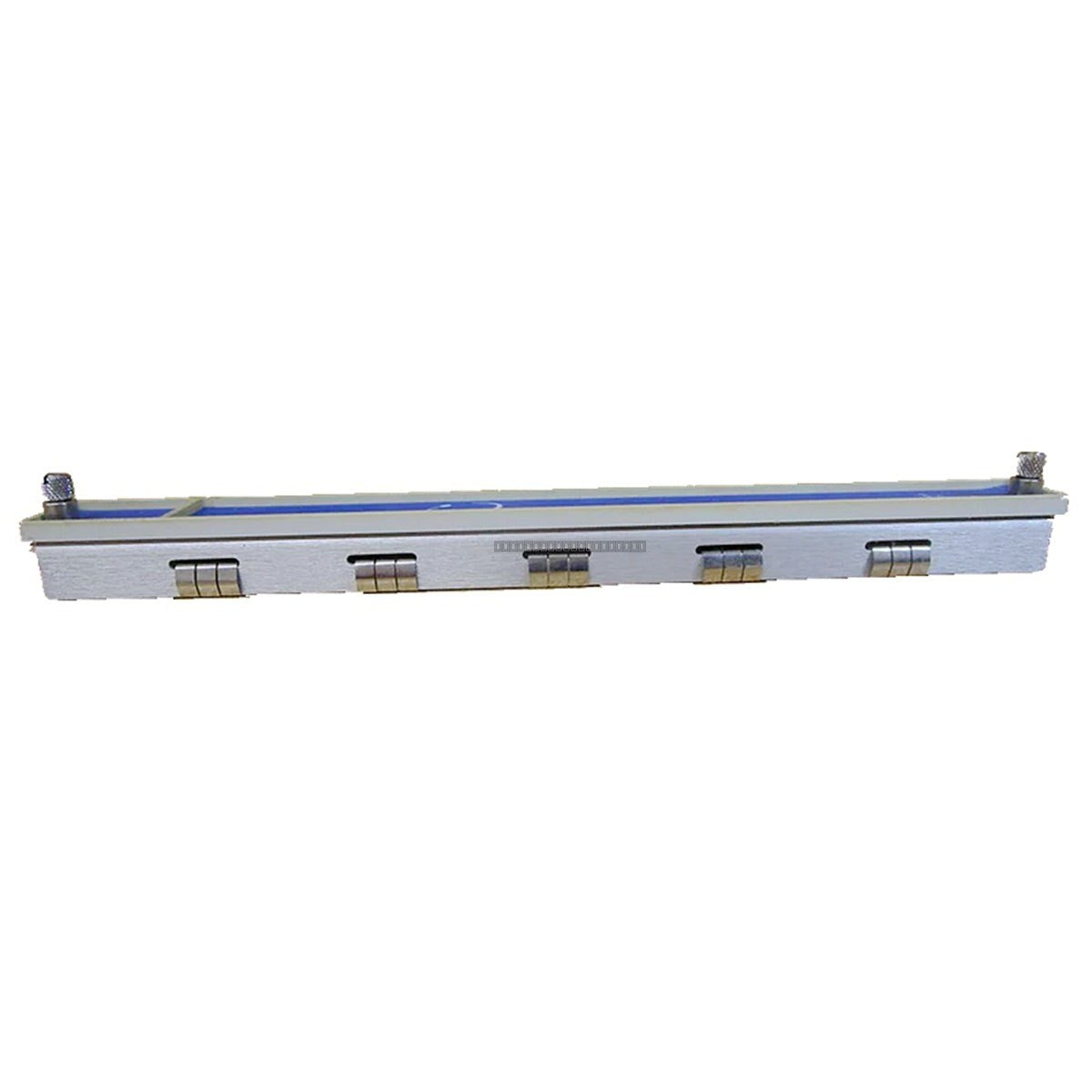

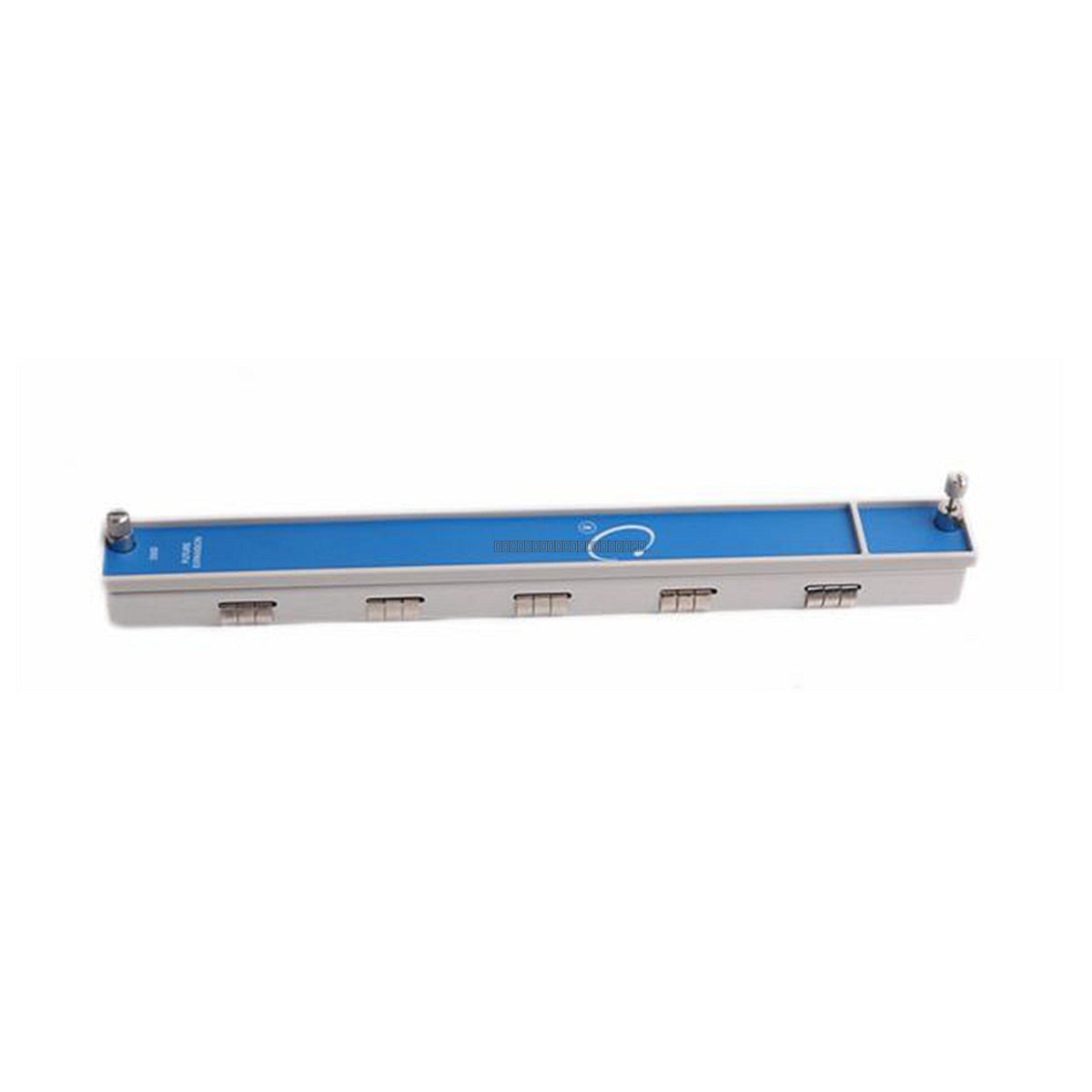

Bently Nevada 128275-01 Blank Plate for 3500 System

Description

The Bently Nevada 128275-01 is a blank plate module designed for use within the 3500 Series Machinery Protection System. This component serves as a mechanical filler for unused slots in the 3500 rack, ensuring proper airflow management, electromagnetic compatibility (EMC) integrity, and physical protection of the internal backplane connectors.

Features

• Designed specifically for the Bently Nevada 3500 System rack architecture.
• Provides a clean, professional finish for empty rack slots.
• Maintains structural integrity and environmental protection for the rack assembly.
• Compatible with standard 3500 series chassis configurations.

Technical Specifications

Installation Guidelines

• Ensure the 3500 rack is powered down or follow site-specific safety procedures before inserting or removing modules or blank plates.
• Align the blank plate with the guide rails of the empty slot in the 3500 rack.
• Slide the module into the slot until it is flush with the front of the rack.
• Ensure the module is properly seated to maintain the rack's environmental and EMI shielding integrity.
• Handle with care to avoid bending the front panel or damaging the rack frame.

FAQ

What is the purpose of the Bently Nevada 128275-01?

This module is a blank plate used to cover unused slots in a 3500 system rack. It is essential for maintaining proper cooling airflow and protecting the internal backplane from dust and debris.

Is this part compatible with all 3500 racks?

Yes, the 128275-01 is designed to fit the standard slot dimensions of the Bently Nevada 3500 Machinery Protection System chassis.
