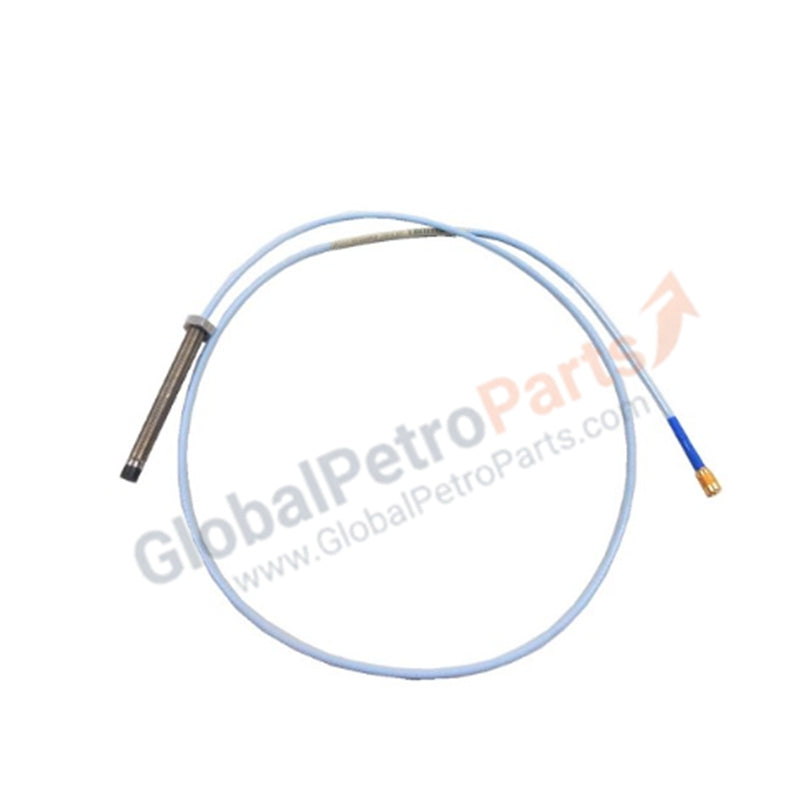

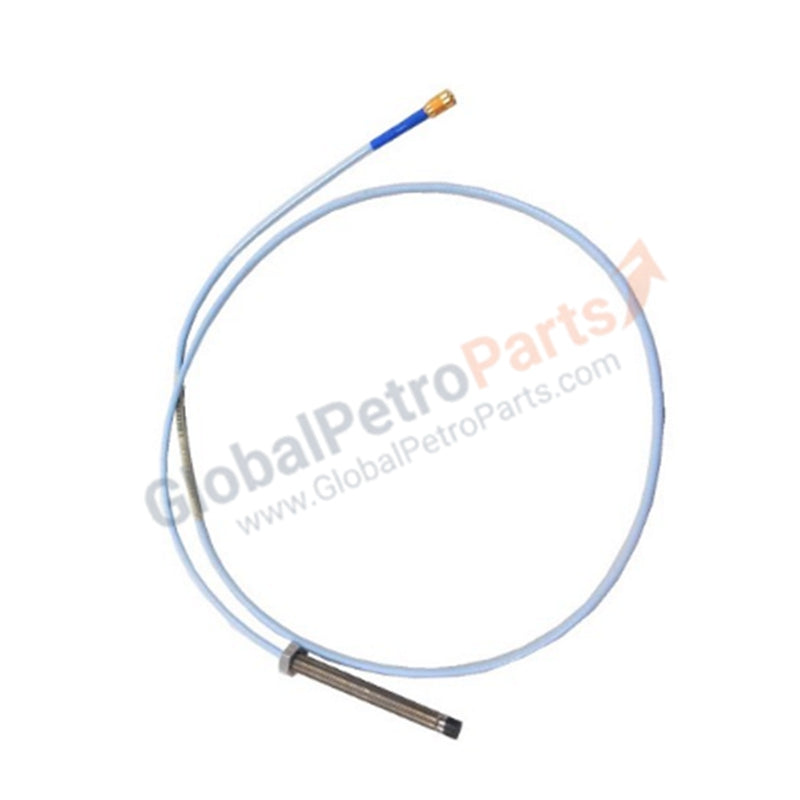

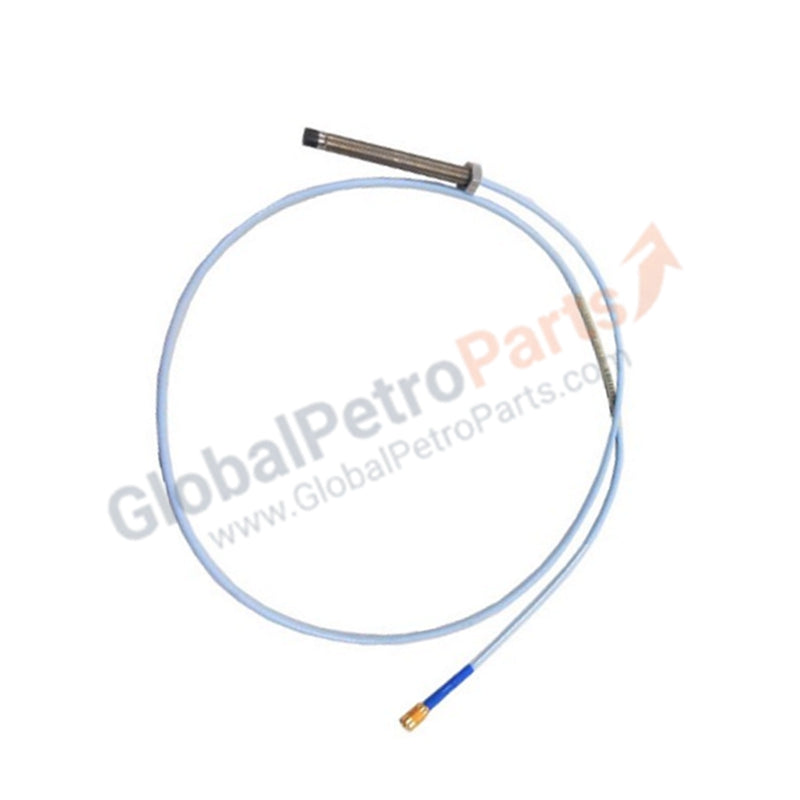

Bently Nevada 131108-0025-02 3300 XL Proximity Extension Cable

Product Overview

The Bently Nevada 131108-0025-02 constitutes a vital link in the 3300 XL Proximity Transducer System. This extension cable bridges the connection between the proximity probe and the Proximitor sensor. It ensures precise transmission of eddy current signals without impedance mismatch. We supply this product as 100% Brand New, ensuring the dielectric integrity remains intact for mission-critical machinery protection.

Part Number Breakdown

Bently Nevada uses a specific nomenclature for the 131108 series to define length and environmental protection:

Technical Specifications

Engineering Advantages

• Signal Stabilization: The 131108-0025-02 maintains constant impedance across its entire length. This prevents signal attenuation and phase shifts that often trigger false vibration alarms in high-speed rotating machinery.

• ClickLoc™ Connector Technology: The gold-plated ClickLoc™ connectors provide a secure, vibration-proof coupling. This mechanism prevents accidental disconnection and resists corrosion in humid or chemically aggressive environments.

• Fluid and Oil Resistance: The FEP jacket resists degradation from turbine oils, synthetic lubricants, and common industrial solvents. This ensures a long service life when routed through oily machine internals or conduits.

• Simplified Installation: The 2.5-meter length optimizes cable management in standard industrial enclosures. The flexible core allows for tight routing through narrow conduits without compromising the electrical shield.

FAQs

• Can I use this cable with non-XL 3300 probes?

  While physically compatible, the 3300 XL 131108 series cable works best with 3300 XL Proximitor sensors to meet stated performance specifications. Using it with older systems may require re-calibration of the Proximitor.

• Does the cable require a connector protector?

  The "-02" suffix indicates this cable includes standard connectors. If your application involves high-pressure fluid immersion, we recommend using the version with optional connector protectors to prevent moisture ingress.

• How does the cable handle electromagnetic interference (EMI)?

  The cable features high-density braiding that shields the signal core from external RFI and EMI. This ensures that the Proximitor sensor receives only the physical gap data from the probe.

• Is the 2.5m length critical for accuracy?

  Yes. The Proximitor sensor is calibrated for a specific total system length (typically 5.0m or 9.0m). You must match the extension cable and probe lead length to the Proximitor's requirements to ensure accurate millivolt-per-mil output.
