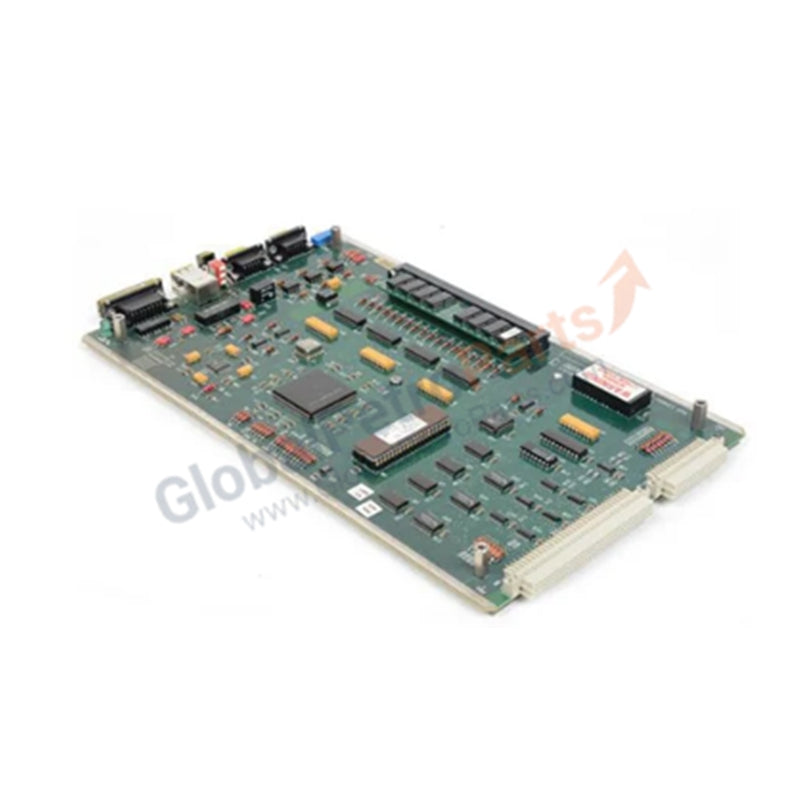

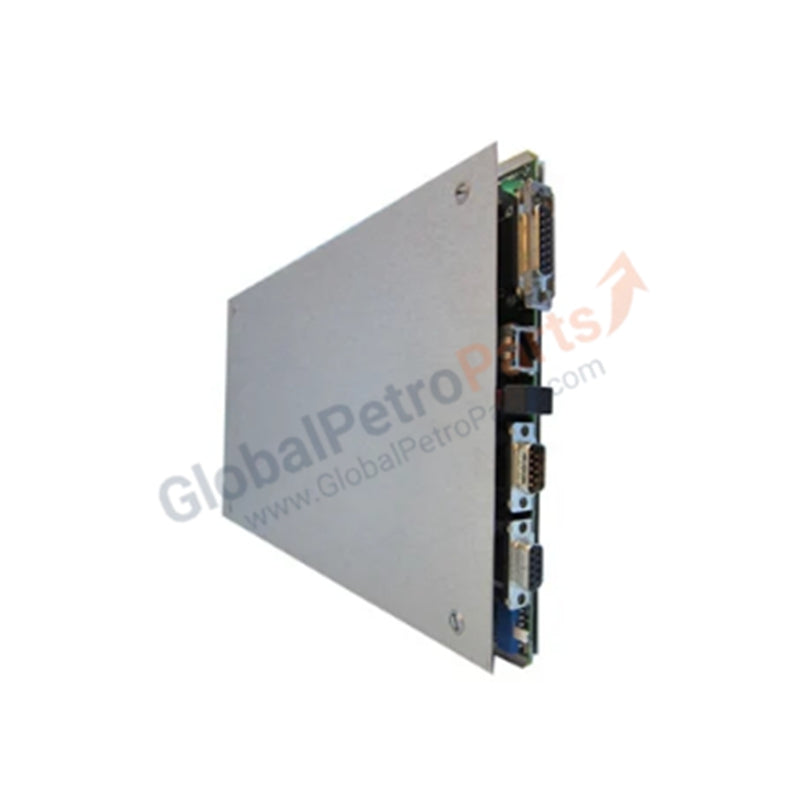

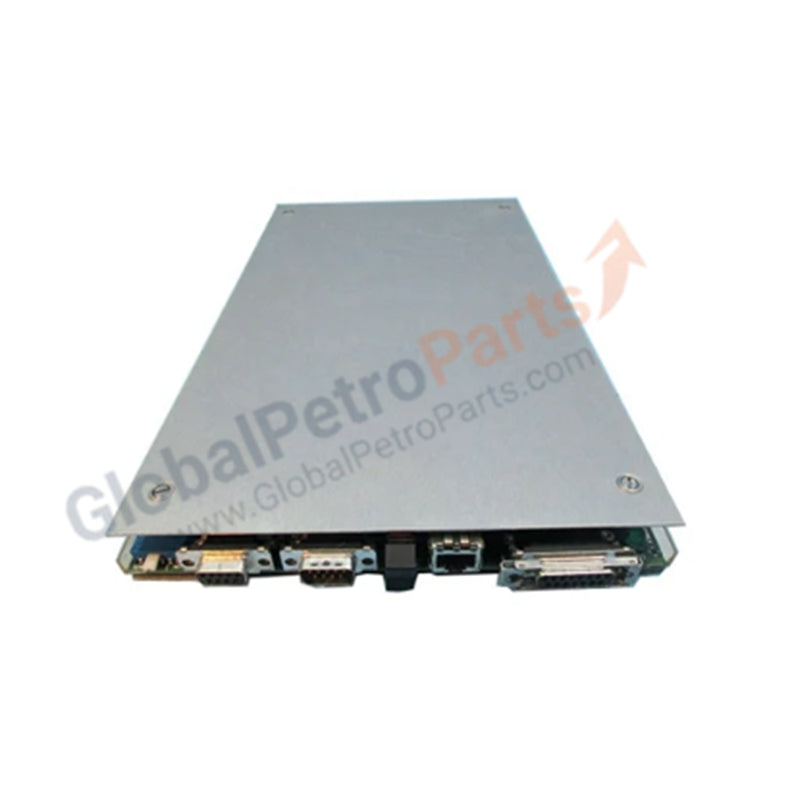

Bently Nevada 134652-01 3500 Series TDXnet Transient Data Interface

Product Overview

The Bently Nevada 134652-01 functions as a high-performance TDXnet Transient Data Interface (TDI) designed for the 3500 Series Machinery Protection System. This module bridges the gap between the 3500 rack and external PLC/DCS systems or System 1™ software. It captures critical steady-state and transient dynamic data (waveforms) during machine startups, shutdowns, or alarm events. We supply this component as 100% Brand New and factory-sealed, ensuring peak data integrity for your condition monitoring network.

Technical Specifications

Engineering Advantages

• High-Speed Waveform Capture: The 134652-01 processes high-resolution vibration waveforms without taxing the rack's primary protection monitors. It stores transient data locally before transmitting it via Ethernet, preventing data loss during network congestion.

• Seamless PLC Integration: This module allows direct communication with Programmable Logic Controllers (PLCs). It translates complex machinery protection parameters into readable formats for plant-wide control systems, enabling proactive maintenance strategies.

• Noise-Immune Signal Processing: Advanced shielding within the TDXnet architecture rejects electromagnetic interference (EMI) typical of heavy industrial environments. This ensures that the data reaching your software reflects actual machine physics rather than electrical noise.

• Simplified Rack Architecture: The slim 2.5 cm profile fits standard 3500 rack slots perfectly. It replaces legacy, bulky communication processors, allowing engineers to consolidate monitoring hardware and reduce the total enclosure footprint.

FAQs

• Does the 134652-01 require specific software for configuration?

  Yes. You must use the 3500 Rack Configuration Software to assign IP addresses and define the data packets sent to your PLC or System 1 server. The module supports standard Ethernet connectivity for easy setup.

• Is this module compatible with older 3500/20 RIM modules?

  The 134652-01 TDXnet interface typically updates or complements the 3500/22M Transient Data Interface. If you are upgrading from a 3500/20, consult your system architecture to ensure the backplane supports the high-speed data bus required by TDXnet.

• How does this module handle "Event" recording?

  The module monitors alarm triggers from other cards in the rack. When a setpoint violation occurs, the 134652-01 automatically captures a "snapshot" of the vibration waveform before, during, and after the event for post-mortem engineering analysis.

• What is the warranty status for this product?

  Since we supply 100% Brand New original Bently Nevada hardware, the product includes full factory-standard reliability and is free from the wear-and-tear associated with refurbished or "pulled" units.
