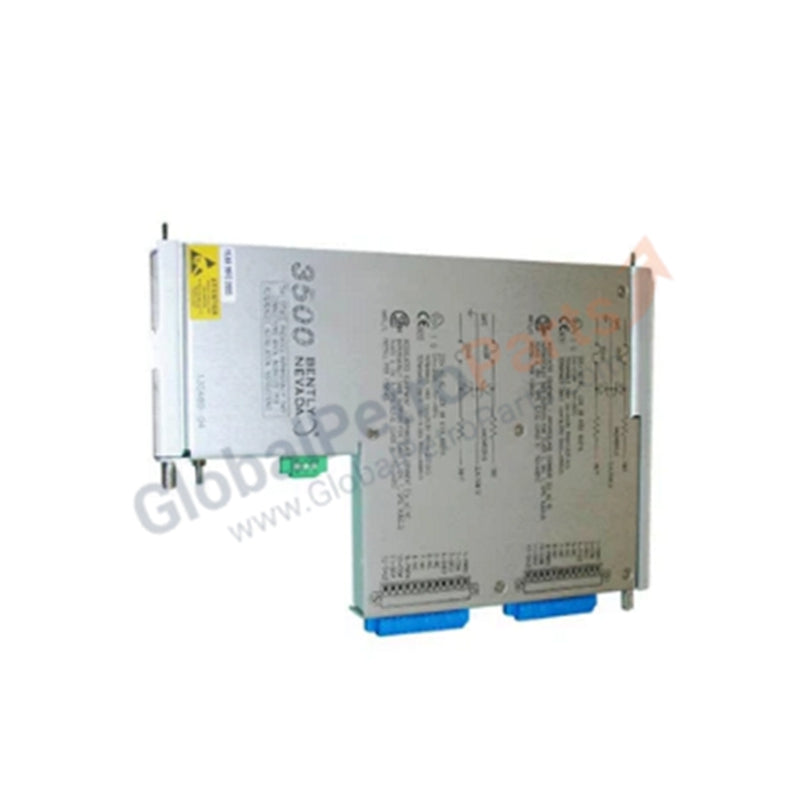

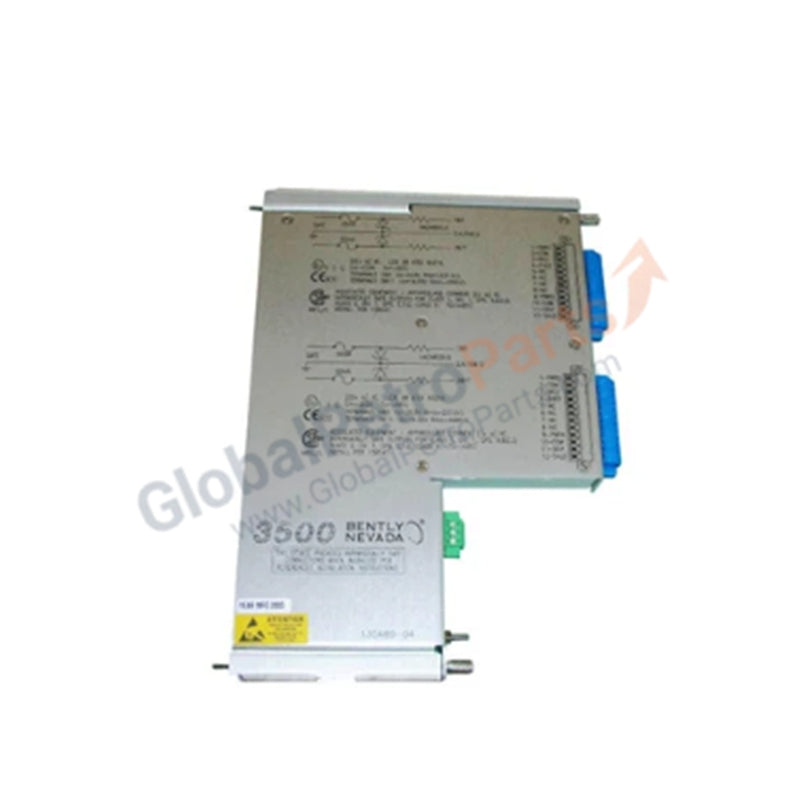

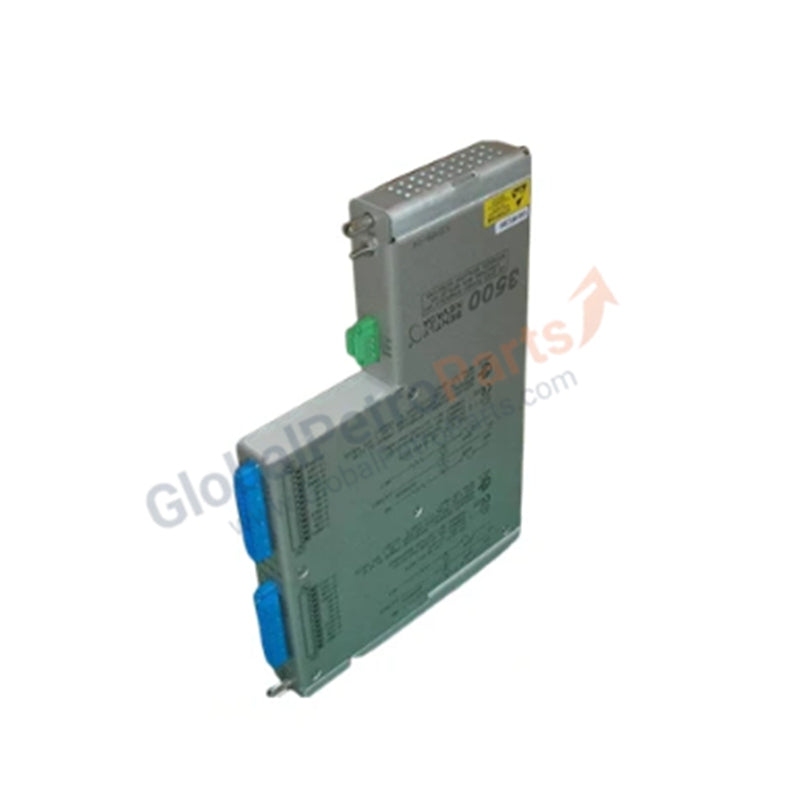

Bently Nevada 135489-02 3500/42 Barrier I/O Interface Module

Overview

The 3500/42 135489-02 by Bently Nevada is a compact and robust four-channel barrier I/O module engineered for demanding industrial environments. Integrated internal barriers and terminations ensure reliable operation while interfacing with sensors and actuators in rotating equipment monitoring systems.

Key Features

• Four isolated channels for input and output signals

• Internal barriers for enhanced industrial protection

• Compatible with vibration, proximity, and speed sensors

• Controls actuators such as solenoids and valves based on system logic

• Built-in protection for reverse polarity, overvoltage, and short circuits

Technical Specifications

• Model: 3500/42 135489-02

• Brand: Bently Nevada

• Product Type: Barrier I/O Module

• Channels: 4 isolated

• Input Voltage: 8–24 VDC

• Output Voltage: 8–24 VDC

• Input Current: 10 mA per channel

• Output Current: 2 A per channel

• Operating Temperature Range: -40°C to +80°C (-40°F to 176°F)

• Mounting: Rack or panel compatible

• Protection Features: Reverse polarity, overvoltage, and short-circuit protection

Applications

• Vibration Monitoring: Interfaces with accelerometers to detect potential faults in rotating machinery.

• Proximity Sensing: Works with proximity sensors for precise component positioning and safety interlocks.

• Speed Measurement: Measures rotational speed using speed sensors to prevent overspeed events.

• Actuator Control: Automates valves, solenoids, or other actuators based on sensor feedback.

FAQ

Q: Is this module suitable for extreme temperature conditions?
A: Yes, it operates reliably from -40°C to +80°C (-40°F to 176°F).

Q: How many channels are available for I/O?
A: The 3500/42 135489-02 features four isolated input/output channels.

Q: What protection mechanisms are built in?
A: Reverse polarity, overvoltage, and short-circuit protections are included.
