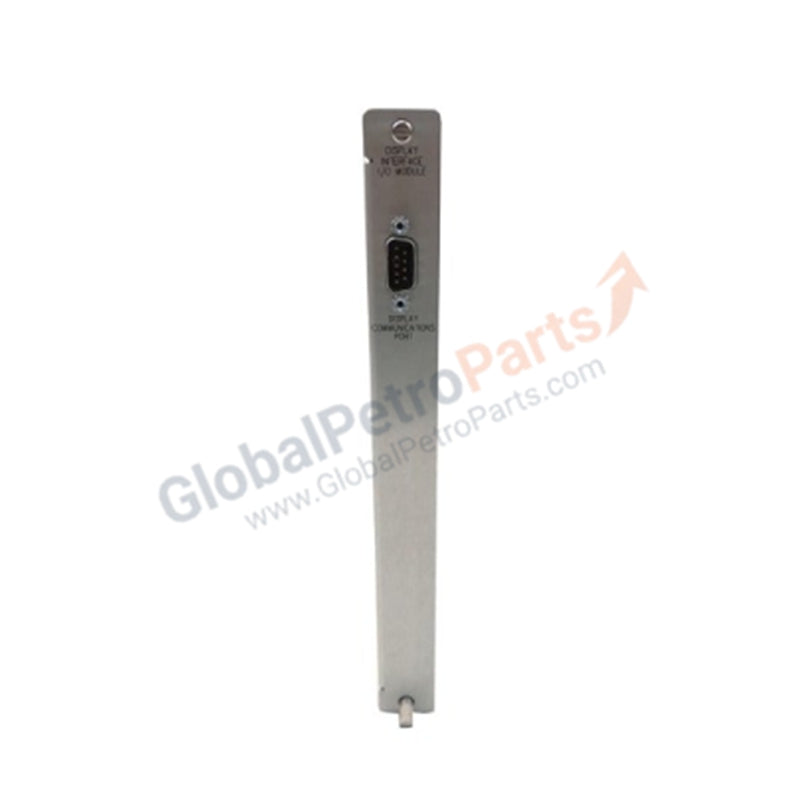

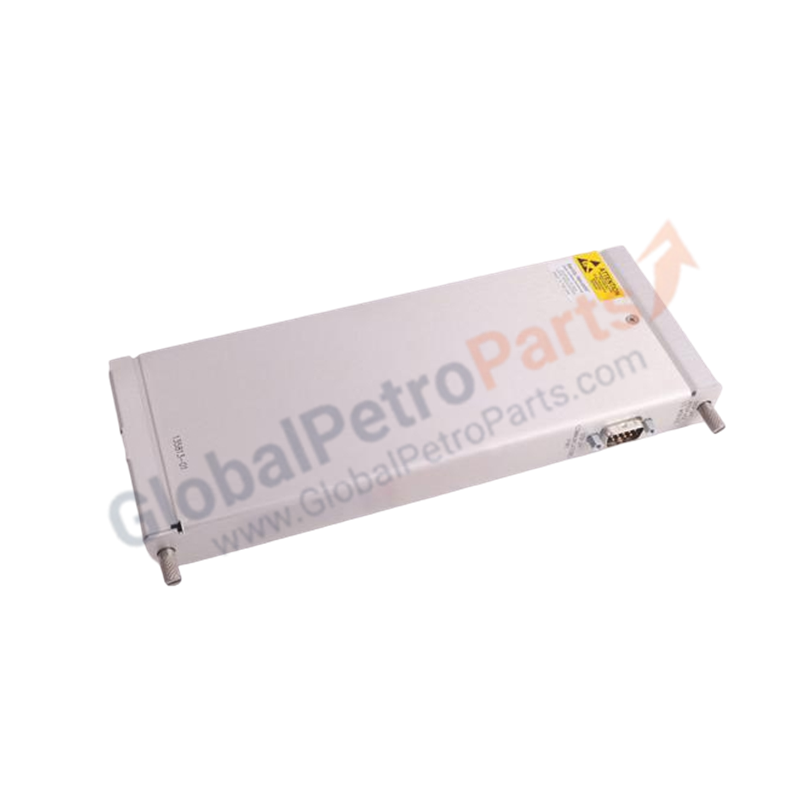

Bently Nevada 135813-01 3300 Series Display Interface I/O Module

Product Overview

The Bently Nevada 135813-01 acts as the high-density communication bridge for the legacy 3300 Monitoring System. This 12-channel Display Interface I/O Module manages the complex signal routing between the rack backplane and the front-panel display units. It ensures that critical machinery data—including vibration levels, thrust position, and speed—reaches the operator interface with zero latency. We supply this unit as 100% Brand New original equipment, providing a factory-fresh solution for maintaining aging yet vital machinery protection infrastructure.

Technical Specifications

Engineering Advantages

• 12-Channel High-Density Routing: This module consolidates signals from up to 12 individual monitors into a single interface. This architectural efficiency reduces cable clutter at the rear of the 3300 rack and simplifies the overall system map for maintenance teams.

• Voltage Compliance & Signal Integrity: With a wide input signal range of +10.0 V to -24.0 V, the 135813-01 handles a variety of transducer outputs. It maintains high input impedance (20 kΩ) to prevent signal loading, ensuring that the primary machinery protection functions receive pure, unattenuated data.

• Industrial Thermal Resilience: The robust circuitry withstands ambient temperatures ranging from -30°C to +65°C. This allows for stable operation in unconditioned control rooms or localized turbine enclosures where thermal fluctuations often degrade consumer-grade electronics.

• Backplane Power Optimization: The module manages its 15.5-watt power draw intelligently via the rack's power supply. It provides a stabilized 24 Vdc source for transducers, ensuring that field sensors receive consistent power regardless of rack load variations.

FAQs

• Is the 135813-01 compatible with newer 3500 series racks?

  No. This module belongs specifically to the 3300 Series ecosystem. It utilizes the physical and electrical architecture unique to the 3300 rack backplane. For 3500 systems, you must select the 3500/22M or 3500/25 equivalent.

• Does this module require manual calibration during installation?

  The 135813-01 features factory-calibrated signal paths. However, you must verify the jumper settings on the board to match your specific rack configuration (e.g., matching the frequency of 50 or 60 Hz as specified in your plant's power standards).

• Can this I/O module be hot-swapped?

  We recommend powering down the rack or bypassing the associated monitors before removing the I/O module. Removing the display interface while the system is live will cause the front-panel display to go blank, though the primary protection relays typically remain functional.

• How do I confirm the unit is 100% Brand New?

  Every 135813-01 we ship arrives in the original manufacturer's anti-static packaging with intact factory seals. Each unit carries a unique serial number and a "Made in USA" certification, confirming it is not a refurbished or repaired "pull."
