Bently Nevada 136386-01 Blank Filler Panel

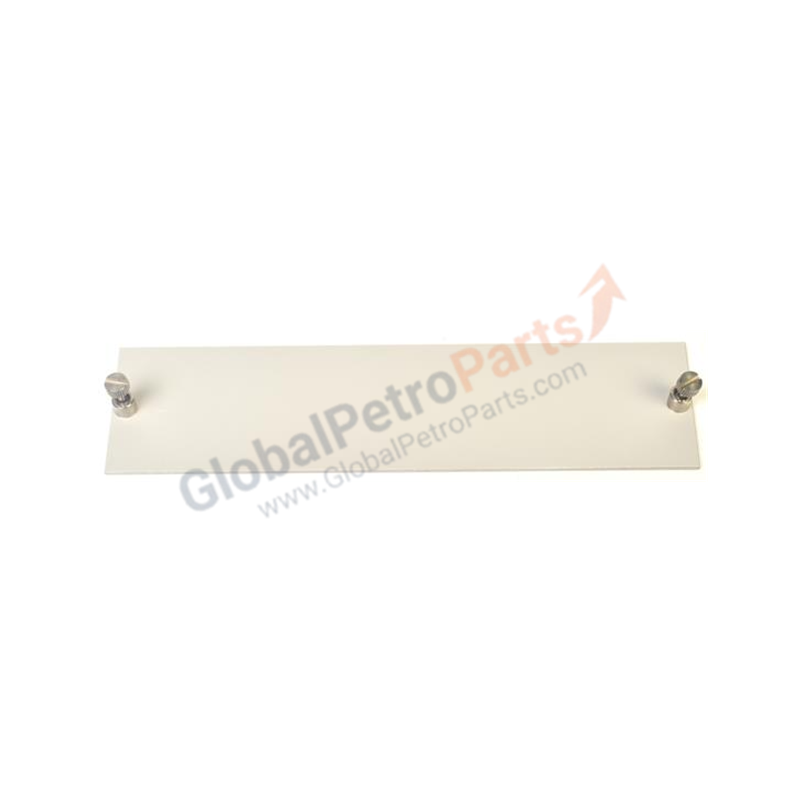

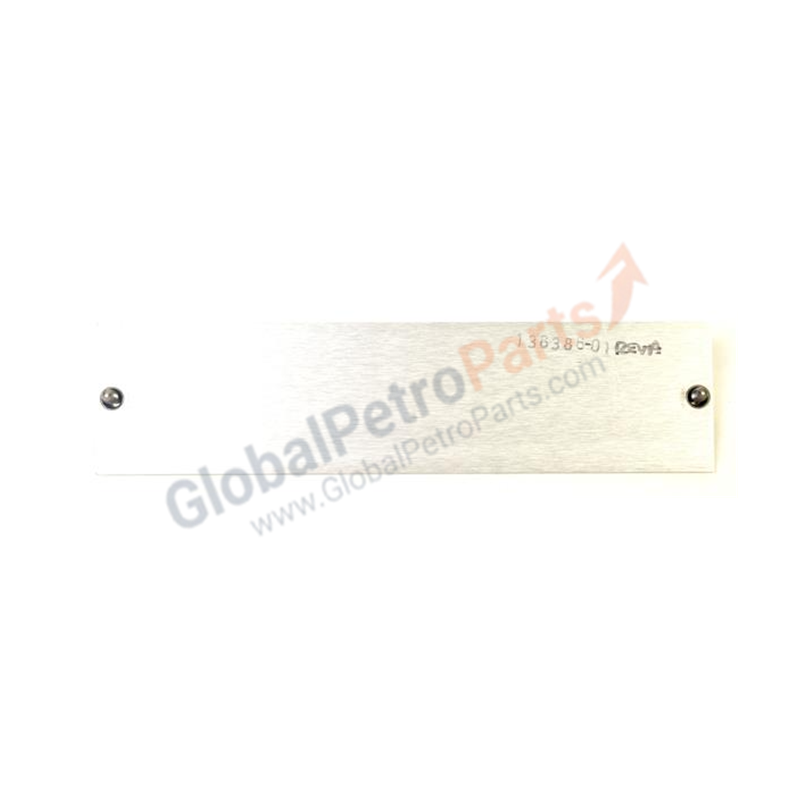

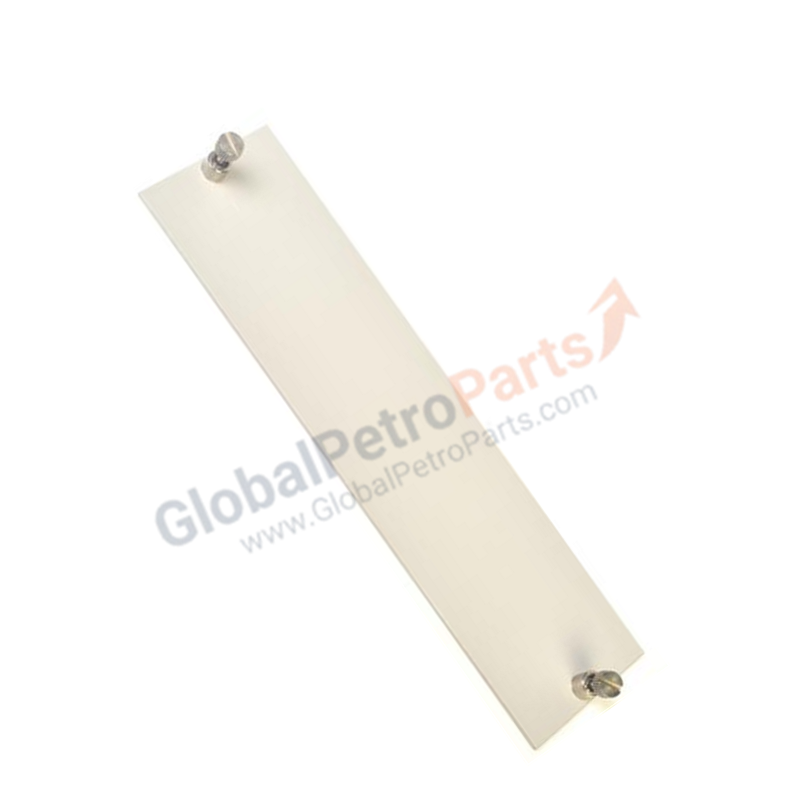

Configured for rack mechanical management in 3500 Machinery Protection System platforms, the Bently Nevada 136386-01 (136386-01 Blank Filler Panel) provides direct physical enclosure for unused module slots to maintain cooling airflow and rack integrity.

Hardware Specifications

Rotor Dynamics & Mechanical Integrity

The 136386-01 filler panel is required to preserve the internal pressure and thermal management profiles of the 3500 rack. In complex machinery monitoring environments, maintaining a sealed rack enclosure is necessary to ensure that cooling air is properly directed across functional modules, which house sensitive circuitry for eddy-current probe signal conditioning and rotor dynamics processing. Failure to install filler panels in open slots can disrupt internal airflow, potentially leading to localized thermal increases that affect the long-term stability of the monitoring electronics. Furthermore, these panels ensure the rack assembly remains compliant with mechanical protection standards by preventing the ingress of debris into the backplane bus area.

Frequently Asked Questions

Q: Can this filler panel be utilized in 3300 series racks?

A: No, this panel is specifically engineered for the 3500 series rack geometry. Dimensions and retention mechanisms are not compatible with the 3300 rack design.

Q: Is the installation of blank filler panels required for system operation?

A: Yes, blank panels are required to maintain rack cooling efficiency and protect exposed backplane connectors from dust and physical damage. Unused slots must be sealed during normal system operation.

Field Installation Guidelines

1. Slot Inspection: Before installation, ensure the open rack slot is clear of any loose debris or obstructions that could interfere with the backplane or adjacent module functionality.
2. Alignment: Align the blank filler panel with the slot guides of the 3500 rack. Ensure the orientation matches the surrounding modules to maintain a uniform front panel assembly.
3. Seating: Slide the panel fully into the rack until the front faceplate is flush with the adjacent modules.
4. Retention: Secure the panel using the integrated captive screws. Tighten to a level that ensures the panel is held firmly in place, preventing vibration-induced movement or rattling.
5. System Integrity: Confirm that the panel is fully seated to verify that no open gaps remain in the rack front, ensuring the intended thermal airflow path is restored to the chassis.
