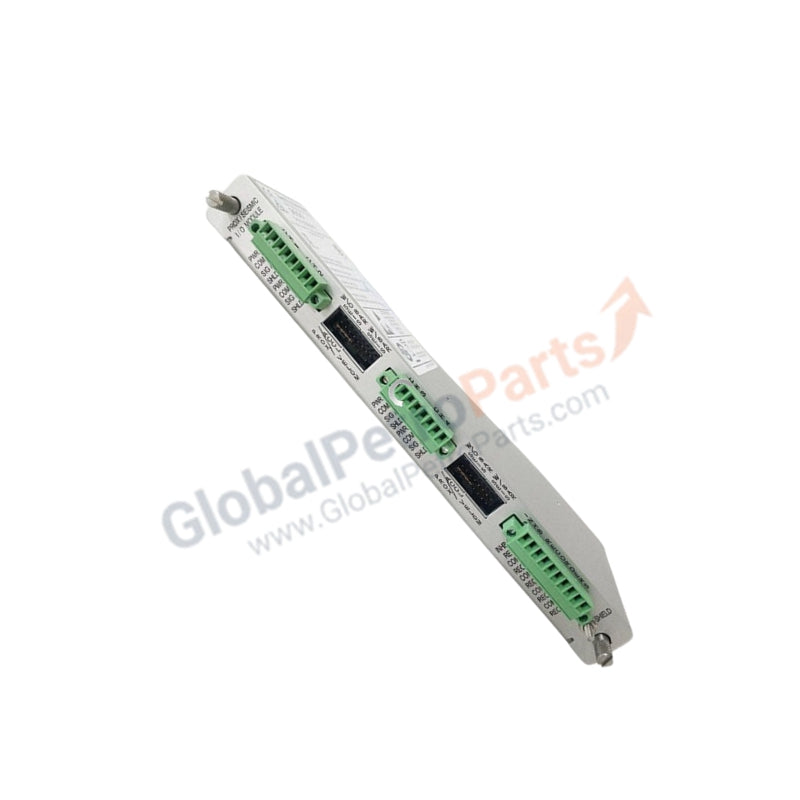

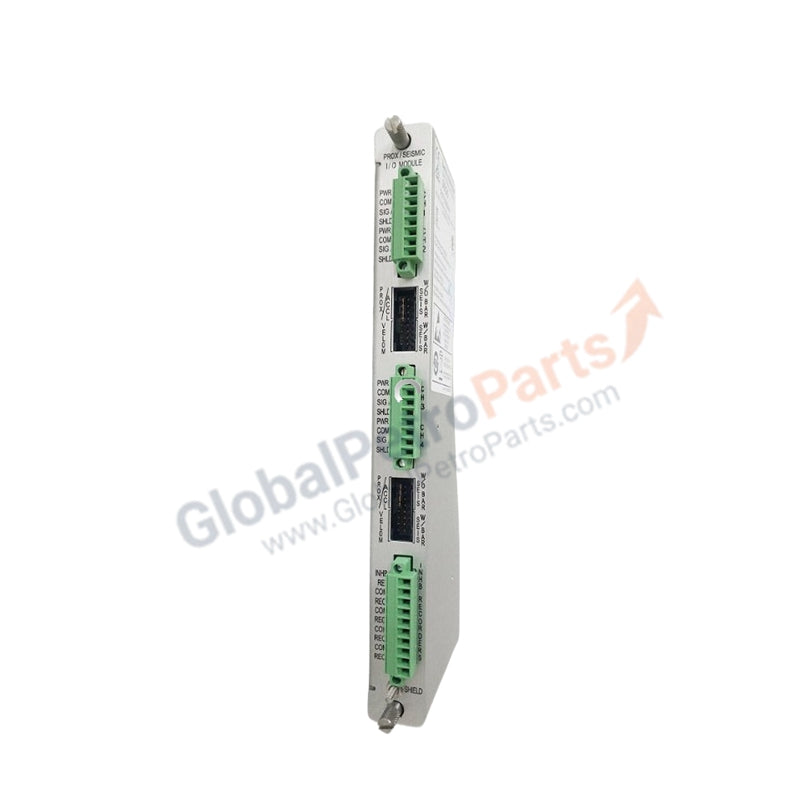

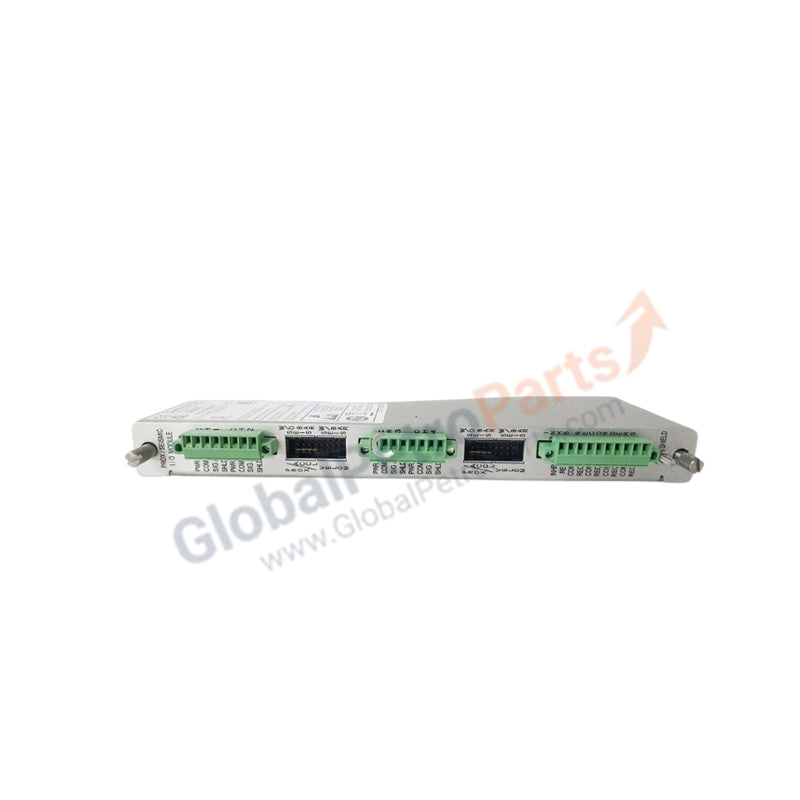

Bently Nevada 140471-01 Proximitor Seismic Monitor I/O Module

Configured for seismic sensor signal acquisition in Bently Nevada 3500 series platforms, the Bently Nevada 140471-01 (140471-01 I/O Module) provides direct physical and electrical interface between field seismic transducers and the 3500 rack monitoring backplane. This module executes signal conditioning and digitization of raw inputs to facilitate machinery vibration and displacement analysis.

Hardware Specifications

Mechanical Monitoring and TSI Characteristics

The 140471-01 module is engineered to maintain high-fidelity signal transmission for critical machinery protection. Proper eddy-current probe scaling is enforced through the module’s internal signal conditioning circuitry, ensuring that input voltages directly correlate to displacement metrics. The device supports gap voltage validation with -10 VDC targets, allowing for the detection of probe proximity faults before signal degradation occurs. To maintain precise rotor dynamics measurements, the module incorporates internal cross-talk suppression techniques, minimizing electromagnetic interference between adjacent channels and ensuring the integrity of low-amplitude vibration data within the 3500 rack environment.

Frequently Asked Questions

Q: Does the 140471-01 module support hot-swapping within the 3500 rack?

A: Yes, the module is designed for hot-swapping, allowing removal and insertion while the rack is powered without disrupting the operation of other modules.

Q: What is the purpose of the front panel USB-B port on this I/O module?

A: The USB-B port provides a local diagnostic and configuration interface for direct connection to a host workstation for module setup and data retrieval.

Field Installation Guidelines

1. Static Discharge Protection: Always use a wrist grounding strap when handling the module to prevent electrostatic discharge damage to internal logic circuits.
2. Backplane Engagement: Ensure the module is fully seated and the retention levers are locked to establish reliable contact with the rack backplane pins.
3. Shielding and Grounding: Connect cable shields to the designated terminals on the I/O block to maintain noise immunity; ensure the 3500 rack chassis is bonded to a common instrument ground.
4. Fiber-Optic Handling: When utilizing the 100Base-FX port, observe minimum bend radius requirements for the fiber-optic cabling to prevent signal attenuation.
