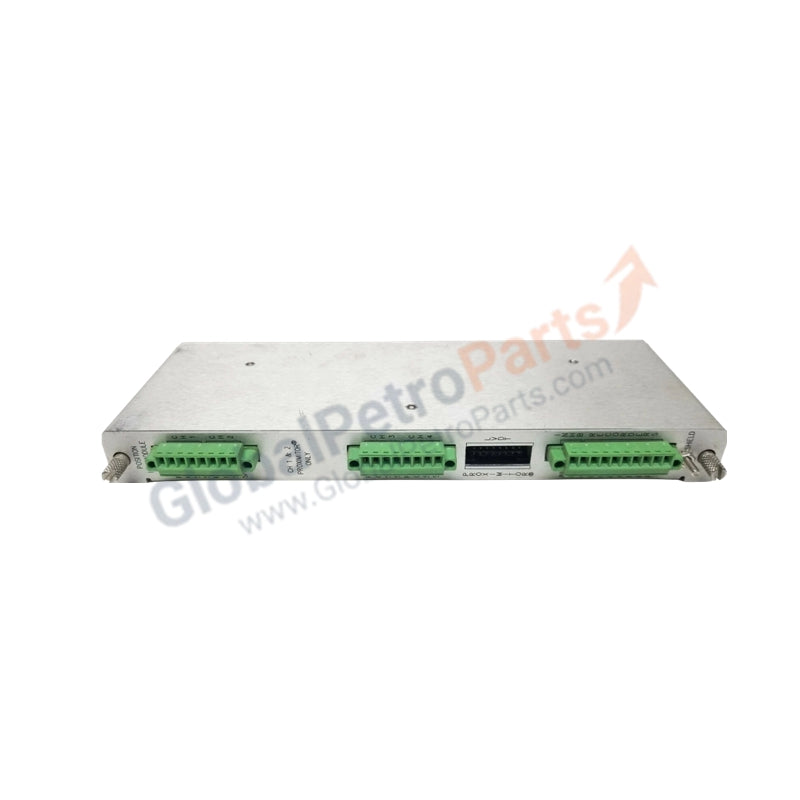

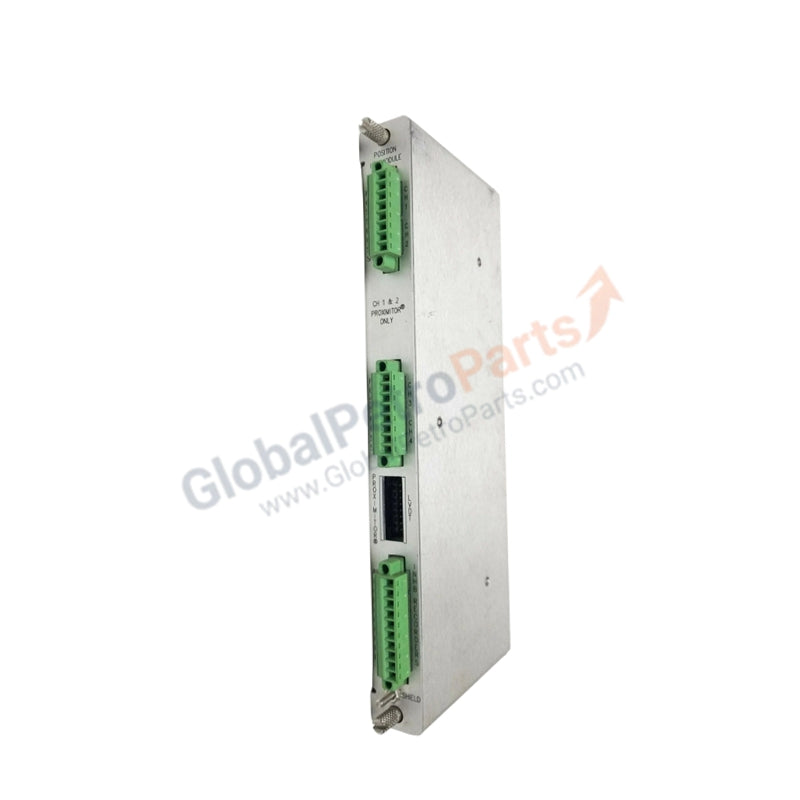

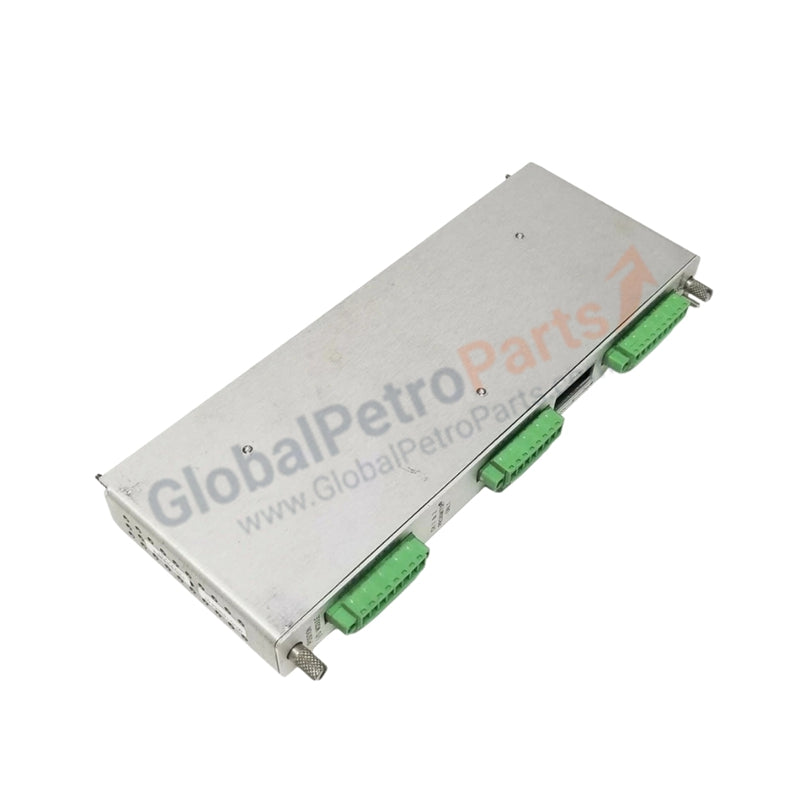

Bently Nevada 140471-02 I/O Module

Configured for sensor signal conditioning and data processing within 3500 series monitoring racks, the Bently Nevada 140471-02 (140471-02 I/O Module) provides direct physical and electrical execution of sensor input management. The module utilizes internal termination architecture to interface with field sensors, processing raw vibration, temperature, speed, and current signals for integration into higher-level monitoring systems.

Hardware Specifications

Mechanical Monitoring and TSI Characteristics

The 140471-02 module is engineered to support precise rotor dynamics analysis by maintaining signal integrity across the backplane bus. To ensure accurate eddy-current probe scaling, the module circuitry facilitates stable common reference grounding. When deploying transducers, the module supports gap voltage validation to maintain -10 VDC targets, ensuring that sensor proximity remains within specified linear operating ranges. Furthermore, effective cross-talk suppression is implemented through internal signal path isolation, preventing high-frequency noise from corrupting low-level vibration inputs critical for analyzing machine shaft displacement.

Frequently Asked Questions

Q: Does the internal termination design of the 140471-02 eliminate the need for field-side wiring changes?

A: The internal termination design allows for direct connection of sensor cabling to the module backplane, reducing the requirement for intermediate junction boxes and simplifying field loop wiring.

Q: Is this module capable of real-time spectral analysis on all 16 channels simultaneously?

A: The module architecture supports multi-channel data acquisition, with internal processing capabilities including Fast Fourier Transform (FFT) and time-domain analysis performed according to the configured sampling rates.

Field Installation Guidelines

1. Signal Shielding: Terminate cable shields at the designated ground lugs on the I/O module. Maintain shield continuity from the sensor to the module to minimize electromagnetic interference.
2. Backplane Seating: Ensure the module is fully inserted into the rack slot until the connector pins are firmly engaged. Secure the module using the front-panel captive screws to provide structural rigidity against chassis vibrations.
3. Loop Wiring: Observe standard wire gauge limits for the internal termination blocks. Ensure individual conductors are stripped to the required length to prevent short-circuiting between adjacent terminals.
4. Environment: Ensure the host rack is installed in an environment compliant with industrial temperature specifications to prevent thermal drift of analog input signal levels.
