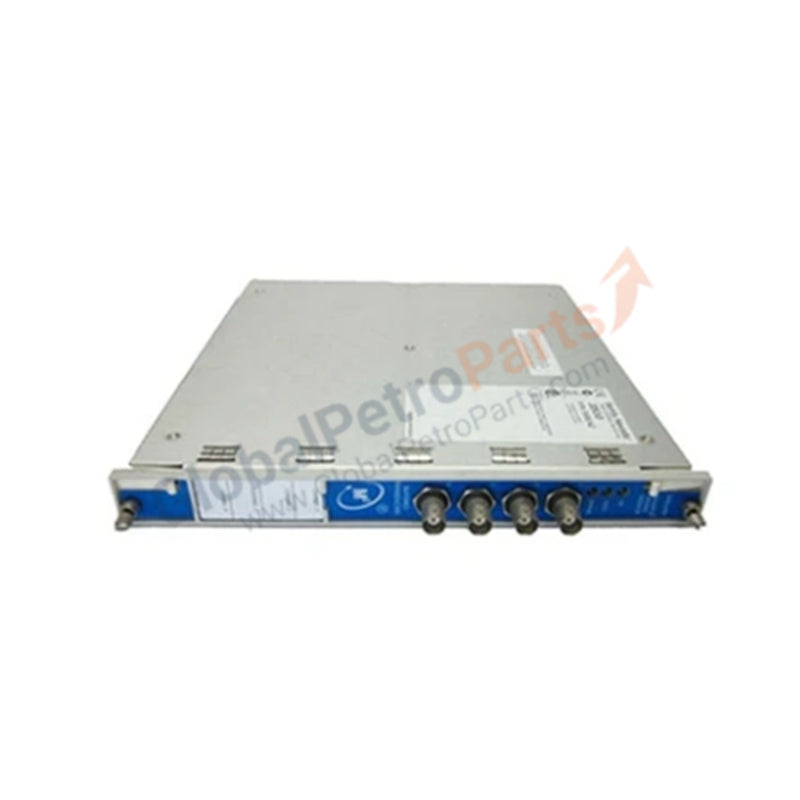

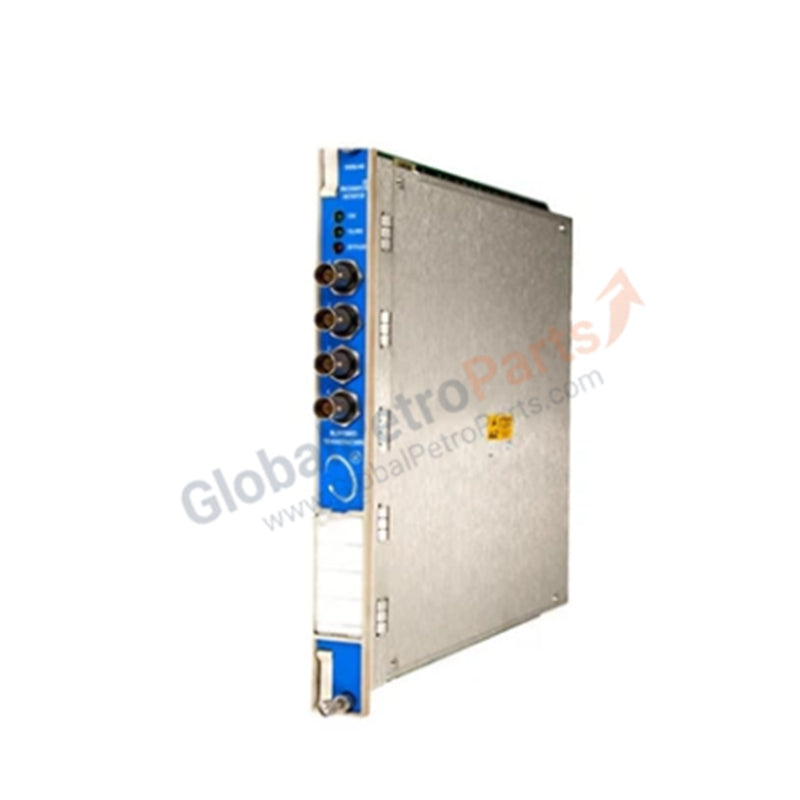

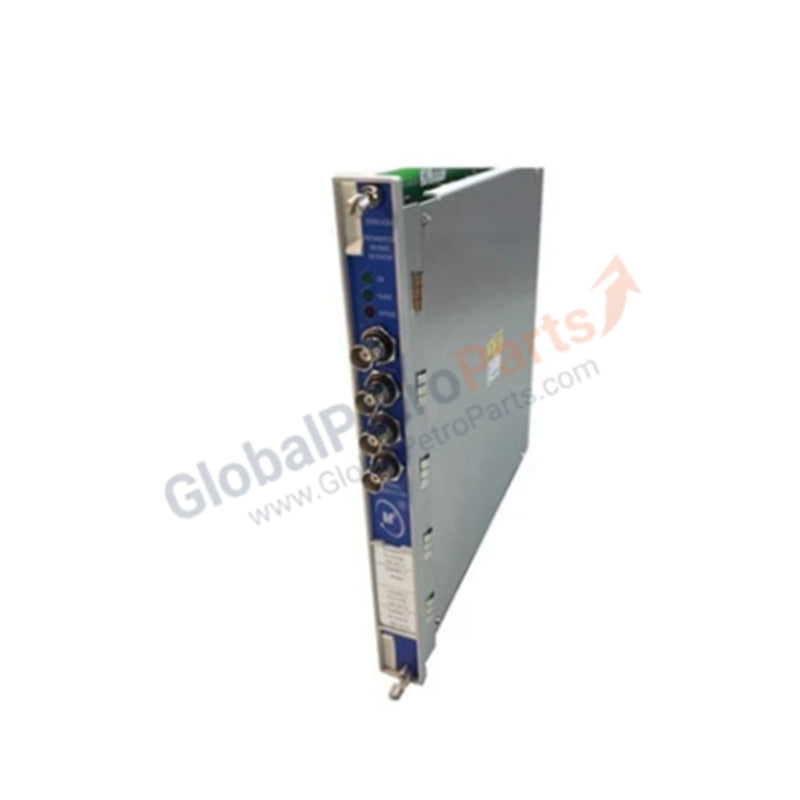

Bently Nevada 140734-01 3500/40M Proximitor Monitor I/O Module

Configured for high-speed vibration and displacement signal acquisition within 3500 Machinery Protection System platforms, the Bently Nevada 140734-01 (3500/40M Proximitor Monitor) provides direct physical and electrical execution for proximity sensor interface.

Hardware Specifications

Mechanical Monitoring & Eddy-Current Validation

The 140734-01 module performs essential signal conditioning for eddy-current proximity probes. Accurate system performance necessitates strict gap voltage validation, with nominal operating points typically aligned to -10 VDC to maintain linear transducer response. The module facilitates rotor dynamics monitoring by processing raw gap displacement into usable vibration amplitude data. Effective cross-talk suppression is achieved through the module's high-speed internal processing and fiber-optic communication architecture, which isolates the monitoring loop from electromagnetic interference. Users must ensure that probe scaling factors are programmed to match the specific physical transducer configuration to prevent scaling errors in vibration amplitude measurements.

Frequently Asked Questions

Q: Does the 3500/40M module support hot-swapping during normal operation?

A: Yes, the module supports hot-swapping. Before physical removal, ensure the slot configuration is managed in the rack interface software to prevent unwanted trip logic activation.

Q: What is the benefit of the fiber optic communication ports on this module?

A: The fiber optic ports provide electrical isolation from external ground loops and superior immunity to electromagnetic interference (EMI) in high-noise industrial environments compared to traditional copper-based signaling.

Field Installation Guidelines

1. Pre-Installation Preparation: Verify the mechanical integrity of the rack slots. Ensure the fiber optic patch cables are handled with correct bend-radius control to avoid attenuation.
2. Mounting: Align the module with the internal rack guides and insert firmly until the backplane connector is fully seated. Secure the module using the provided ejector latch mechanism.
3. Signal Cabling: Terminate proximity probe leads according to the system wiring diagram. Ensure that cable shields are grounded at the designated rack entry point to mitigate induced signal noise.
4. Fiber Optic Connection: Connect the 100Base FX fiber optic cables to the module ports. Ensure port cleanliness is maintained to prevent signal loss across the optical interface.
5. System Validation: Power the rack and observe the LED status indicators. Perform a channel check in the 3500 configuration software to verify that the incoming probe signal levels match field-measured gap voltages.
