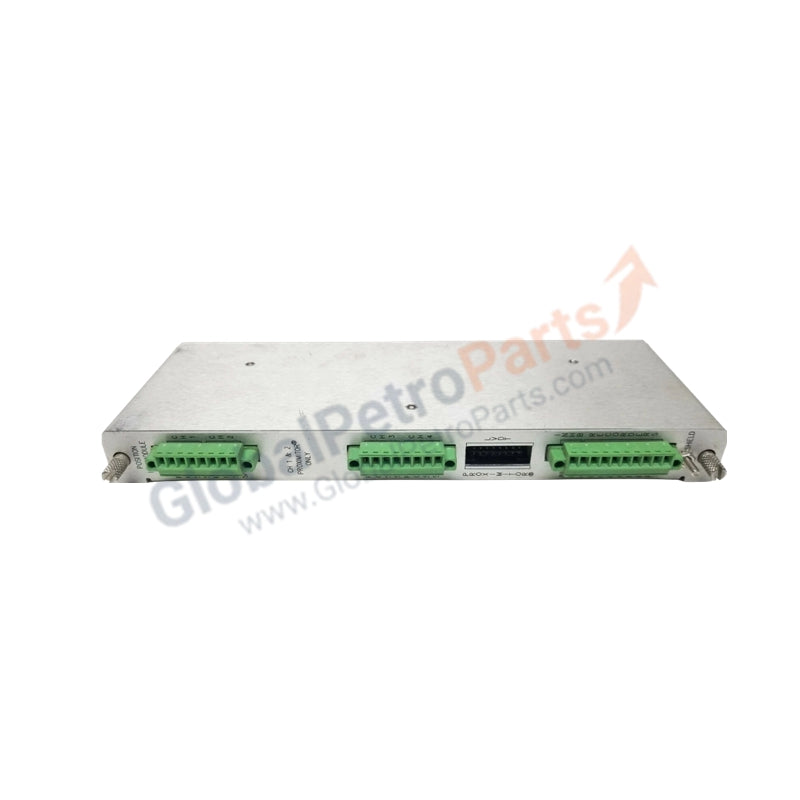

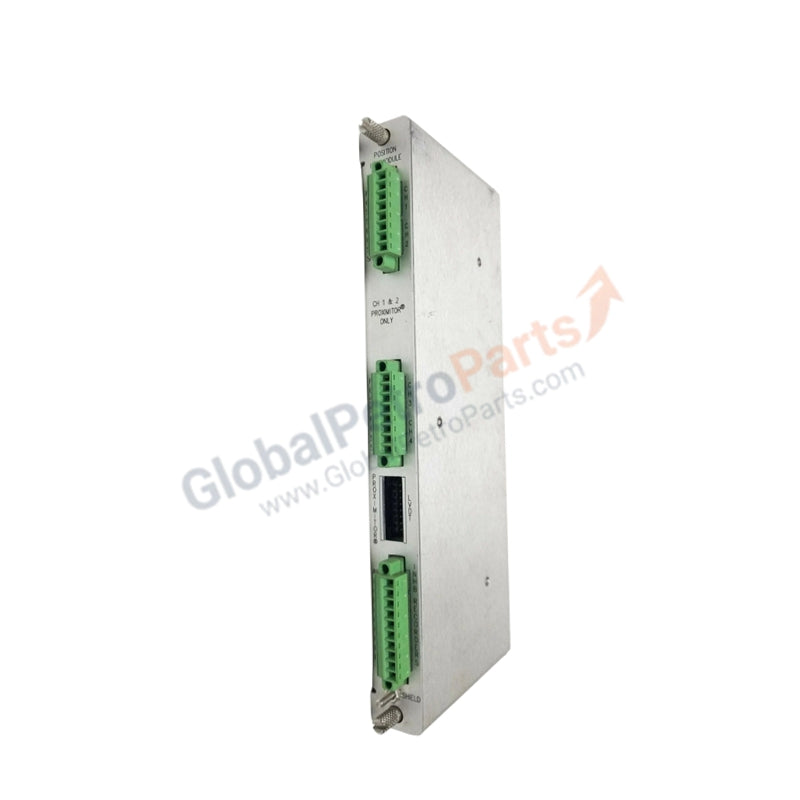

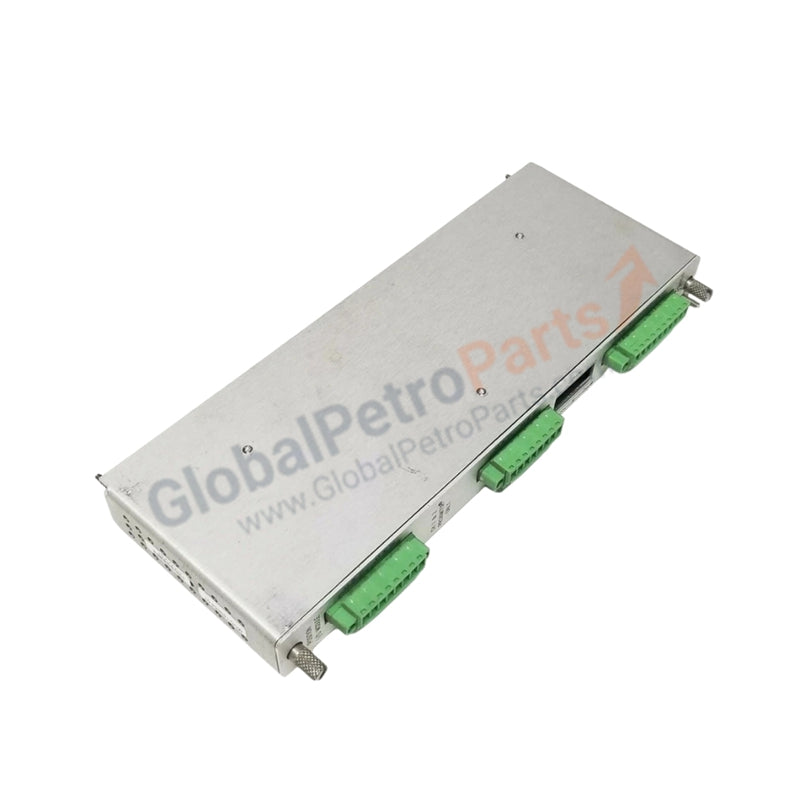

Bently Nevada 147663-01 Display Interface Module

Configured for visual data representation in 3500 series monitoring systems, the Bently Nevada 147663-01 (147663-01) I/O Module serves as the primary display interface utilized to execute VGA output and touch screen interaction across 3500 monitoring platforms. This hardware component translates rack-based system data into a graphical format compatible with external display units for real-time machine condition oversight.

Hardware Specifications

Mechanical Monitoring and TSI Characteristics

The 147663-01 module is engineered to support the visualization of complex machine data derived from eddy-current probe inputs and other sensor types within the 3500 rack. By facilitating a VGA output, the module allows operators to monitor variables such as rotor dynamics and shaft displacement in real-time. The interface supports integration with rack-mounted displays, ensuring that gap voltage validation and cross-talk suppression metrics remain visible for diagnostic purposes. This visual feedback is essential for maintaining constant awareness of machinery health without requiring direct interaction with the backplane processing modules.

Frequently Asked Questions

Q: Can the 147663-01 module support more than two displays on a single 3500 rack?

A: No, the 3500 system architecture is configured to support a maximum of two display units per rack to maintain data update rates and bus communication stability.

Q: Is this module hot-swappable while the 3500 rack is active?

A: Yes, the module supports hot-swapping. It can be removed or installed into a powered rack without necessitating a system shutdown, provided the surrounding slot configuration allows for safe physical access.

Field Installation Guidelines

1. Mounting Integrity: Select the appropriate mounting style (19-inch EIA rack, face mount, or panel mount) based on site requirements. Ensure all four mounting points are secured to prevent vibration-induced loosening.
2. Interface Cabling: Utilize shielded VGA cables to connect the display interface to the external display unit. Ground the cable shield at the display end if noise or display flicker is observed.
3. Power Requirements: Ensure the power budget for the 3500 rack accounts for the 15.5 watts maximum consumption of the display interface and unit combination to avoid overloading the rack power supply.
4. Touch Screen Calibration: After physical installation and power-up, perform touch screen calibration via the software interface to ensure accurate input registration for system navigation.
