Bently Nevada 16710-08 Armored Interconnect Cable

Product Description

The 16710-08 armored interconnect cable from Bently Nevada is engineered for dependable signal transmission between vibration sensors, transmitters, and monitoring systems in industrial settings. Its ruggedized construction and fully shielded design minimize electromagnetic interference (EMI) and ensure signal fidelity over the full operating range.

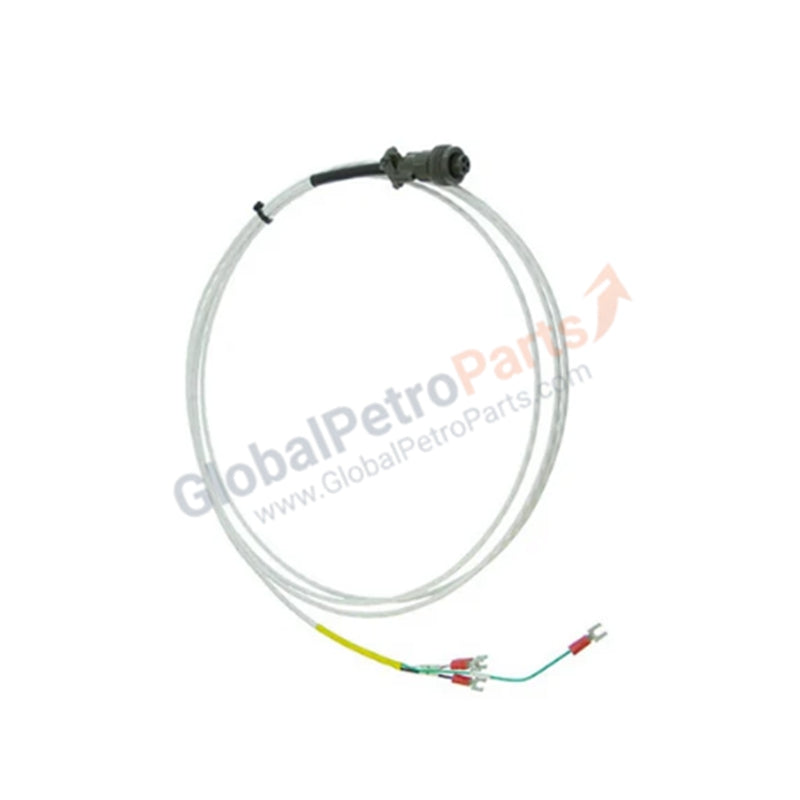

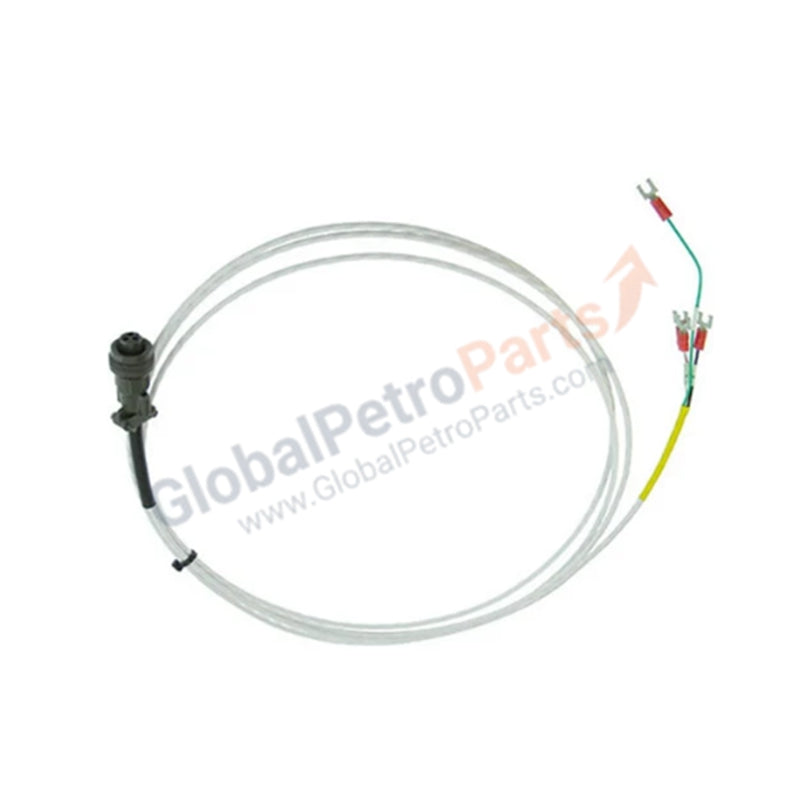

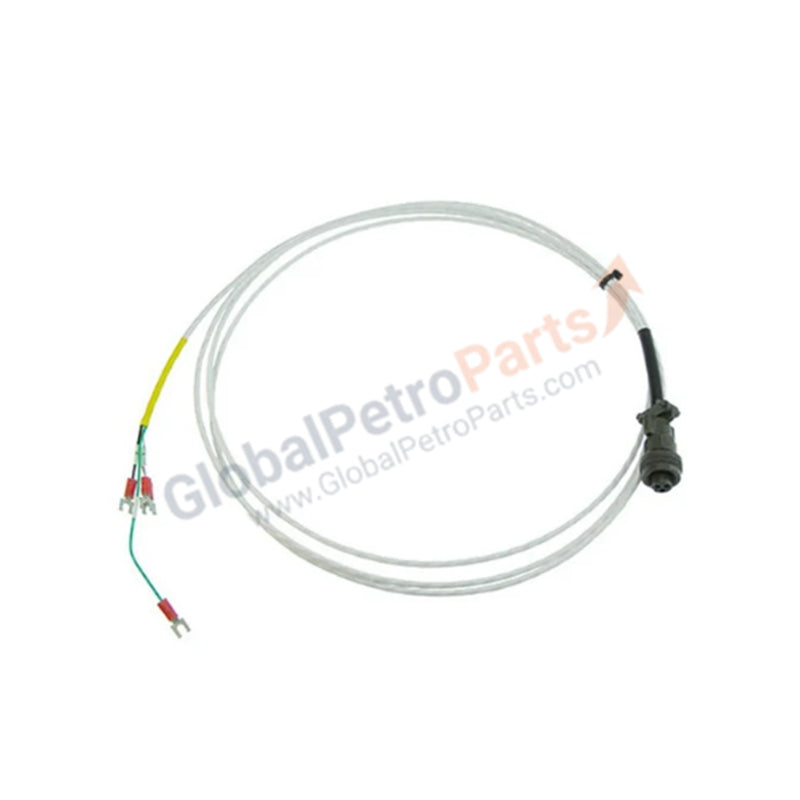

This cable features a 3-conductor configuration with precision terminations: a standard 3-pin circular plug (compatible with Bently Nevada proximity probe or transducer interfaces) on one end and pre-crimped terminal lugs on the other for direct connection to terminal blocks or I/O modules.

Technical Specifications

• Manufacturer: Bently Nevada (a Baker Hughes company)

• Model / Part Number: 16710-08

• Cable Type: Armored interconnect cable (flexible metal conduit over inner jacket)

• Conductors: 3

• Conductor Size: 22 AWG (0.5 mm² stranded copper)

• Shielding: Dual-layer—aluminum foil + tinned copper braid (≥85% coverage)

• Insulation: PVC, rated for industrial chemical resistance

• Jacket Material: Polyurethane or PVC over stainless steel braid armor

• Connector A: 3-pin circular plug (MS-style or Bently-specific mating interface)

• Connector B: Pre-installed insulated terminal lugs (ring or fork type, tin-plated)

• Length: 8 feet (2.44 meters ±2%)

• Operating Voltage: 600 V RMS (continuous)

• Current Rating: 10 A per conductor (at 60 °C ambient)

• Temperature Range: –40 °C to +85 °C

• Bend Radius: Minimum 6× cable diameter

• Weight: Approx. 0.82 kg (1.8 lbs)

• Country of Origin: United States

Typical Applications

• Connecting 3300/3300 XL or 6000 series proximity probes to extension cables or monitor inputs

• Signal routing in turbine, compressor, and gearbox monitoring systems

• Harsh environments requiring mechanical protection against abrasion, crushing, or rodent damage

FAQ
Q: Is the armor grounded?
A: Yes—the metallic braid is electrically continuous and typically bonded to chassis ground at the connector shell, providing EMI shielding and safety grounding.

Q: Can this cable be used outdoors?
A: Yes, provided the connectors are properly sealed. The PVC/polyurethane jacket and stainless armor offer resistance to moisture, oil, and UV exposure.

Q: How does the 16710-08 differ from the 16710-15?
A: The suffix denotes length: “08” = 8 ft, “15” = 15 ft. Electrical and mechanical specs are otherwise identical within the same subfamily.
