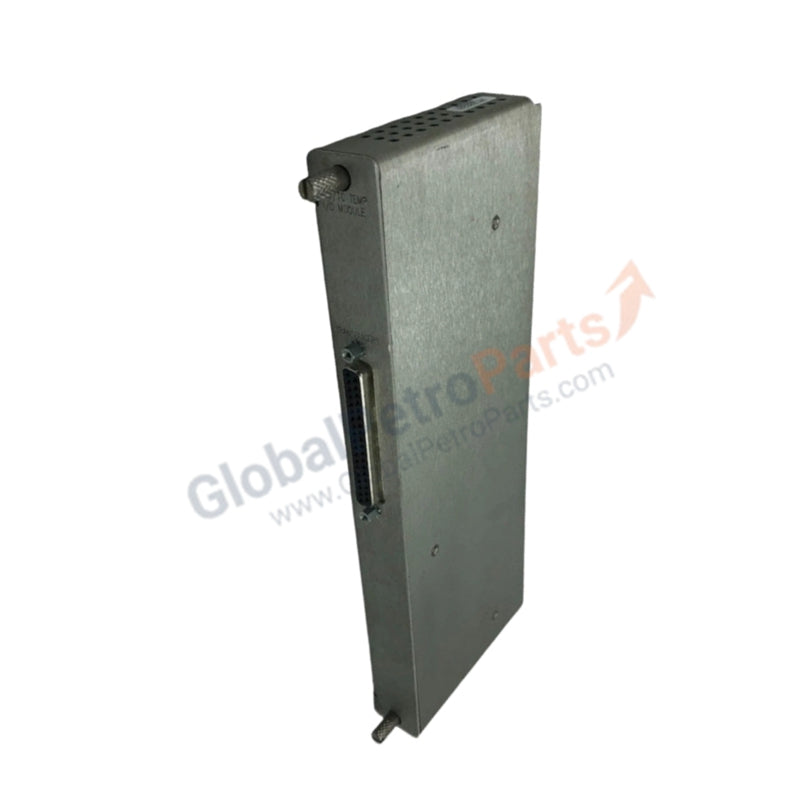

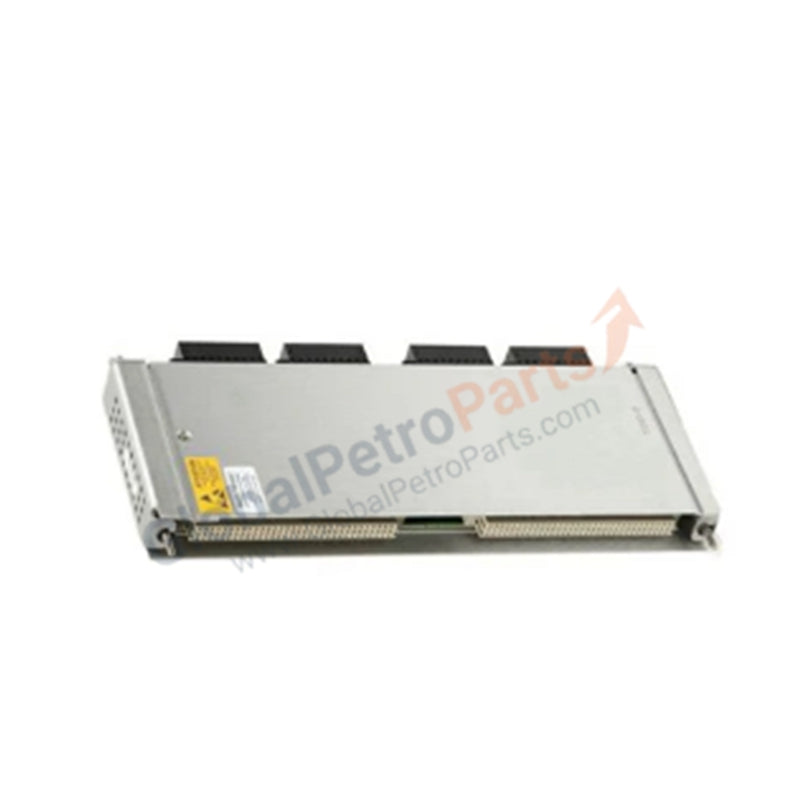

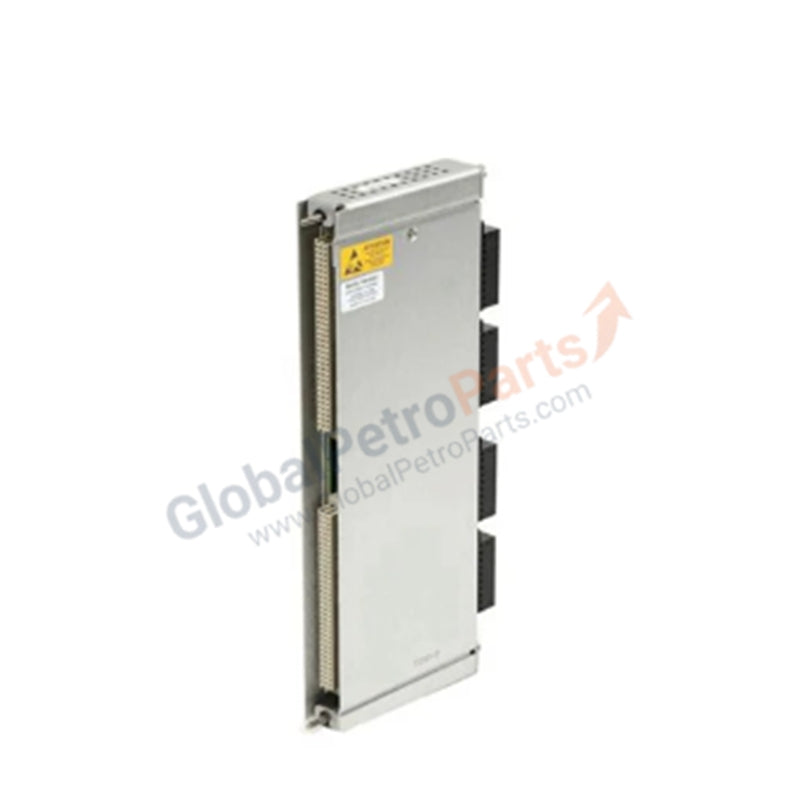

Bently Nevada 172103-01 16 Channel Temp I/O Module

The Bently Nevada 172103-01, also cataloged as the 3500/65 I/O Module, operates as a dedicated hardware component for temperature signal acquisition and conditioning within 3500 Monitoring System platforms.

Hardware Specifications

Mechanical Monitoring and TSI Characteristics

The 172103-01 module is designed to interface with RTD and isolated thermocouple sensors, providing high-density input capability for thermal monitoring of machinery. The module incorporates advanced circuitry to ensure cross-talk suppression between channels, which prevents measurement inaccuracies in environments with high electromagnetic interference. While specifically focused on thermal parameters, proper installation ensures these inputs contribute to the overall rotor dynamics assessment by providing temperature-compensated readings for thermal expansion analysis. Signal integrity is maintained through cold junction compensation circuitry when utilizing thermocouple inputs, ensuring precise conversion of low-level millivolt signals into digitized temperature data for the monitoring system.

Frequently Asked Questions

Q: Is this I/O module compatible with both RTD and thermocouple inputs simultaneously?

A: The 3500/65 module configuration dictates the input type per channel. Verify that the software configuration matches the physical sensor type connected to the internal terminal blocks to prevent measurement errors or damage to the input circuitry.

Q: Does the 172103-01 module support hot-swapping within the 3500 rack?

A: Yes, the module supports hot-swapping. However, ensure that the rack backplane power is stable before removal or insertion. Do not remove the module while the system is actively performing safety-critical monitoring without following established bypass procedures.

Field Installation Guidelines

1. Mounting: Insert the module into the designated slot in the 3500 rack. Ensure the backplane connector aligns with the receptacle and the latching mechanism is fully engaged.
2. Wiring: Terminate signal wires directly to the internal terminal blocks. Use shielded twisted-pair cabling to minimize noise pickup.
3. Grounding: Terminate the cable shield at the provided terminal pins on the module to maintain a continuous ground reference for the sensor signals.
4. Validation: Use the 3500 configuration software to map the input channels and verify that the resistance or voltage readings match the expected sensor values at ambient conditions.
