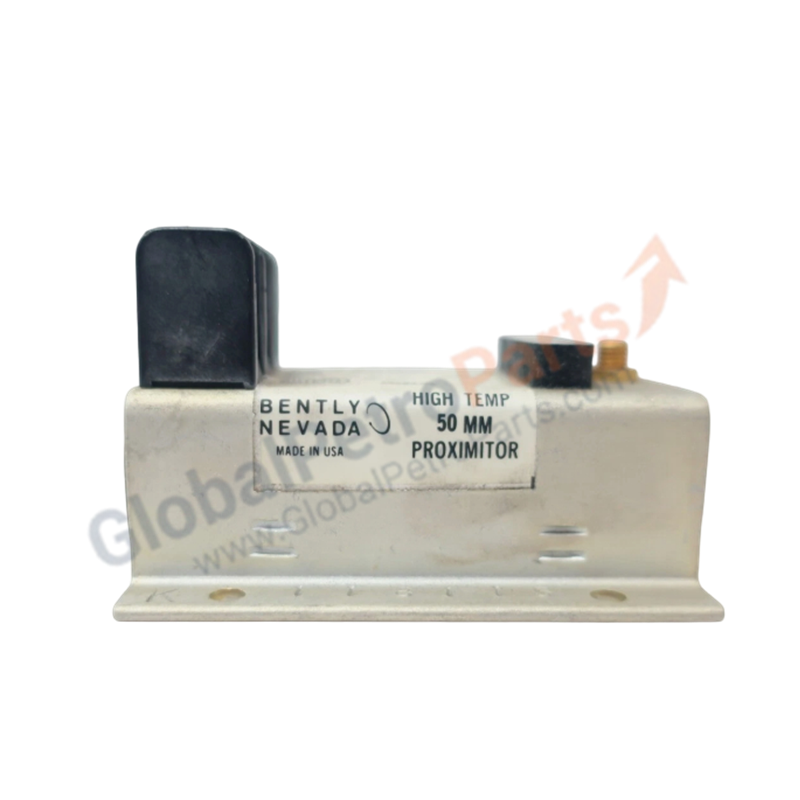

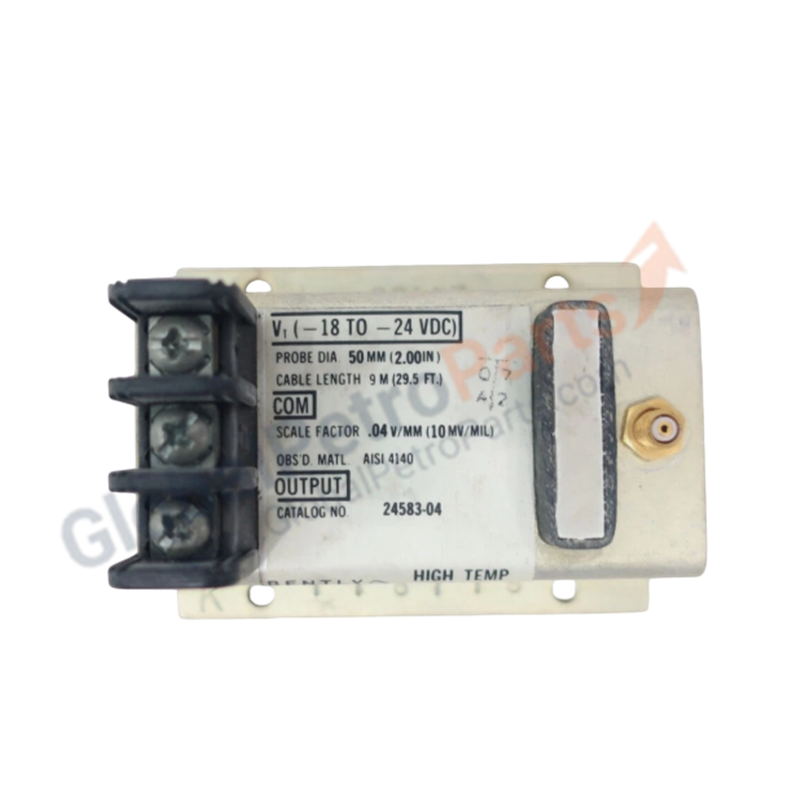

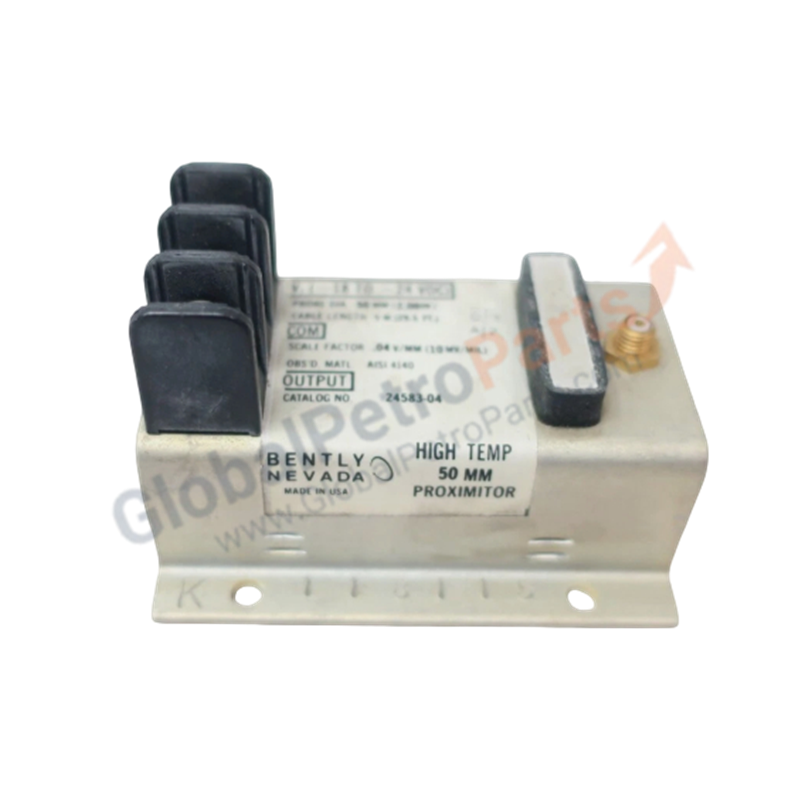

Bently Nevada 24583-04 High Temperature Proximitor Sensor

The Bently Nevada 24583-04, also cataloged as the 24583-04 Proximitor Sensor, operates as a dedicated hardware component for high-temperature displacement and vibration monitoring within 3500 Series platforms.

Hardware Specifications

Mechanical Monitoring and TSI Characteristics

The 24583-04 utilizes specialized eddy-current probe scaling to maintain signal linearity in high-temperature environments. Successful integration requires precise gap voltage validation, with nominal targets typically set at -10 VDC at the monitor input to ensure the sensor operates within its calibrated linear range. In high-thermal applications, material expansion may affect the air gap; therefore, users must account for temperature-induced gap drift during commissioning. Furthermore, the module design incorporates cross-talk suppression to preserve signal integrity when multiple sensors are bundled within close proximity, preventing electromagnetic interference from contaminating the shaft vibration and position data.

Frequently Asked Questions

Q: Is this sensor compatible with standard 3500 rack power supplies?

A: Yes, the sensor operates within an input range of -17.5 VDC to -26 VDC, which is compatible with standard Bently Nevada 3500 rack power configurations. Verify the specific wiring polarity, as these sensors typically require negative excitation voltage.

Q: How should the probe be installed to accommodate the 538 deg C temperature rating?

A: Ensure the probe mounting bracket is constructed from materials with low thermal expansion coefficients to maintain the set gap voltage. Use high-temperature rated cabling and ensure adequate strain relief for the cable transition zone where temperatures drop below the 538 deg C sensor rating.

Field Installation Guidelines

1. Mounting: Secure the 50 mm probe using the appropriate mounting adapter. Ensure the probe tip is perpendicular to the shaft target surface to prevent measurement errors.
2. Gap Setting: Using a feeler gauge or the associated monitor's DC gap voltage readout, set the initial gap to the required distance. Ensure the reading is approximately -10 VDC to maintain the sensor's linear operational range.
3. Wiring: Connect the sensor leads to the signal terminal blocks. Use shielded twisted-pair cabling and ensure the shield is grounded at the rack instrumentation common point to prevent ground loops.
4. Environment: Verify that the cable routing avoids areas exceeding the cable's specific temperature rating. Ensure all cable connectors are sealed against moisture and industrial contaminants.
