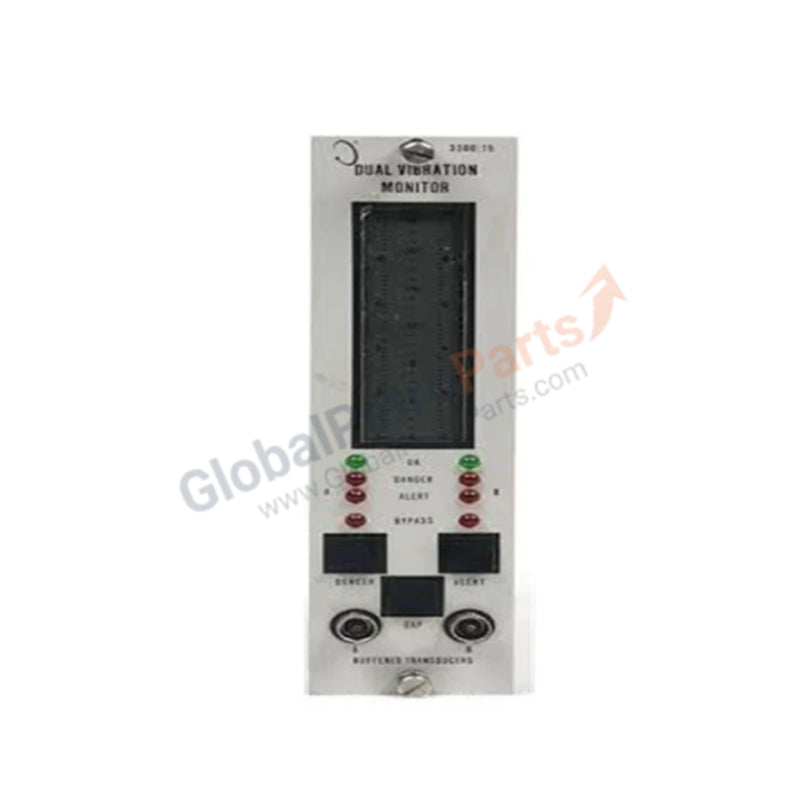

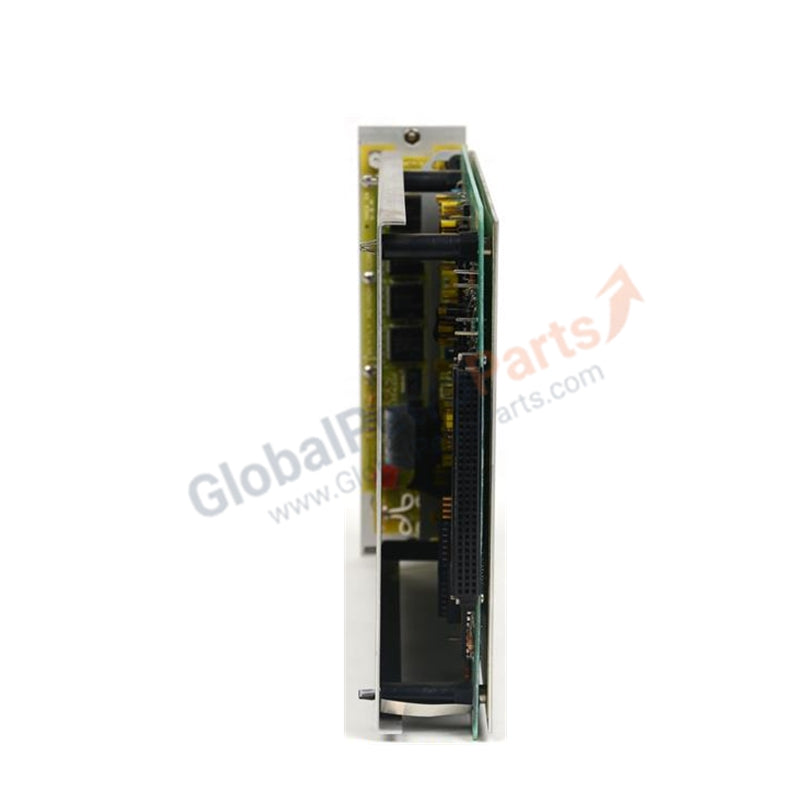

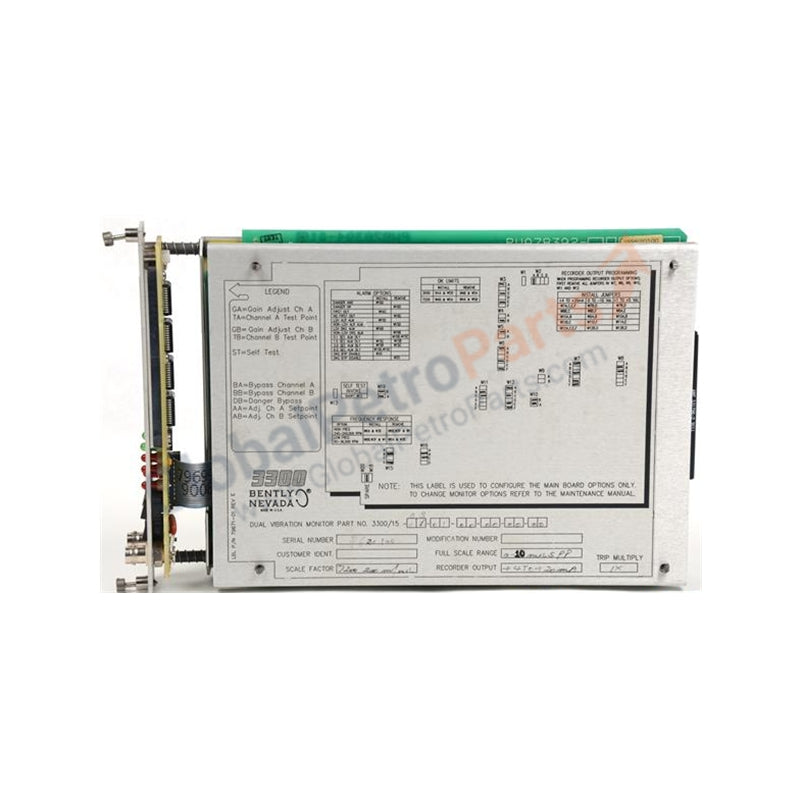

Bently Nevada 3300/15-03-01-01-00-00-00 Dual Channel Vibration Monitor Module

Overview

The Bently Nevada 3300/15-03-01-01-00-00 Dual Channel Vibration Monitor Module is a high-precision component in the 3300 Series Machinery Protection System. It continuously monitors vibration levels on rotating machinery to detect imbalance, misalignment, and bearing wear before critical failure occurs. Built for industrial reliability, it ensures continuous protection and operational integrity in demanding environments.

Technical Specifications

• Model Number: 3300/15-03-01-01-00-00-00

• Type: Dual Channel Vibration Monitor

• Manufacturer: Bently Nevada

• System: 3300 Series Machinery Protection

• Input Channels: 2 (proximity probe / seismic transducer)

• Output Signals: Buffered BNC outputs for diagnostics

• Alert / Danger Levels: Configurable per channel

• Rack Compatibility: Standard 3300 rack slot

• Power Supply: Via 3300 rack backplane

• Operating Temperature: -30°C to +65°C

• Humidity: Up to 95% non-condensing

• EMC Compliance: IEC 61326, API 670

• Construction: Aluminum front panel, EMI-shielded enclosure

• Dimensions: 25.4 mm (W) × 279 mm (H) × 218 mm (D)

• Weight: Approx. 1.2 kg

Key Features

• High-Accuracy Detection: Captures minute vibration changes for predictive maintenance.

• Dual-Channel Input: Enables redundant or differential measurement modes.

• Flexible Sensor Support: Accepts proximity and seismic vibration sensors.

• System Integration: Fully compatible with 3300 monitoring and protection architecture.

• Rugged Build: Industrial-grade design for 24/7 operation under vibration and temperature extremes.

• Diagnostic Data: Provides real-time event, alarm, and trend outputs for analysis.

Application Scenarios

Ideal for critical rotating assets including:

• Steam and gas turbines

• Compressors and blowers

• Pumps and fans

• Motors and generators

• Machinery in petrochemical, power, and process industries

The dual-channel setup enhances redundancy and reliability in continuous monitoring systems.

FAQ

Q1: Is it backward compatible with older 3300 systems?
Yes, it can operate with standard 3300 racks and modules without modification.

Q2: What sensors are recommended?
Supports Bently Nevada proximity probes and seismic transducers for shaft and casing vibration.

Q3: What’s the main improvement over 3300/14?
The 3300/15 series offers dual-channel capability and improved vibration resolution for advanced diagnostics.
