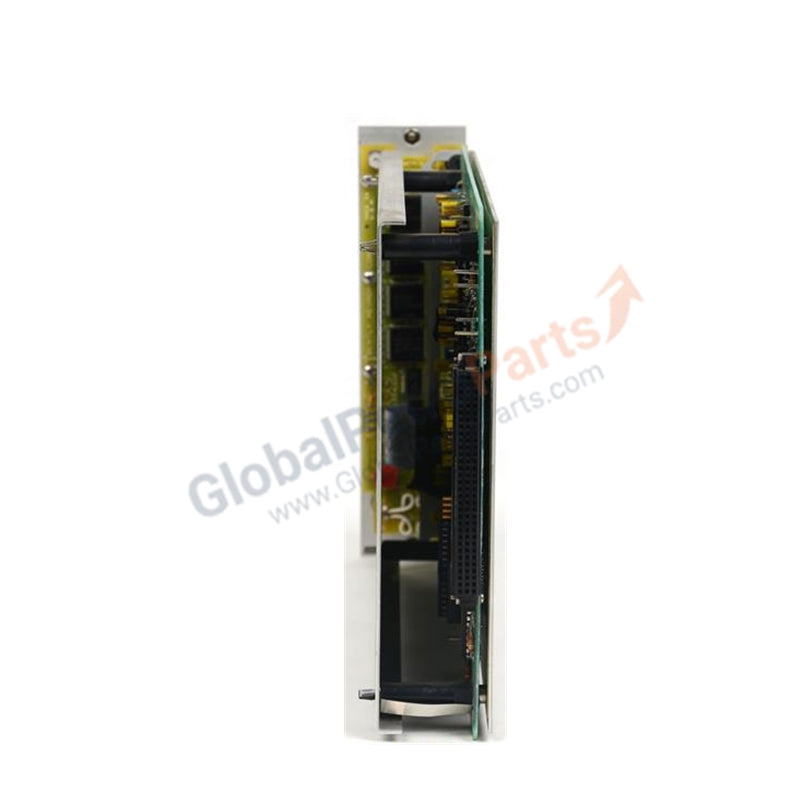

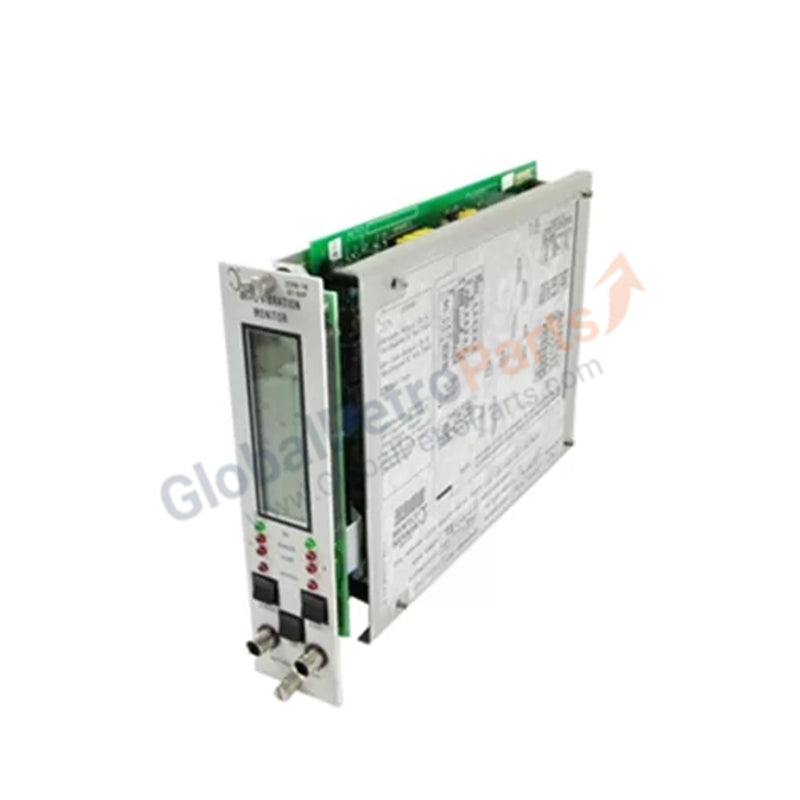

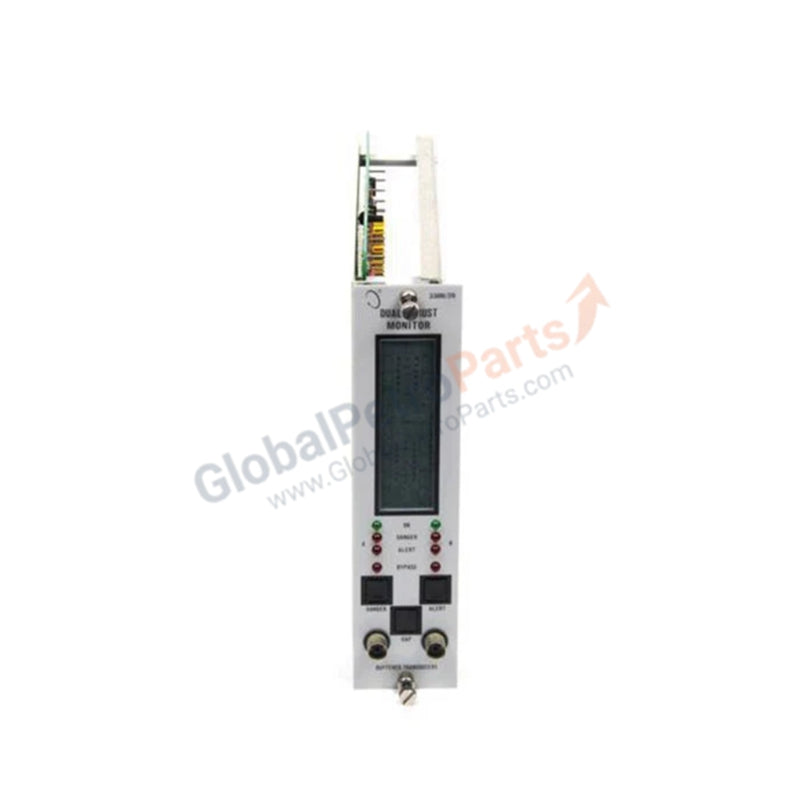

Bently Nevada 3300/16-11-01-01-00-01-02 XY/Gap Dual Vibration Monitor

Overview

The Bently Nevada 3300/16-11-01-01-00-01-02 is an XY/Gap Dual Vibration Monitor engineered for continuous protection of critical rotating machinery. It tracks radial vibrations across X and Y axes and monitors average shaft position, delivering real-time data to prevent potential equipment failures. Its robust rack-mounted design ensures seamless integration with the 3300 Series monitoring system, meeting industry-standard API 670 specifications for accuracy and reliability.

Technical Specifications

• Model Number: 3300/16-11-01-01-00-01-02

• Product Type: XY/Gap Dual Vibration Monitor

• Manufacturer: Bently Nevada (USA)

• Inputs: Two independent proximity probe/Proximitor® channels

• Measurements: Radial vibration (X/Y axes) and average shaft position (gap)

• Frequency Response: 10 Hz – 10 kHz

• Outputs: Conditioned signals for alarms, diagnostics, and machinery protection

• Compliance: API 670 standard

• Mounting: Rack-based installation

• Power Supply: Rack powered via regulated DC from 3300/12 Power Supply Module

Key Features

• Dual-channel XY monitoring for comprehensive radial vibration analysis

• Average shaft position monitoring for precise gap assessment

• API 670 compliant for industry-standard precision and reliability

• Rack-mounted modular design for easy installation and system expansion

• Continuous alarm outputs for proactive machinery protection

• Compatible with multiple proximity probe/Proximitor® systems

• Engineered for stable operation in industrial environments

Application Scenarios

• Monitoring turbines, compressors, and pumps in power generation or process plants

• Real-time machinery protection in harsh industrial settings

• Integration with 3300 Series modules for comprehensive vibration analysis

FAQ

Q1: Can this module monitor both X and Y radial vibrations simultaneously?
Yes, it measures both X and Y axes simultaneously while also tracking shaft gap.

Q2: Is it compatible with all 3300 Series modules?
It integrates seamlessly with other 3300 Series XY/Gap modules and the 3300/12 Power Supply.

Q3: What environmental conditions can it handle?
It is rated for typical industrial temperatures and designed for long-term reliable operation.
