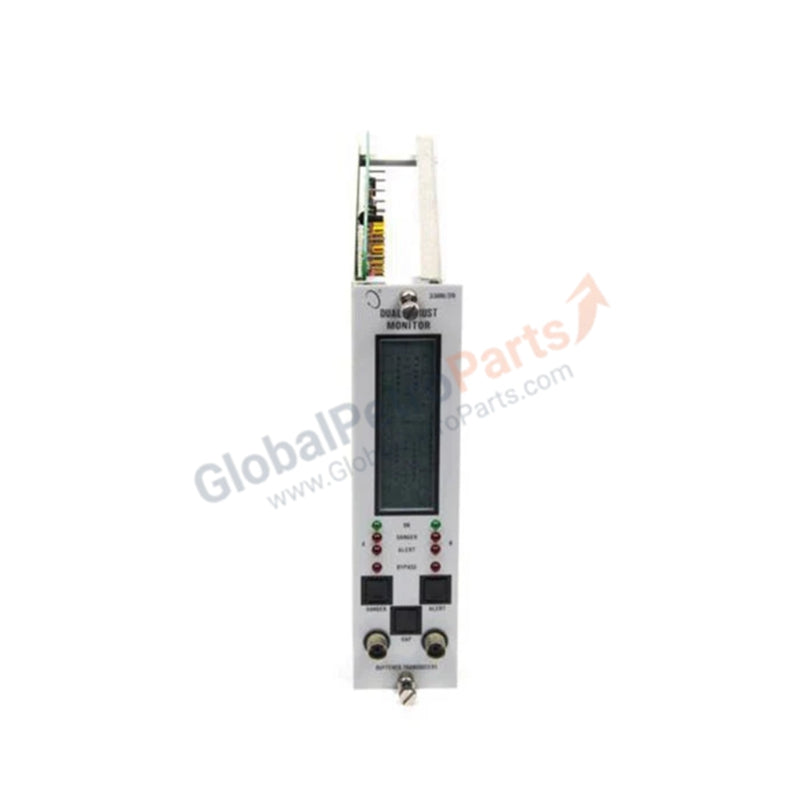

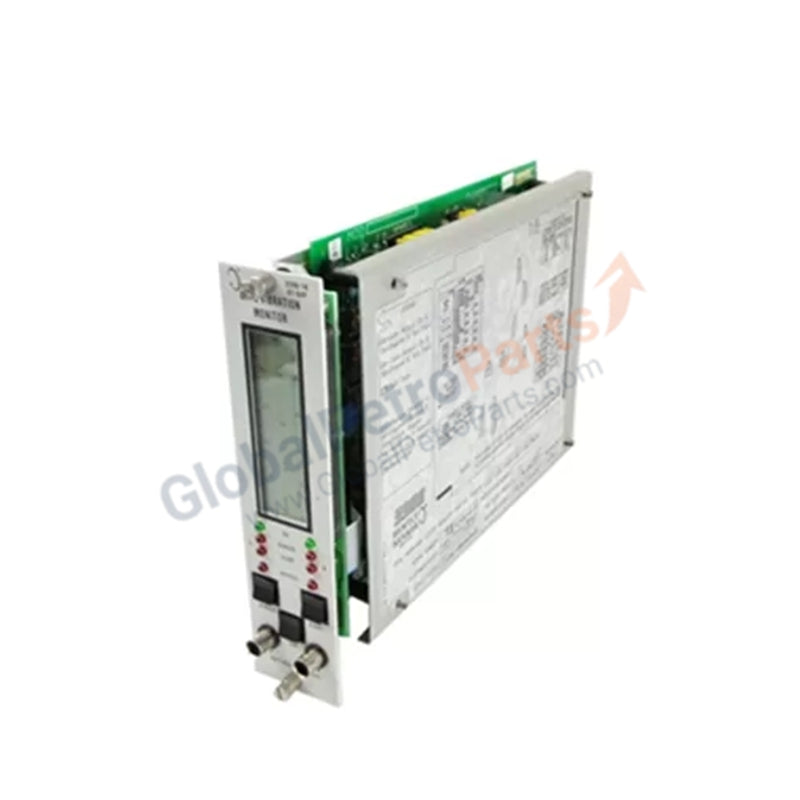

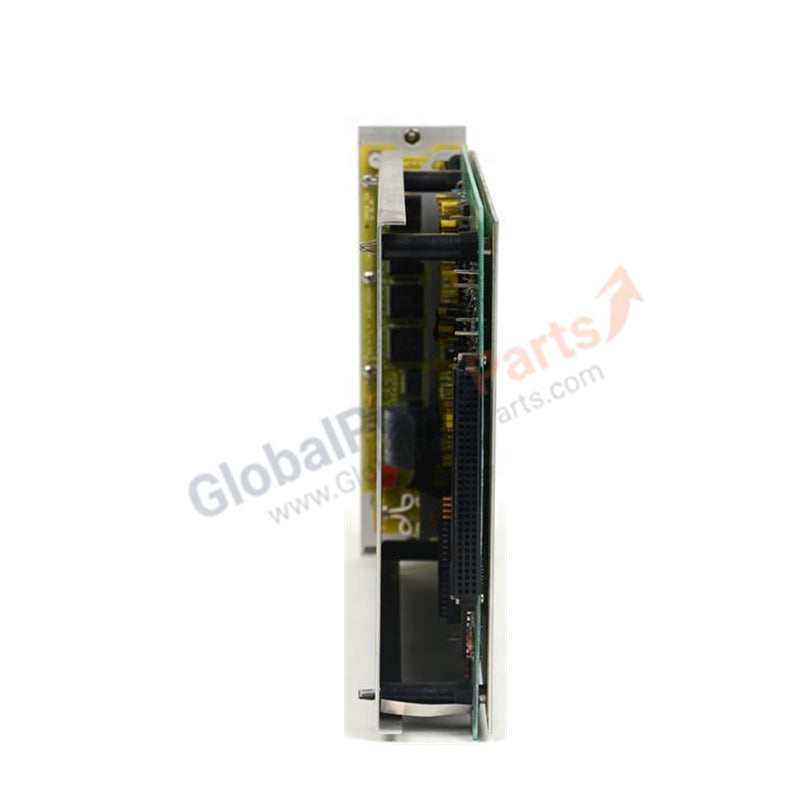

Bently Nevada 3300/16-12-01-01-00-00-00 XY/GAP Dual Vibration Monitor Module

Overview

The Bently Nevada 3300/16-12-01-01-00-00-00 is a high-precision XY/GAP dual vibration monitor designed for continuous measurement of shaft vibration and gap displacement in industrial rotating machinery. It ensures reliable detection of mechanical deviations and integrates seamlessly with the 3300 Series monitoring architecture. Built for harsh industrial environments, this module provides consistent performance for critical machinery protection.

Key Features

• Dual Monitoring: Measures both X/Y radial vibrations and GAP displacement simultaneously for comprehensive machine diagnostics.

• Precision Data: Offers accurate outputs to support predictive maintenance and operational analysis.

• System Compatibility: Fully compatible with Bently Nevada 3300 Series racks and standard proximity probes.

• Rugged Design: Engineered for extended temperature range and industrial reliability.

• Continuous Protection: Provides relay and buffered outputs to ensure uninterrupted machinery monitoring.

• Modular Maintenance: Simplifies installation, replacement, and upgrades within rack-based systems.

Technical Specifications

• Manufacturer: Bently Nevada

• Model Number: 3300/16-12-01-01-00-00-00

• Product Type: XY/GAP Dual Vibration Monitor

• Input Channels: Dual-channel XY and GAP inputs

• Output Channels: Relay and buffered outputs

• Power Supply: Integrated with standard 3300 Series rack power

• Operating Temperature: -40°C to +85°C

• Country of Origin: USA

• Warranty: 1-year standard factory warranty

Application Scenarios
Ideal for monitoring turbines, compressors, pumps, and motors in industrial plants where continuous vibration analysis and shaft position tracking are critical for preventive maintenance and failure avoidance.

FAQ
Q: Can this module be used with older 3300 Series racks?
A: Yes, it is compatible with standard 3300 Series rack configurations and probes.

Q: What type of transducers does it support?
A: Accepts standard 3300 Series proximity probes for XY and GAP measurements.

Q: What is the operating temperature range?
A: The module operates reliably from -40°C to +85°C.

Q: How does it integrate with a plant monitoring system?
A: Provides relay and buffered outputs suitable for connection to DCS or predictive maintenance systems.
