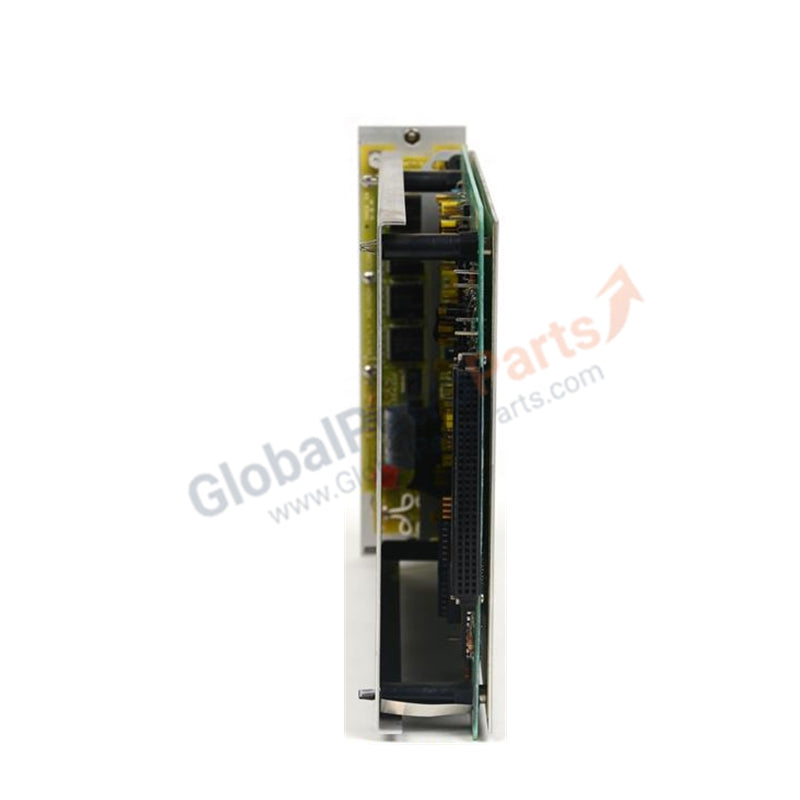

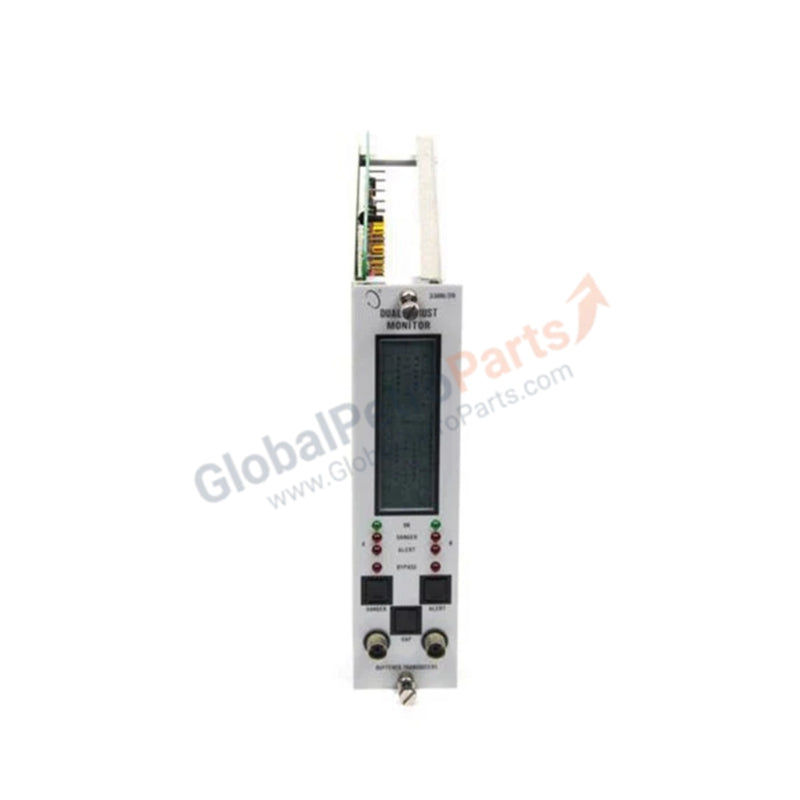

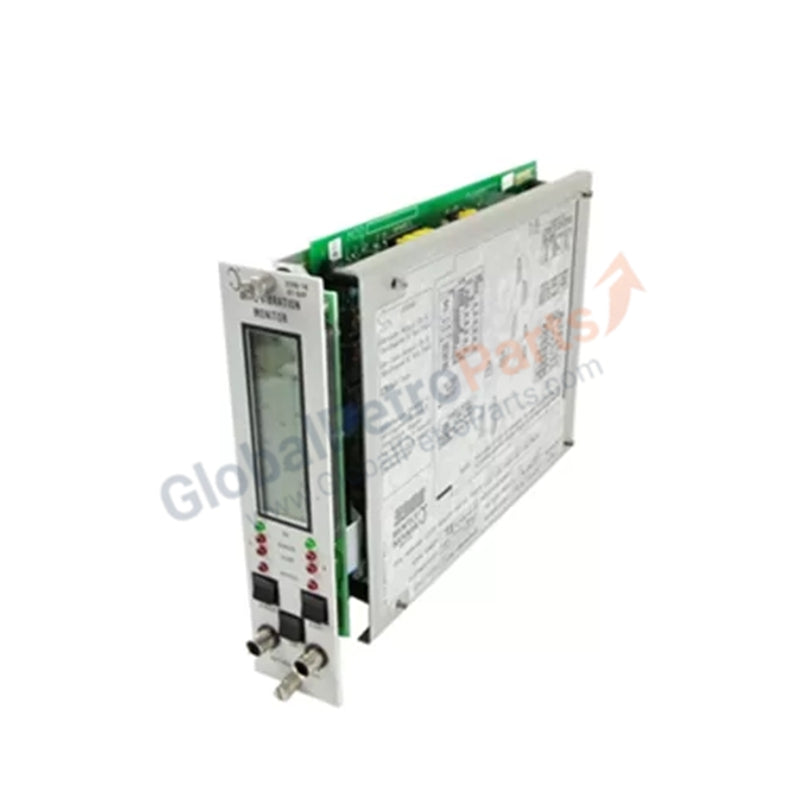

Bently Nevada 3300/16-14-01-01-00-00-00 Dual Vibration Monitor Module

Overview

The Bently Nevada 3300/16-14-01-01-00-00-00 is a dual-channel vibration monitoring module engineered for continuous machinery protection. It measures radial vibration and axial gap to provide real-time insight into machinery health. Designed for integration with 3300 Series racks, the module ensures reliable monitoring and early detection of vibration and alignment anomalies.

Technical Specifications

• Manufacturer: Bently Nevada

• Model Number: 3300/16-14-01-01-00-00-00

• Product Type: Dual Vibration Monitor

• Category: Vibration Monitoring

• Input Signals: Accepts one or two proximity probe signals

• Input Impedance: 10 kΩ

• Power Consumption: 2 W (nominal)

• Sensitivity: User-selectable: 100 mV/mil (4 V/mm) or 200 mV/mil (8 V/mm)

• Signal Conditioning Accuracy (at +25 °C / +77 °F): ±0.33% typical, ±1% maximum, +2% with 2X Trip Multiply, +3% with 3X Trip Multiply

• Resolution: Alarms adjustable to ±1.6% of full scale

• Repeatability: ±0.39% of full scale

• Gap Alarm Time Delay: 6 seconds

• Alarm Setpoints: Adjustable from 0–100% of full scale for vibration and gap

• Alarm Relay: Epoxy-sealed relay, one module per channel (at least one relay required per system)

• Trip Multiply: Configurable via user settings

• Operating Temperature: Standard 3300 Series rack environment

Key Features

• Dual-channel monitoring for comprehensive vibration coverage

• Adjustable gap and vibration alarm setpoints for precise protection

• Epoxy-sealed relay contacts for reliability in industrial environments

• Compatible with 3300 Series racks and proximity probes

• Continuous real-time monitoring minimizes risk of machinery failures

Application Scenarios

Ideal for monitoring turbines, compressors, motors, and pumps where both vibration and shaft alignment must be continuously tracked. Suitable for harsh industrial environments requiring high-accuracy diagnostics.
