Bently Nevada 3300 XL 8mm 330101-00-14-10-02-00 Eddy Current Proximity Probe

Product Description

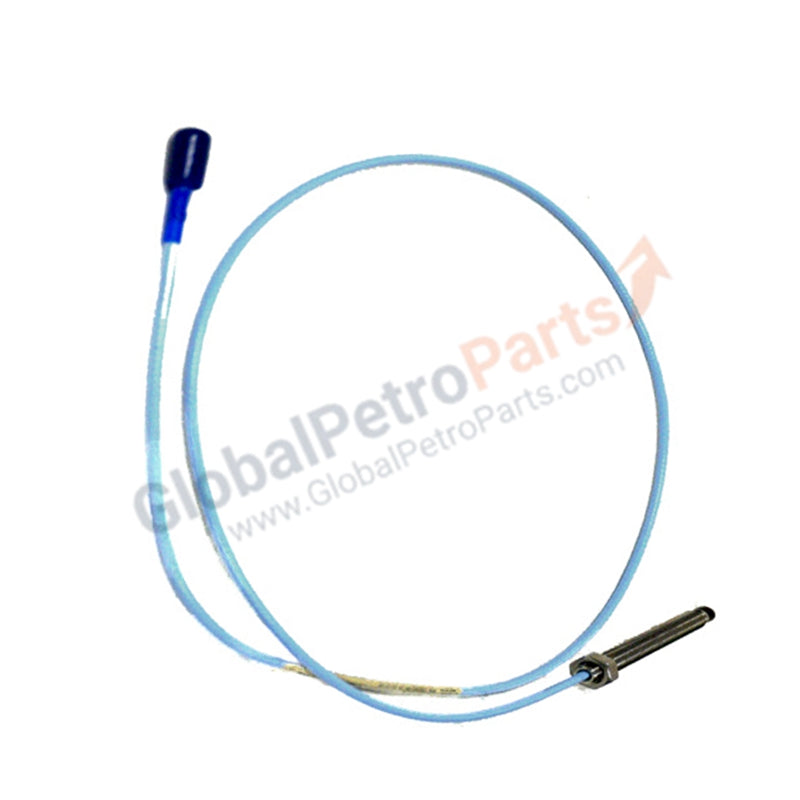

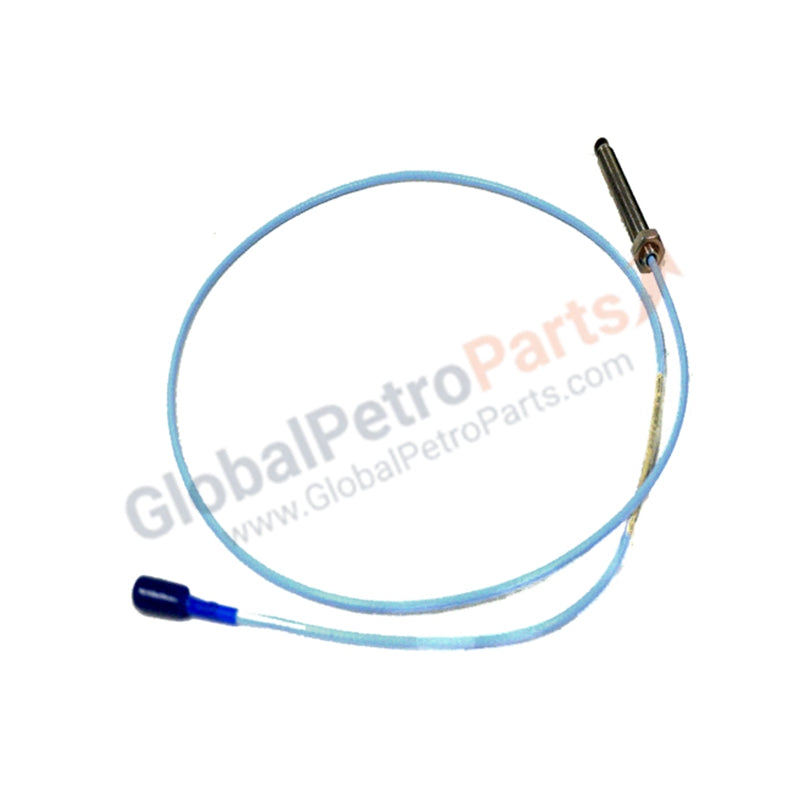

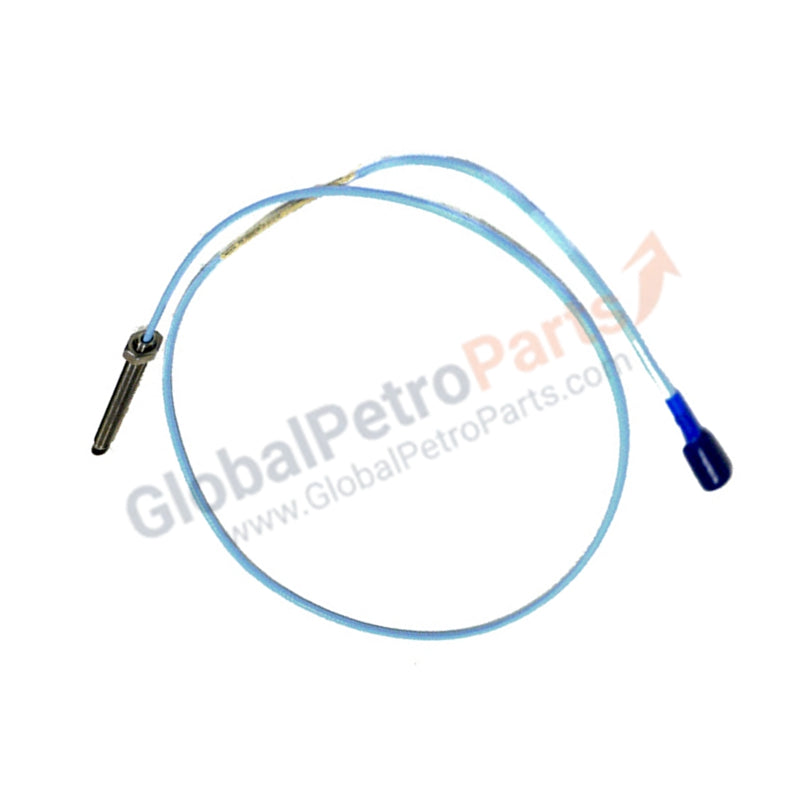

The 330101-00-14-10-02-00 (Part No. 330101-00-14-10-02-00) is a high-precision 8mm proximity sensor belonging to the industry-standard Bently Nevada 3300 XL series. Engineered for non-contacting vibration and displacement measurements, this probe is designed to operate within eddy current transducer systems to monitor critical rotating machinery. This specific configuration features a fully threaded 140mm case and a 1.0-meter integrated cable, optimized for installations where the sensor is mounted directly through a machine housing or bracket.

The 330101-00-14-10-02-00 employs the ClickLoc miniature coaxial connector system, providing a robust, vibration-resistant connection to extension cables while maintaining consistent electrical impedance.

Detailed Technical Specifications

• Probe Tip Diameter: 8 mm

• Thread Type: Metric M10 x 1 (Standard for 330101 series)

• Unthreaded Length (Option 00): 0 mm

• Overall Case Length (Option 14): 140 mm (Fully threaded)

• Total Cable Length (Option 10): 1.0 Meter (3.3 Feet)

• Connector Type (Option 02): Miniature coaxial ClickLoc connector

• Cable Material: Standard 75-ohm coaxial cable with FEP jacket

• Linear Range: 2.0 mm (80 mils), typically starting at 0.25 mm (10 mils) from the target

• Target Material: Fluid-film bearing journals (AISI 4140 steel recommended for standard calibration)

• Operating Temperature: -51°C to +177°C (-60°F to +351°F)

• Environmental Sealing: IP68 rated tip and case

Typical Applications

This probe is primarily used for measuring radial vibration, axial thrust position, and tachometer/speed sensing on steam turbines, centrifugal compressors, and large electric motors. The 140mm case length is ideal for reaching deep internal targets through thick-walled bearing housings.

Engineering FAQ

• Can this probe be used with a 5-meter or 9-meter system?

• The 330101-00-14-10-02-00 has a 1.0m total length. It must be paired with the appropriate extension cable (e.g., a 4.0m cable for a 5-meter system or an 8.0m cable for a 9-meter system) to ensure the Proximitor sensor sees the correct total electrical length.

• What is the benefit of the ClickLoc connector?

• The ClickLoc design (Option 02) prevents the connector from loosening due to machinery vibration and eliminates the need for special tools or lock-wiring during installation.
