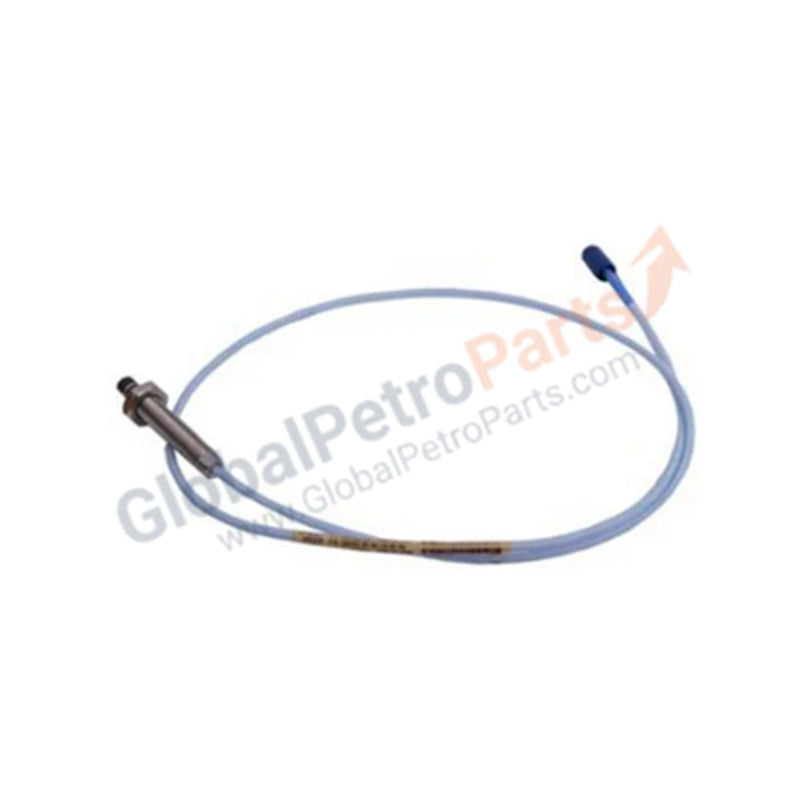

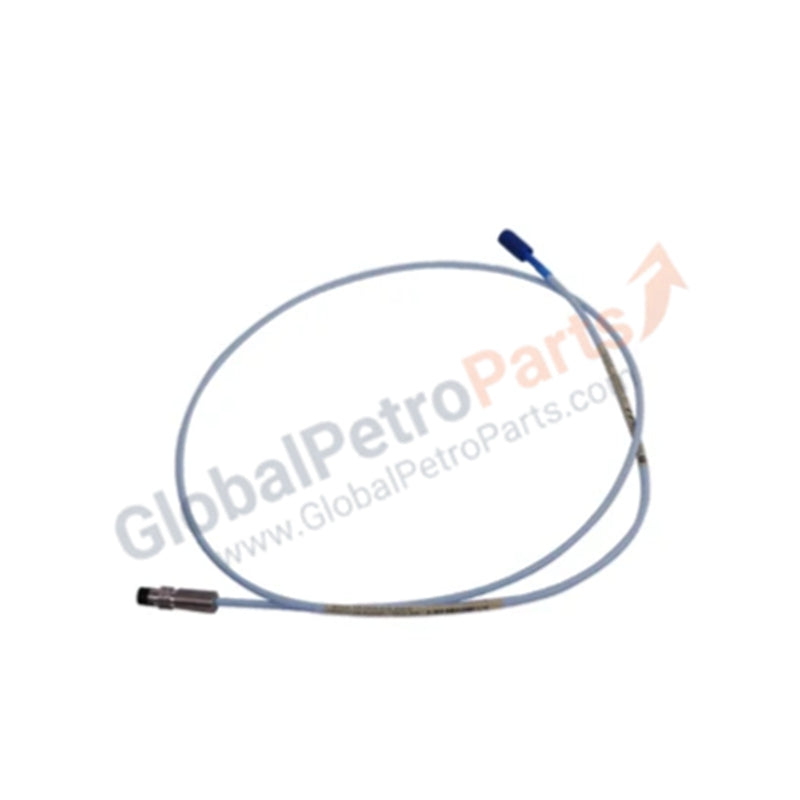

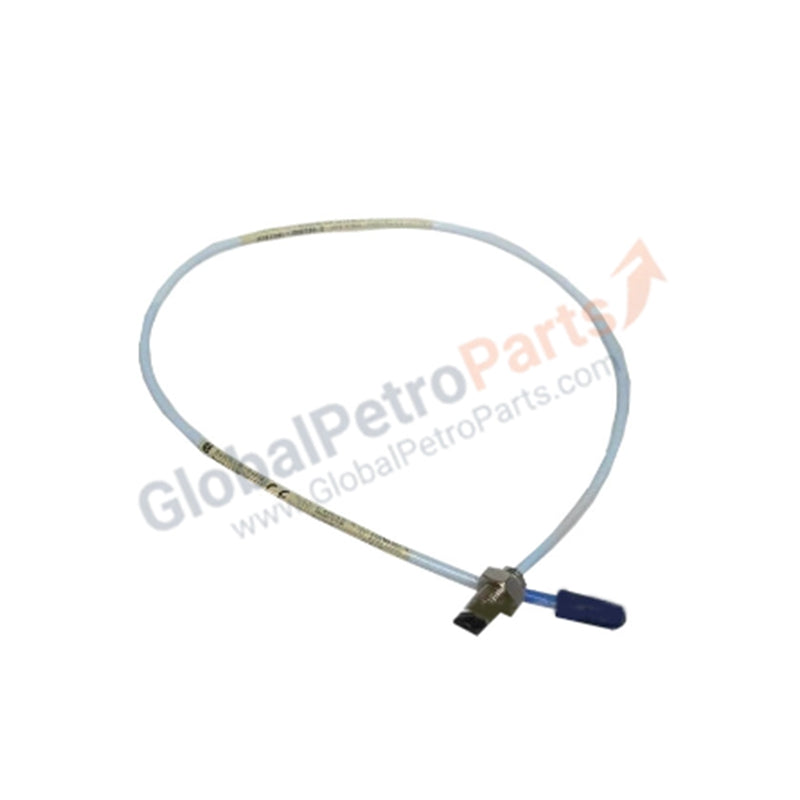

Bently Nevada 330101-00-55-10-02-05 3300 XL 8mm Proximity Probe

Product Overview

The 330101-00-55-10-02-05 represents an extra-long reach transducer engineered for the most demanding industrial monitoring environments. As a core component of the Bently Nevada 3300 XL series, this 100% Brand New original 8mm probe provides non-contacting measurement of radial vibration, axial thrust, and shaft position for fluid-film bearing machines. Manufactured in the U.S.A., it translates mechanical displacement into a high-precision electrical signal for machinery protection systems. This specific configuration features a 5.5-inch fully threaded case and a 1.0-meter integral cable, providing the extreme reach and global hazardous area certifications required for deep bearing housing installations.

Part Number Breakdown

The 330101 ordering matrix defines the mechanical footprint and regional certifications for the 8mm probe series.

• 330101: 3300 XL 8mm Proximity Probe (3/8-24 UNF thread, without armor)

• -00: Unthreaded Length (0.0 inches)

• -55: Overall Case Length (5.5 inches / 139.7 mm)

• -10: Total Length (1.0 meter / 3.3 feet)

• -02: Connector Option (Miniature coaxial ClickLoc™ connector, standard cable)

• -05: Agency Approval (Multiple Approvals: CSA, ATEX, IECEx)

Technical Specifications

The 330101-00-55-10-02-05 maintains strict linearity and interchangeability across its entire 80-mil operating range.

Engineering Advantages

• Extreme Reach for Internal Pedestals: The 5.5-inch threaded case facilitates installation through exceptionally thick machine casings or deep-seated bearing pedestals. This length allows engineers to reach internal shaft targets while retaining sub-mil adjustment precision for final mechanical gap settings.

• Global Explosion-Proof Compliance: The "-05" multi-approval option ensures compliance with CSA, ATEX, and IECEx standards. This allows for immediate deployment in Zone 0, 1, or 2 hazardous locations, simplifying international procurement and ensuring adherence to global safety mandates.

• Vibration-Proof ClickLoc™ Technology: The miniature coaxial ClickLoc™ connector incorporates a positive-locking mechanism. This prevents unintentional cable disconnection or signal attenuation caused by high-frequency machinery vibrations, a common failure point in standard friction-fit proximity systems.

• Superior Signal Integrity: The 3300 XL series rejects electromagnetic interference (EMI) through high-performance cable shielding. This ensures that the vibration waveforms remain deterministic and clean, even when the probe operates near high-voltage generators or large induction motors.

FAQs

• Is this 330101-00-55-10-02-05 probe a brand-new original unit?

  Yes. We supply this probe exclusively as 100% Brand New original factory stock. Each unit arrives in Bently Nevada’s original protective packaging with all factory inspection markings to guarantee authenticity and field reliability.

• Which extension cable should I pair with this 1.0-meter probe?

  To achieve a standard 5.0-meter system length, you must pair this 1.0-meter probe with a 4.0-meter 3300 XL extension cable. For a 9.0-meter system, pair it with an 8.0-meter extension cable. Always ensure the total electrical length (Probe + Extension) matches the calibration of your Proximitor sensor.

• How do I set the correct mechanical gap during installation?

  Adjust the 3/8-24 UNF threading while monitoring the DC Gap voltage at the Proximitor output. For most 3300 XL applications, a voltage reading of approximately -10.0 VDC indicates the center of the linear range.

• Can this probe handle high-temperature oil splash?

  The 3300 XL 8mm probe utilizes high-grade stainless steel and PPS tip materials. It functions reliably even when submerged or splashed by hot lubricating oils within turbine bearing pedestals up to its rated operating temperature of +177°C.
