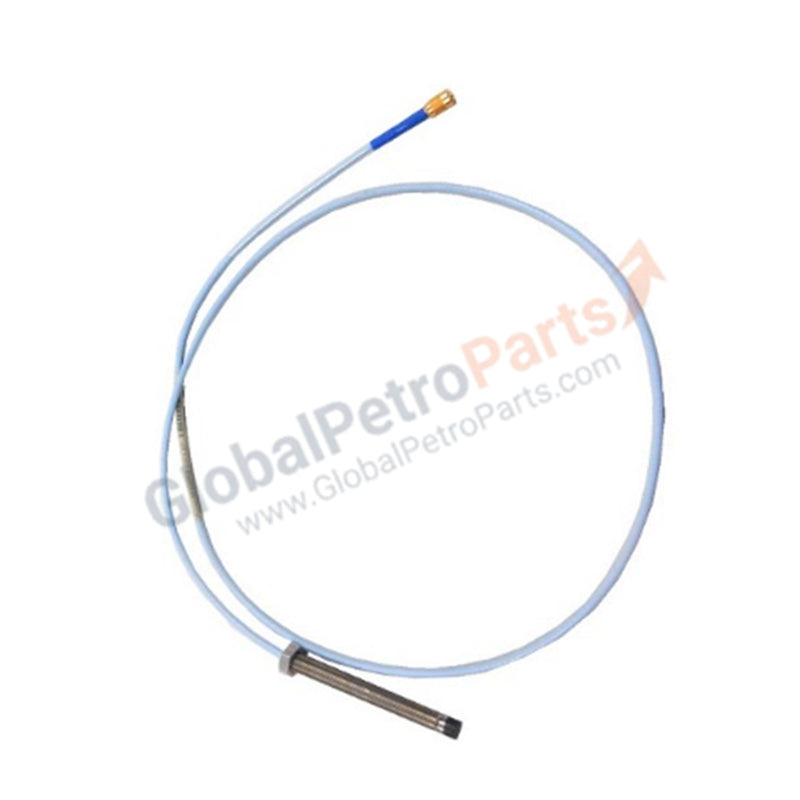

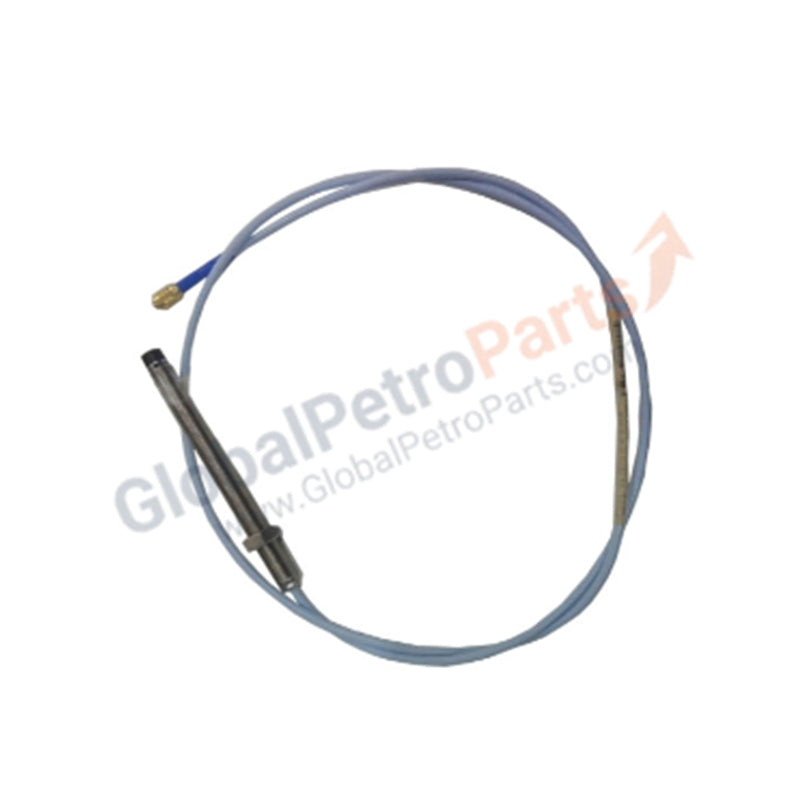

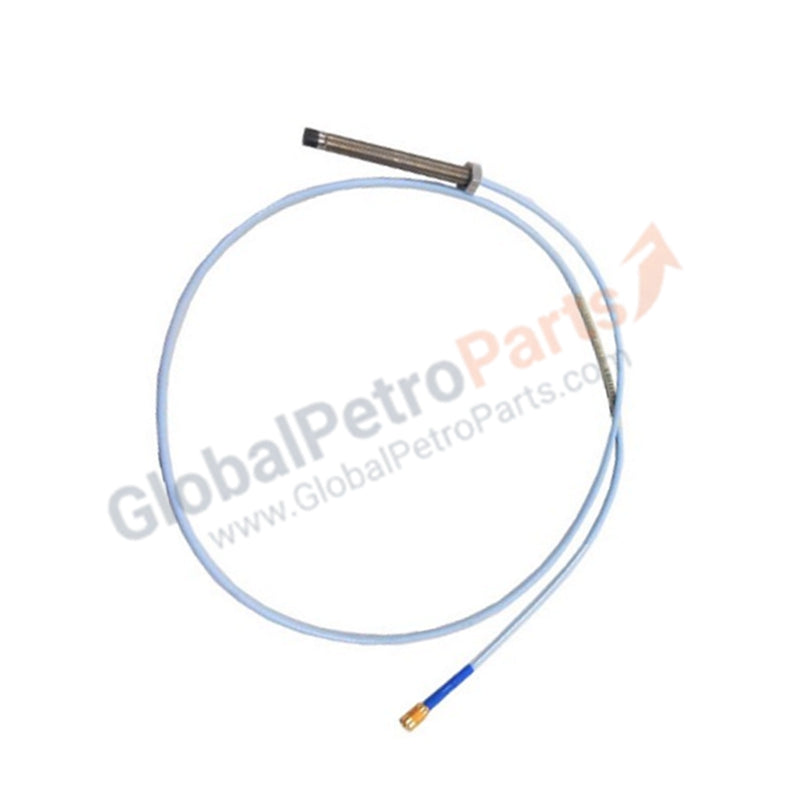

Bently Nevada 330101-15-35-10-02-05 3300 XL 8mm Proximity Probe

Product Overview

The Bently Nevada 330101-15-35-10-02-05 serves as a high-precision 3300 XL 8mm Proximity Probe, functioning as the primary sensing element for critical machinery protection systems. This eddy current sensor measures both radial vibration and axial thrust position on fluid-film bearing machines. By providing a non-contacting displacement measurement, it allows operators to detect shaft instabilities before mechanical failure occurs. We supply this unit in 100% brand-new factory condition to ensure maximum measurement integrity.

Part Number Breakdown

The 330101 series utilizes a specific configuration matrix to match industrial housing and cable requirements:

Technical Specifications

This probe maintains strict tolerances to ensure interchangeability without recalibration:

• Manufacturer: Bently Nevada (USA)

• Probe Tip Diameter: 8 mm

• Thread Type: 3/8-24 UNF (Imperial)

• Cable Length: 1 Metre (3.3 feet)

• Arming: Without armor (standard flexible lead)

• Connector: ClickLoc™ gold-plated coaxial

• Weight: ~0.323 kg (Shipping weight 2 kg)

• Compatibility: Works seamlessly with 3300 XL Proximitor® Sensors

Engineering Advantages

The 330101-15-35-10-02-05 optimizes sensor performance in volatile industrial environments:

• ClickLoc™ Connection Stability: The patented ClickLoc™ connector prevents signal loss caused by mechanical vibration. The gold-plated contacts resist corrosion, ensuring long-term electrical continuity in humid or chemically aggressive atmospheres.

• Elimination of Cross-Talk: Advanced internal shielding and 3300 XL technology minimize interference from nearby electrical equipment, providing a clean signal for DCS and PLC integration.

• Mechanical Stress Resistance: The probe tip utilizes a high-performance PPS (Polyphenylene Sulfide) plastic, which resists chemical degradation and maintains structural integrity during high-velocity oil flow.

• Simplified Calibration: Bently Nevada designs the 3300 XL series for physical interchangeability. This probe requires no individual calibration to the Proximitor, allowing maintenance teams to replace sensors quickly during outages.

FAQs

• Does this probe require a specific extension cable?

  Yes. You must use a 3300 XL extension cable to maintain the total system length (typically 5 or 9 metres). The probe’s 1-metre lead must match the system configuration of your Proximitor® Sensor.

• How do I ensure the ClickLoc™ connector is secure?

  The ClickLoc™ system provides tactile feedback. When you join the probe and extension cable, you will feel a distinct "click," confirming a moisture-resistant and vibration-proof seal.

• Can I install this probe in hazardous areas?

  The "-05" suffix indicates multiple agency approvals for hazardous environments. Always consult the product datasheet and local regulations to confirm compliance with your specific Zone or Division classification.

• Is this a genuine, new Bently Nevada product?

  Absolutely. We deliver the 330101-15-35-10-02-05 in its original factory packaging, complete with serial numbers and quality assurance markers from the USA manufacturing facility.
