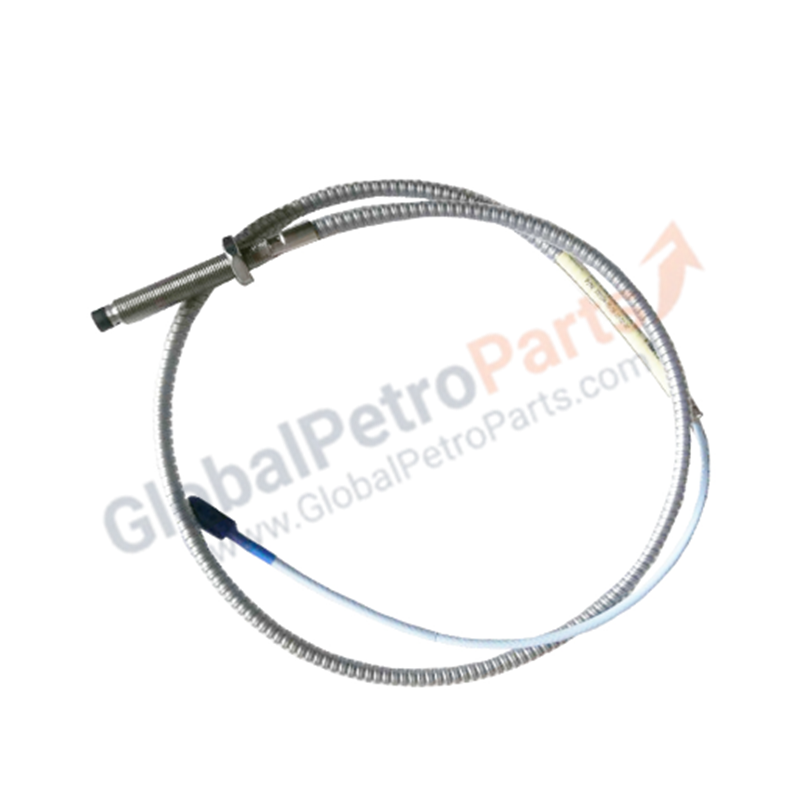

Bently Nevada 330104-00-04-10-02-CN 3300 XL 8 mm Metric Proximity Probe

Product Overview

The 330104-00-04-10-02-CN serves as a high-precision transducer within the Bently Nevada 3300 XL 8 mm ecosystem. This metric-threaded probe utilizes eddy current technology to measure both static gap and dynamic vibration between the probe tip and the target shaft. It provides critical data for turbomachinery protection systems, monitoring axial thrust and radial vibration in gas turbines, steam turbines, and centrifugal compressors. We supply this unit as 100% Brand New original hardware, Made in the U.S.A., featuring specialized regional approvals (CN) for localized regulatory compliance.

Part Number Breakdown

The 330104 series utilizes a modular code to define its mechanical and metric threading specifications:

Technical Specifications

The 330104-00-04-10-02-CN delivers high-resolution measurement for critical rotating assets:

Engineering Advantages

• Regional Regulatory Compliance: The "CN" approval suffix ensures the hardware meets specific regional safety and hazardous area standards. This facilitates seamless project commissioning in regulated markets and provides documented proof of compliance for safety-critical systems.

• ClickLoc™ Interconnect Security: The gold-plated ClickLoc™ connector system prevents the cable from backing out due to machine vibration. This locking mechanism ensures a gas-tight, low-resistance connection, eliminating signal noise and ensuring data integrity for safety-critical monitoring.

• Metric Precision Mounting: The M10 x 1 thread allows for direct integration into metric-standard machinery housings without the need for adapters. The 40 mm case length provides a versatile profile for installation in bearing housings where specific depth adjustability is required.

• Exceptional Scale Factor Stability: The 3300 XL design maintains a consistent scale factor across wide temperature fluctuations. This stability ensures that the vibration monitoring system provides accurate data during both machine startup and full-load operation.

• Chemical and Fluid Resilience: The Polyphenylene sulfide (PPS) tip and Stainless Steel case resist degradation from nearly all common industrial lubricants, hydraulic fluids, and chemical vapors found in turbomachinery environments.

FAQs

Q: Do I need a specific extension cable for the 1.0-meter probe?

A: Yes. You must pair this 1.0-metre probe with a 3300 XL Extension Cable. The total length of the probe and extension cable must match the calibrated length of your Proximitor® Sensor—typically 5.0 or 9.0 metres total.

Q: Can I obtain a Certificate of Origin (COO) for this product?

A: Yes. Since we supply 100% Brand New original hardware Made in the U.S.A., we can provide an official Certificate of Origin upon request to satisfy your import or project documentation requirements.

Q: What is the benefit of the "00" unthreaded length option?

A: The "00" option means the probe body is fully threaded along its entire 40 mm case. This provides maximum flexibility during gapping, allowing the user to precisely position the probe regardless of the mounting bracket thickness.

Q: How do I verify the ClickLoc™ connection is secure?

A: The ClickLoc™ connector provides tactile and audible feedback when fully seated. The gold-plated surfaces must remain clean and dry to ensure the low-resistance electrical path required for 200 mV/mil sensitivity.
