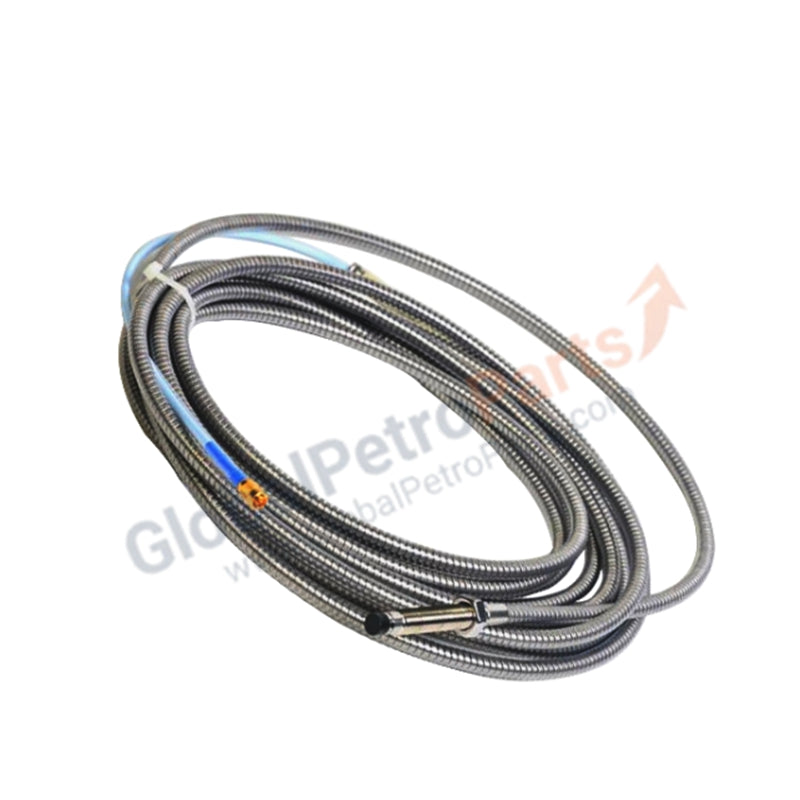

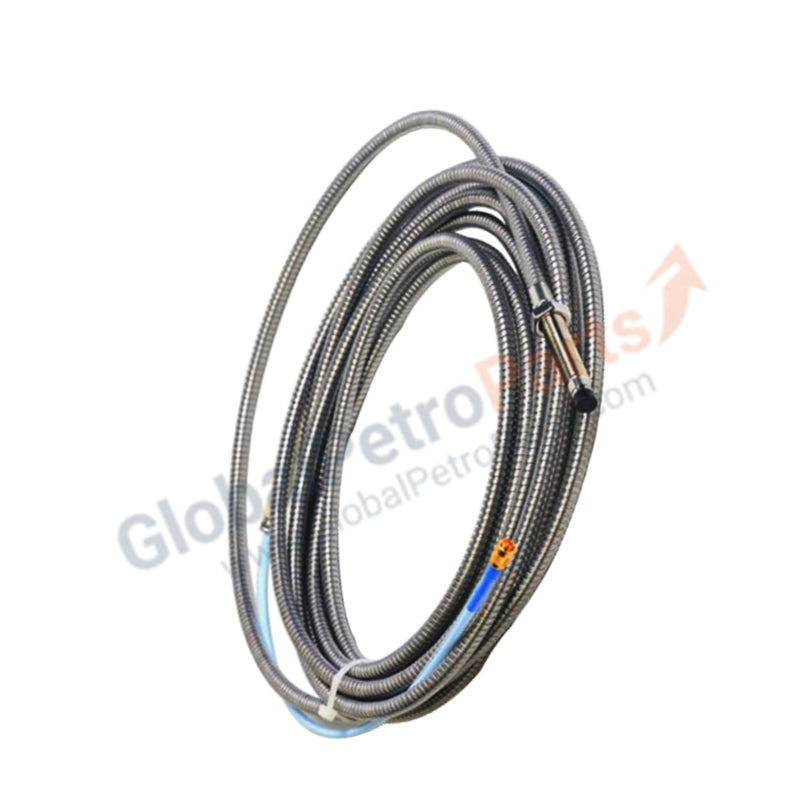

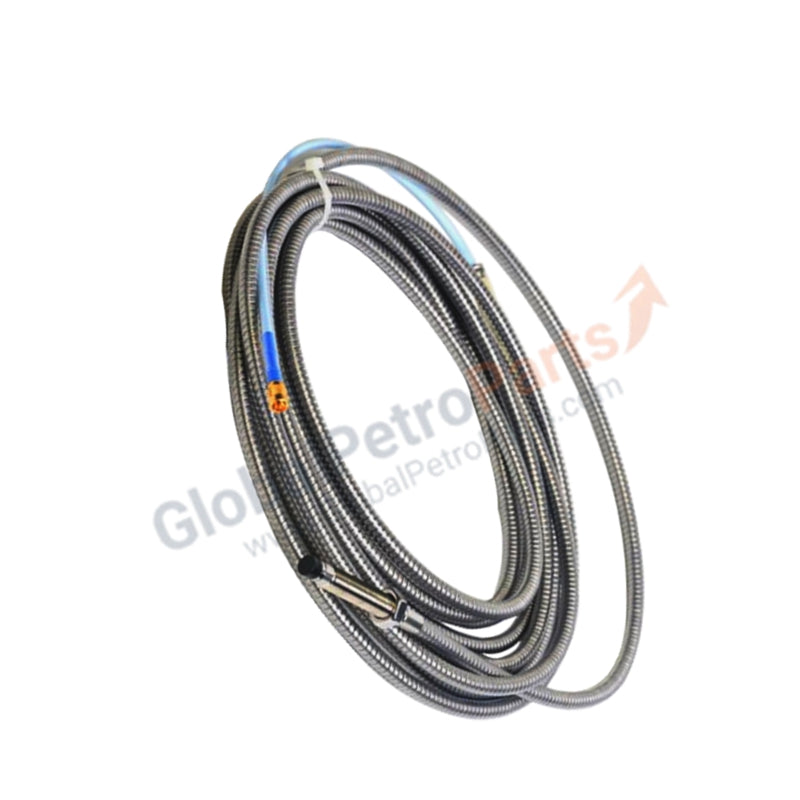

Bently Nevada 330104-00-06-10-01-05 3300 XL 8 mm Armored Metric Proximity Probe

Product Overview

The 330104-00-06-10-01-05 acts as a high-precision transducer within the Bently Nevada 3300 XL 8 mm ecosystem. This metric-threaded probe utilizes non-contacting eddy current technology to monitor vibration, radial position, and axial thrust in critical rotating machinery. Designed for seamless integration into M10 x 1 ports, it features integrated stainless steel armor to withstand the most punishing industrial environments. We supply this unit as 100% Brand New original hardware, Made in the U.S.A., ensuring factory-certified linear accuracy for your machinery protection system.

Part Number Breakdown

The 330104 series utilizes a modular nomenclature to define precise mechanical and safety requirements:

Technical Specifications

The 330104-00-06-10-01-05 ensures reliable data transmission in harsh plant environments:

• Sensing Type: Non-contacting Eddy Current

• Probe Tip Diameter: 8.0 mm

• Thread Size: M10 x 1

• Linear Range: 2.0 mm (80 mils)

• Nominal Scale Factor: 7.87 V/mm (200 mV/mil)

• Armor Material: Flexible Stainless Steel (SST)

• Operating Temperature: -51 °C to +177 °C (-60 °F to +351 °F)

• Shipping Weight: 0.54 kg

Engineering Advantages

• Integrated Mechanical Armor: The stainless steel armor shields the internal coaxial cable from abrasion, crushing, and accidental cutting during routine maintenance. This ensures signal integrity in high-traffic areas where standard cables often suffer terminal damage.

• Global Hazardous Area Compliance: The "-05" approval option carries CSA, ATEX, and IECEx certifications. This multi-certification facilitates international project deployment and ensures the probe meets stringent safety requirements for explosive atmospheres.

• High-Stability PPS Tip: The Polyphenylene sulfide (PPS) tip material resists chemical attack from hot turbine oils and synthetic lubricants. It maintains dimensional stability under extreme temperatures, ensuring the scale factor remains constant throughout the machine's thermal cycle.

• ClickLoc™ Interconnect Security: The gold-plated ClickLoc™ connector employs a self-locking mechanism. It prevents the cable from backing out due to high-frequency machine vibration, maintaining a gas-tight, low-resistance electrical path.

• Metric Standard Integration: The M10 x 1 thread allows for direct installation into metric machinery without conversion adapters. The 60 mm case length provides ample adjustability for setting the probe gap in various bearing housing thicknesses.

FAQs

Q: Does this probe require a specific extension cable for a 5-meter system?

A: Yes. Since this probe has a 1.0-meter total length, you must pair it with a 4.0-meter 3300 XL Extension Cable to reach the standard 5.0-meter system length required by the Proximitor® sensor.

Q: What is the benefit of the "00" unthreaded length option?

A: The "00" option provides threads along the entire 60 mm case. This allows you to adjust the probe's depth precisely through the mounting bracket to achieve the required DC gap voltage (typically -10 VDC).

Q: Is the probe tip resistant to high pressure?

A: Bently Nevada 3300 XL 8 mm probes seal differential pressure between the tip and the case. However, standard probes are not pressure tested prior to shipment. If your application involves high-pressure submersion, please consult our technical team for custom-tested options.
