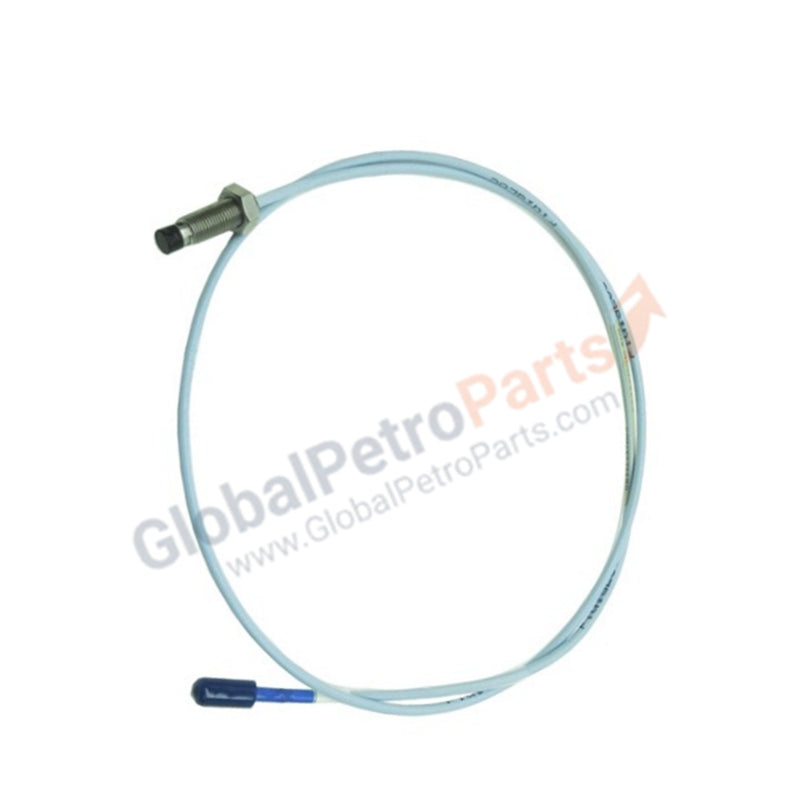

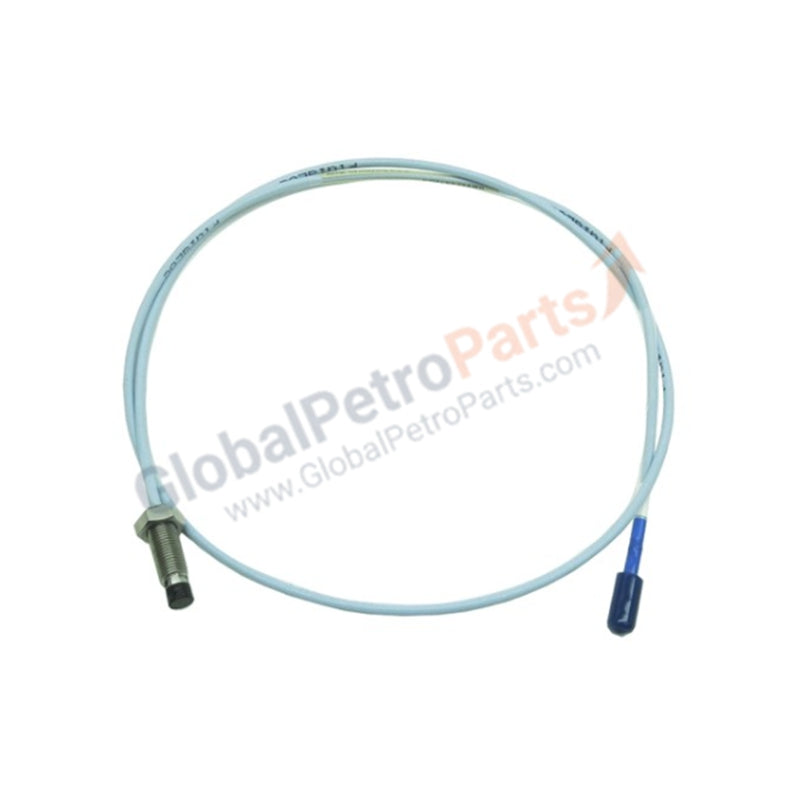

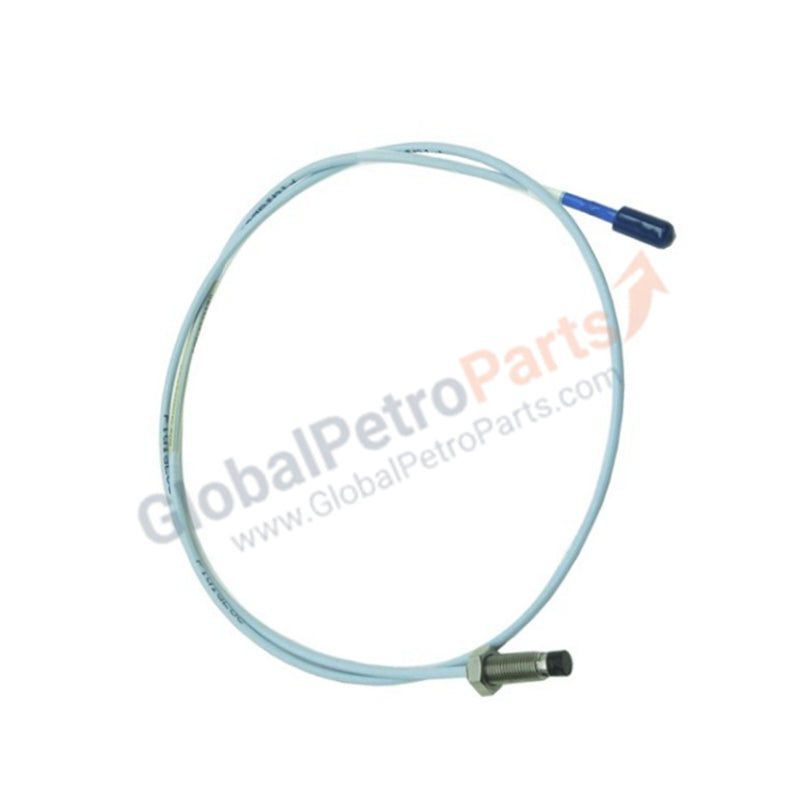

Bently Nevada 330106-05-30-50-02-00 3300 XL 8 mm Reverse Mount Probes

The Bently Nevada 330106-05-30-50-02-00 serves as the primary 330106 Reverse Mount Probe utilized to execute non-contacting shaft displacement and dynamic vibration measurements across 3500 Machinery Protection System platforms. The module operates via high-frequency eddy-current generation, translating physical proximity changes into corresponding electrical voltage variations when connected to a 3300 XL Proximitor Sensor.

Suffix Breakdown & Model Matrix

The complete model nomenclature breakdown for this technical configuration is defined below:

• 330106: Base model number for 3300 XL 8 mm Reverse Mount Probe (3/8-24 UNF-2A thread parameters).

• 05: Specifies the unthreaded length option of 0.5 inches (12.7 mm).

• 30: Specifies the case length option of 3.0 inches (76.2 mm).

• 50: Total Length Option designating a 5.0 metre (16.4 feet) integrated cable length.

• 02: Connector Option specifying a miniature coaxial ClickLoc connector.

• 00: Agency Approval Option specifying no hazardous area certifications required.

Hardware Specifications

Gap Voltage Validation and Cross-Talk Suppression

Mechanical deployment of this 5.0-meter transducer configuration relies on physical gap voltage validation to ensure accurate tracking of rotor dynamics. During static calibration inside the reverse mount sleeve, the probe depth must be adjusted relative to the observed shaft target until a steady-state value of -10 VDC is validated at the Proximitor loop output. This sets the sensor exactly at the midpoint of its 2.0 mm linear measuring range. Due to the extended 5.0-meter integrated cable run, physical isolation and proper cable spacing are required to maintain active cross-talk suppression and eliminate signal degradation when routing the sensor lines alongside parallel high-density instrument bundles.

Frequently Asked Questions

Q: How does the 5.0-meter integrated cable length affect system matching with the Proximitor Sensor?

A: The 3300 XL system requires the total electrical length of the probe and extension cable to equal a calibrated metric (typically 5.0 meters or 9.0 meters). A probe configured with a 5.0-meter integrated cable connects directly to a matching 5.0-meter Proximitor Sensor without requiring a separate extension cable.

Q: What status behavior occurs if the ClickLoc connector is disconnected during active system operation?

A: Disconnecting the miniature ClickLoc interface breaks the sensor loop circuit. The monitoring module detects the open circuit instantly, forces the signal output to clamp to its upper limit, and switches the associated channel status into a NOT OK fault mode to suppress false trip execution.

Field Installation Guidelines

• Thread Insertion Alignment: Manually thread the 3/8-24 UNF-2A probe housing into the reverse mount sleeve bracket. Ensure no cross-threading occurs before torque is applied to the locknut assembly to prevent damage to the 76.2 mm case.

• Cable Bend Path Limitations: Maintain a minimum bend radius of 25.4 mm (1.0 inch) along all segments of the 5.0-meter coaxial cable. Sharp kinks or compressed routing paths degrade insulation layers and compromise shielding performance.

• Shielding Separation Requirements: The ClickLoc connector and internal coaxial shield must remain isolated from any contact with the machine chassis or housing. Use insulated junction boxes and matching protective terminal sleeves to maintain a single-point grounding layout at the monitor rack.

• Target Surface Inspection: Confirm the targeted shaft observation track matches the standard calibration criteria and is free of surface scratches or structural magnetism, as these conditions cause electrical runout errors that distort vibration readings.
