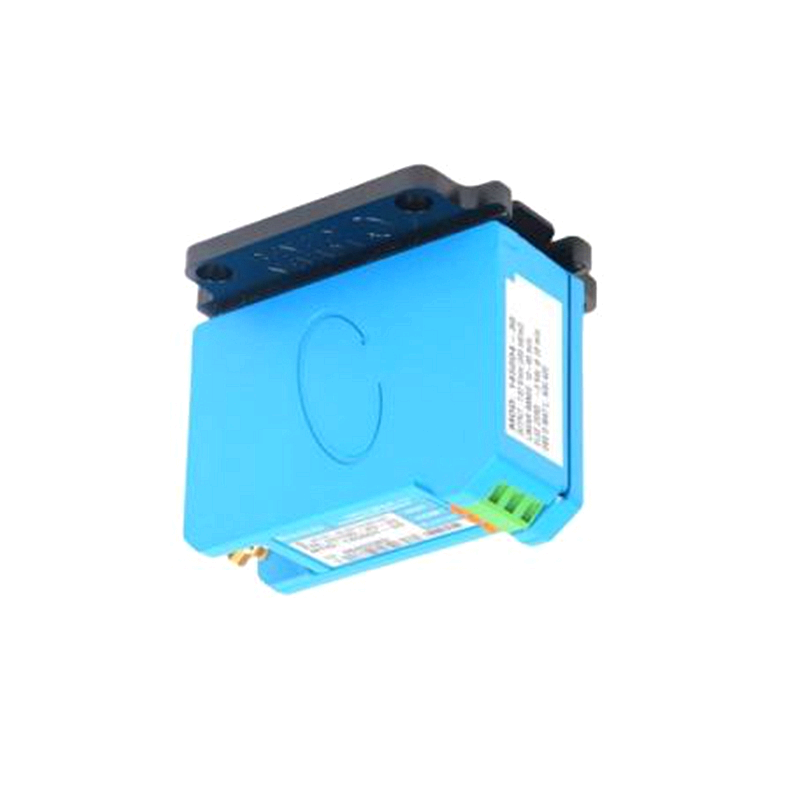

Bently Nevada 330180-91-00 3300 XL 8 mm Proximitor Sensor 9.0 meter

Product Overview

The Bently Nevada 330180-91-00 is a 3300 XL 8 mm Proximitor Sensor configured for a 9.0 meter system length with DIN rail mounting and no agency approvals. This model combines the extended cable reach of the 9-meter system with the convenience of DIN rail mounting, making it ideal for modern control cabinets where space efficiency and modularity are priorities.

Key Specifications

• Manufacturer: Bently Nevada (Baker Hughes)
• Product Family: 3300 XL 8 mm Proximity Transducer System
• Type: Proximitor Sensor (Signal Conditioner)
• System Length: 9.0 meters (29.5 feet)
• Mounting Option: DIN rail mount (91)
• Agency Approval: Not required (00)
• Probe Compatibility: 3300 XL 8 mm proximity probes and 3300 XL extension cables
• Sensitivity: 7.87 V/mm (200 mV/mil) nominal
• Linear Range: 2.0 mm (80 mils)
• Power Supply: -17.5 Vdc to -26 Vdc, max 12 mA
• Output Resistance: 50 Ω
• Supply Sensitivity: < 2 mV change per volt input change
• Frequency Response: 0 to 10 kHz typical
• Operating Temperature: -52°C to +100°C (-62°F to +212°F)
• Storage Temperature: -52°C to +105°C (-62°F to +221°F)
• Humidity: 100% condensing, non-submersible
• Housing Material: A308 aluminum
• Connector: Gold-plated brass / beryllium copper
• Weight: ~246 g (8.7 oz)
• Mounting: DIN rail (TH35-15 or TH35-7.5 per IEC 60715)
• Protection Rating: IP20
• Standards Compliance: API 670 (4th Edition)

Features & Benefits

• Extended System Length: 9.0 meters accommodates installations with remote monitoring cabinets.
• DIN Rail Mounting: Quick installation and removal in modern control cabinets; no drilling required.
• Full Interchangeability: No component matching or bench calibration needed.
• Backward Compatibility: Compatible with non-XL 3300 series 5 mm and 8 mm components.
• API 670 Compliant: Meets API 670 4th Edition requirements.
• SpringLoc Terminals: Tool-free, robust field wiring.

Typical Applications

• Remote turbine monitoring installations
• Large compressor stations with distributed I/O
• Modern control cabinet designs with DIN rail mounting
• Applications requiring 9-meter cable reach with quick module replacement

Installation Guide

1. Mounting: Snap onto a 35 mm DIN rail (TH35-15 or TH35-7.5). Ensure the rail is securely fastened to the cabinet back panel.
2. Power Supply: Connect -17.5 Vdc to -26 Vdc. Max current: 12 mA.
3. Probe & Extension Cable: Connect 3300 XL 8 mm probe and extension cable. Total length must equal 9.0 meters.
4. Output Wiring: Connect shielded cables to the monitoring system. Ground shield at one end.
5. Gap Calibration: Set probe gap to approximately 1.27 mm (50 mils).

FAQ

Q: What is the difference between 330180-91-00 and 330180-91-05?
A: The -91-00 has no agency approvals. The -91-05 has multiple hazardous area approvals (CSA, ATEX, IECEx). Electrical specifications are identical.

Q: Can I mount this on a panel instead of DIN rail?
A: The -91- variant is designed for DIN rail mounting. For panel mounting, order 330180-90-00 or 330180-90-05.

Selection Tips

• Choose -91-00 for general-purpose 9-meter installations in non-hazardous areas with DIN rail cabinets.
• For hazardous areas, upgrade to -91-05.
• When replacing a unit, always match the exact model number to ensure identical system length and mounting.
