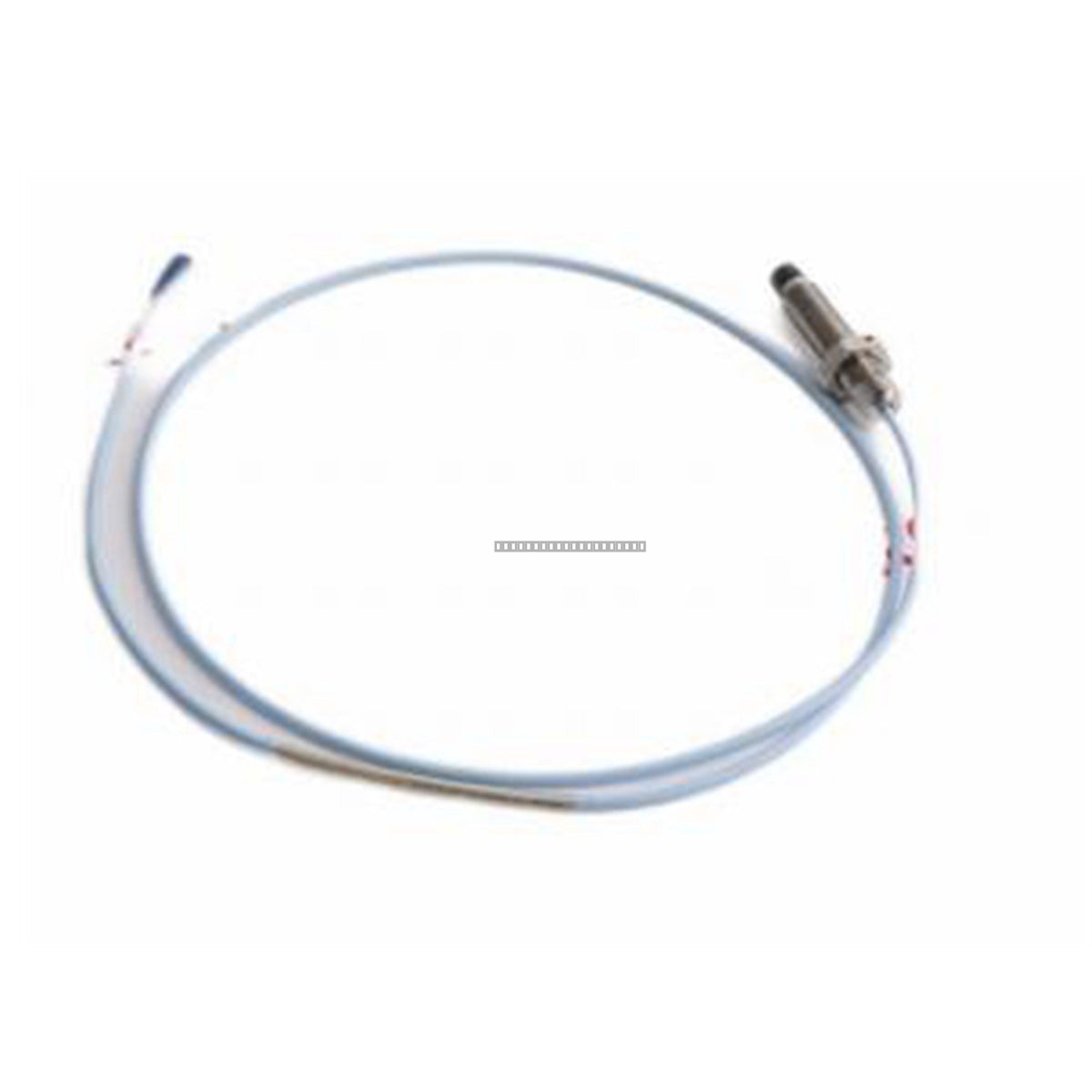

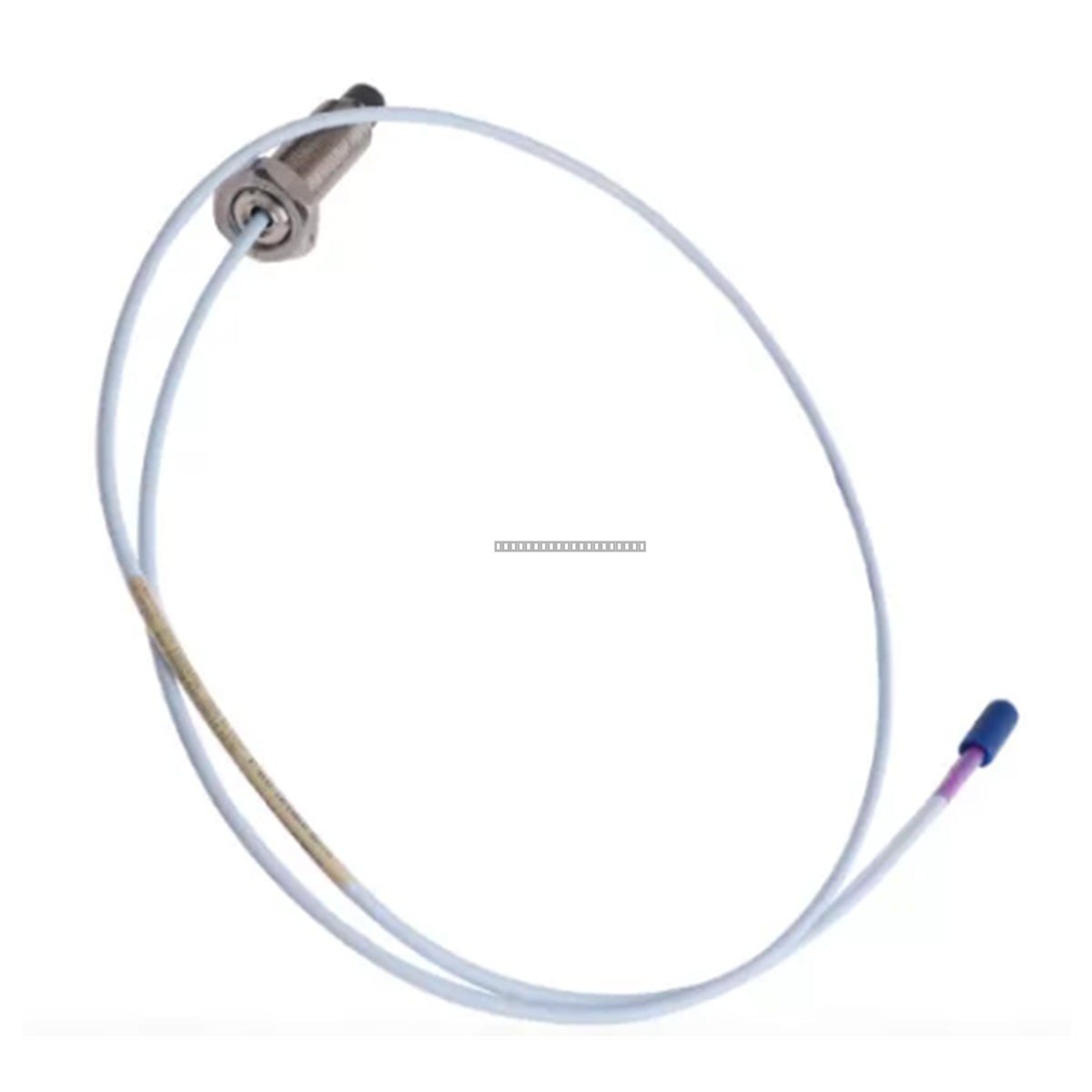

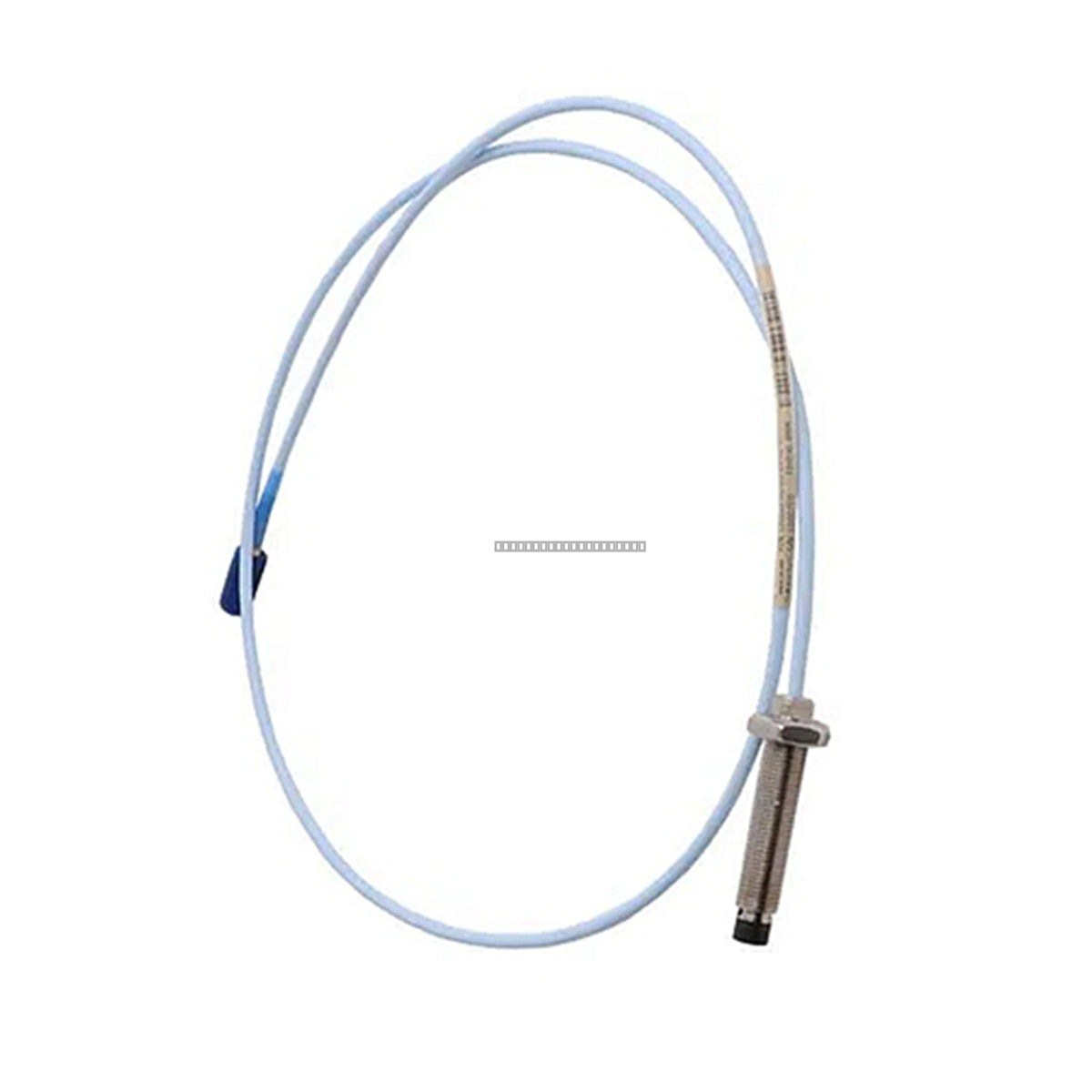

Bently Nevada 330705-02-18-10-02-00 3300 XL 11 mm Reverse Mount Probe

Description

The Bently Nevada 330705-02-18-10-02-00 is a 3300 XL 11 mm Reverse Mount Probe designed for high-performance vibration monitoring in industrial rotating machinery. As part of the 3300 XL series, this probe provides precise, non-contact displacement measurements, essential for monitoring shaft position and vibration in turbines, compressors, and pumps.

Features

• 11 mm probe tip diameter for extended linear range compared to standard 8 mm probes.
• Reverse mount configuration for specific mechanical housing requirements.
• Integrated 3/8-24 UNF threading for secure mounting in probe holders.
• Equipped with a 1.0-meter (3.3 feet) cable length.
• Features a miniature ClickLoc coaxial connector for reliable signal transmission.
• Designed for compatibility with Bently Nevada 3300 XL Proximitor sensors.

Technical Specifications

Installation Guidelines

• Ensure the probe is installed in a rigid, vibration-free mount to prevent false signal readings.
• Handle the probe tip with care; damage to the tip surface can affect linearity and accuracy.
• Route coaxial cables away from high-voltage power lines and sources of electromagnetic interference (EMI).
• Ensure all connections are clean and fully seated to maintain signal integrity.
• Verify that the probe gap is set correctly according to the specific machine monitoring requirements during installation.

FAQ

What is the primary function of the 330705 probe?

This probe is used in conjunction with a Proximitor sensor to measure the displacement and vibration of rotating shafts in industrial machinery, providing critical data for condition monitoring and protection systems.

Is this probe compatible with standard 3300 XL systems?

Yes, the 330705-02-18-10-02-00 is designed to operate as part of the Bently Nevada 3300 XL transducer system, ensuring seamless integration with existing monitoring infrastructure.
