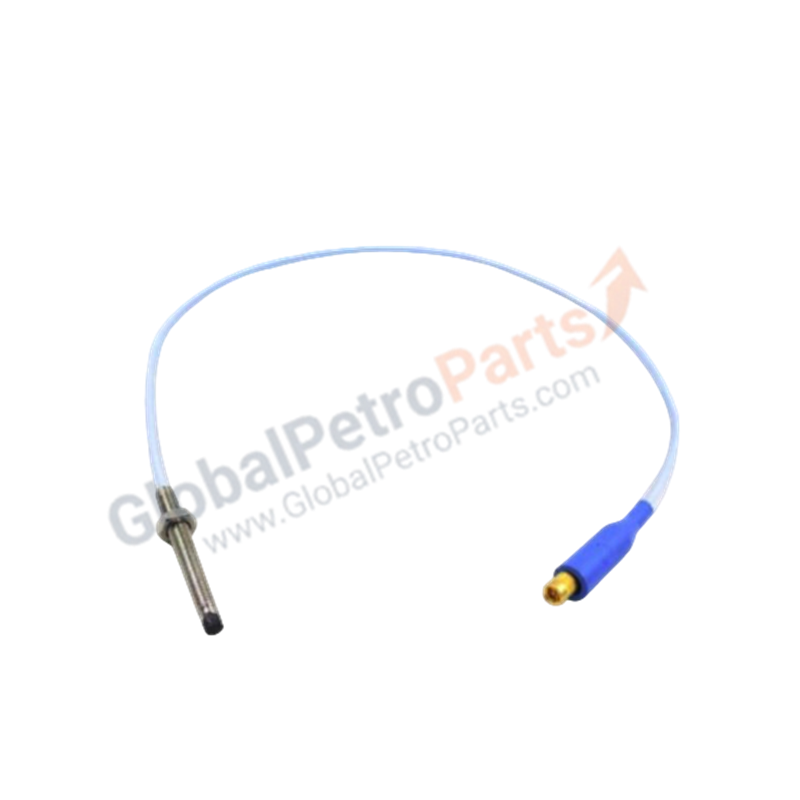

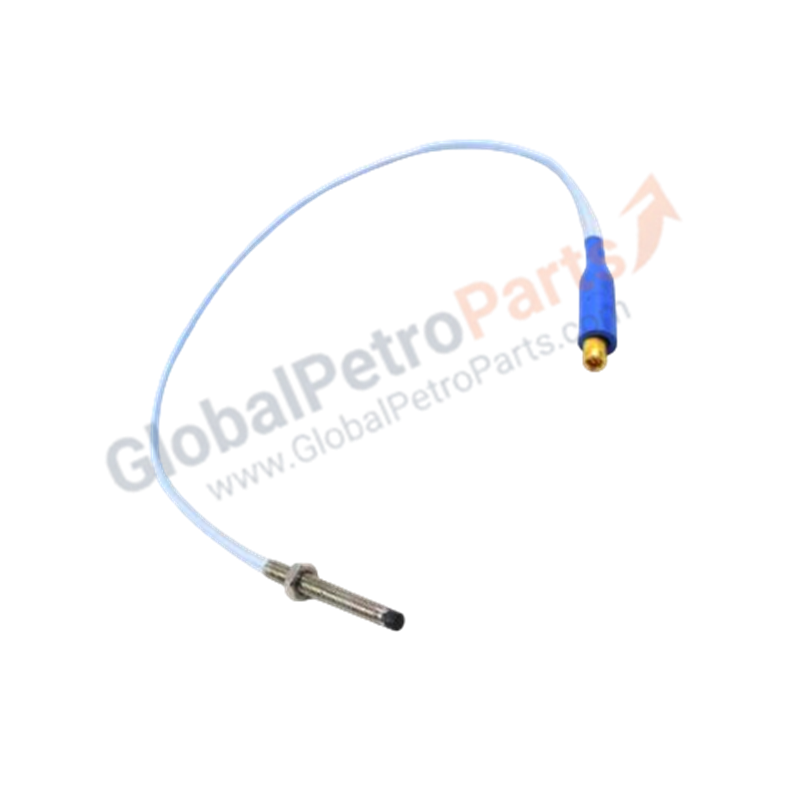

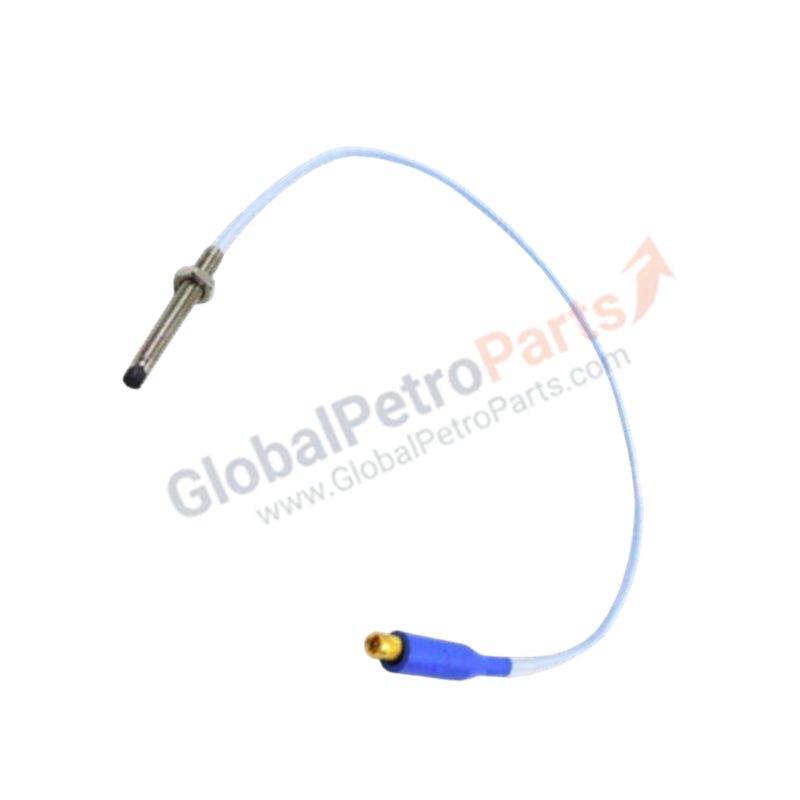

Bently Nevada 330901-00-40-05-02-05 3300 NSv Proximity Probe

Configured for precision displacement sensing in machinery protection systems, the Bently Nevada 330901-00-40-05-02-05 (3300 NSv Proximity Probe) provides direct physical execution of eddy-current distance measurement.

Suffix Breakdown & Model Matrix

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 3300 NSv system operates based on eddy-current probe scaling, where the transducer detects shaft displacement through electromagnetic field interaction with the target material. Accurate rotor dynamics analysis depends on maintaining a linear output across the operating gap. The probe tip, constructed from PPS, ensures stability in high-temperature environments. During integration, gap voltage validation against -10 VDC targets is required to calibrate the output signal. Cross-talk suppression is achieved by ensuring that multiple probes mounted in close proximity are spaced according to site-specific interference mitigation guidelines, preventing signal interference between channels.

Frequently Asked Questions

Q: Can the 0.5 meter probe cable be extended in the field?

A: No. The probe is factory-calibrated as a matched set with its integral cable. Extending the cable or altering its length will change the electrical capacitance and invalidate the transducer calibration.

Q: Are there specific torque limits for installing the M10 x 1 threaded case?

A: Yes. Use the recommended installation torque to prevent deformation of the stainless steel case and internal coil assembly. Excessive force can lead to tip damage or mounting thread failure.

Field Installation Guidelines

• Mounting: Ensure the probe is mounted in a rigid bracket to prevent vibration-induced measurement errors. Verify that the mounting hole is free of debris.
• Grounding: To minimize noise, ensure the probe housing is electrically isolated from the machine casing if specified by the system design, or ensure a low-impedance ground path as required.
• Cable Routing: Route the coaxial cable in shielded conduits. Avoid sharp bends near the probe-to-cable transition to protect the internal conductor from fatigue.
• Gap Setting: Use a feeler gauge or calibrated gap-setting tool to establish the initial installation distance, confirming the voltage output at the monitoring instrumentation before machine startup.
