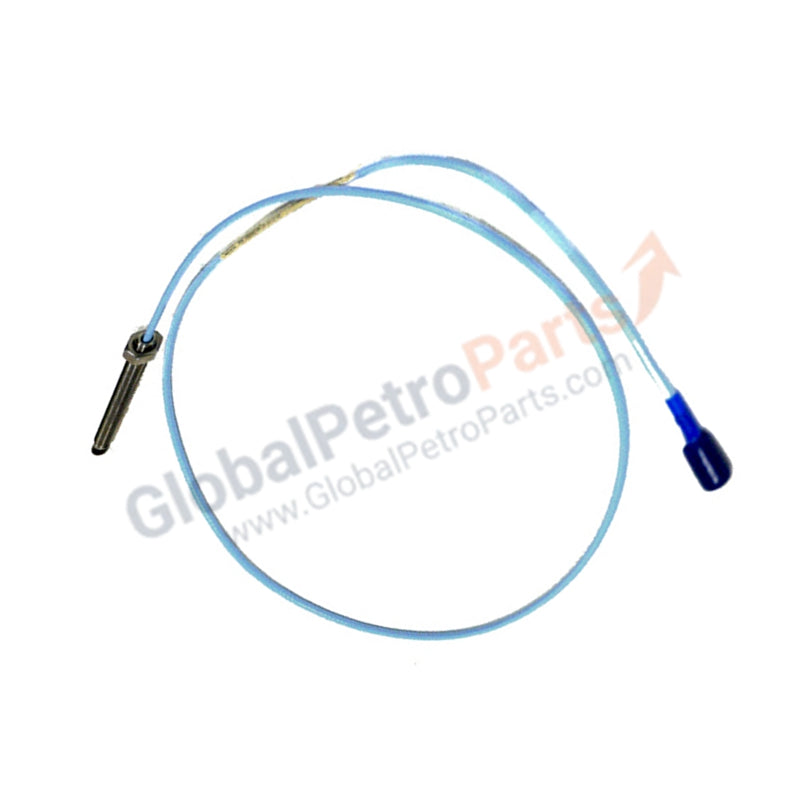

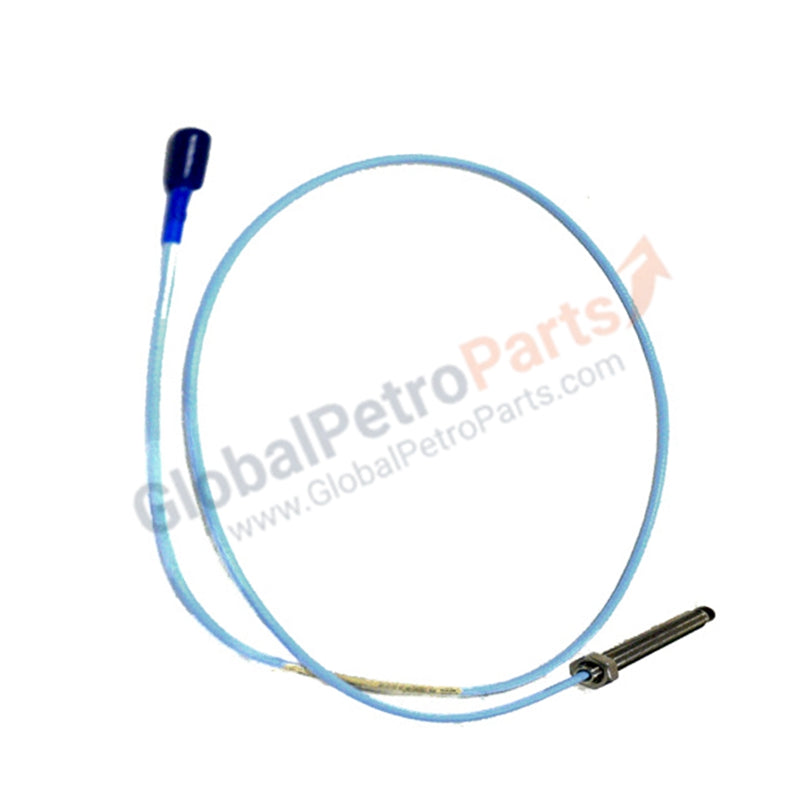

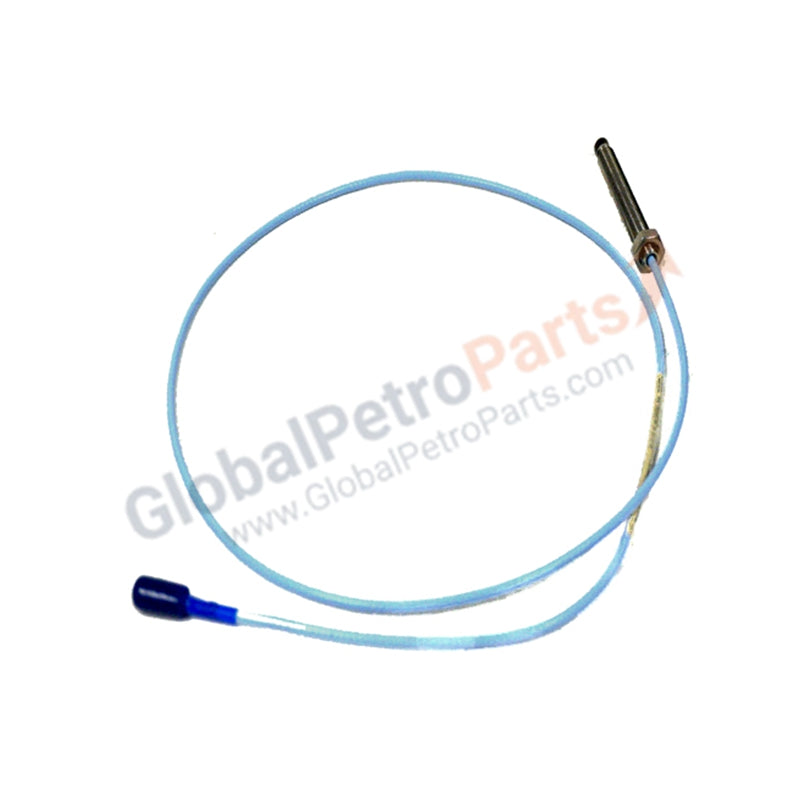

Bently Nevada 330903-02-16-05-02-00 3300 XL Proximity Probe

Configured for high-frequency vibration and position sensing in industrial environments, the Bently Nevada 330903-02-16-05-02-00 (3300 XL Proximity Probe) provides direct physical signal acquisition for rotating machinery shafts.

Suffix Breakdown & Model Matrix

Hardware Specifications

Mechanical Monitoring and TSI Integration

The 3300 XL system relies on eddy-current induction to generate a displacement-proportional voltage. Accurate rotor dynamics analysis depends on precise eddy-current probe scaling to ensure the voltage-to-distance ratio remains consistent across the operating range. During installation, technicians must perform gap voltage validation to ensure the sensor is centered at -10 VDC, placing the probe tip within the linear portion of the transducer's measurement curve. To ensure signal purity, cross-talk suppression is achieved by following established separation guidelines between probes, preventing high-frequency interference between adjacent sensor channels.

Frequently Asked Questions

Q: Is this 330903 series probe compatible with 3300 XL NSv Proximitor sensors?

A: No. The 330903 series utilizes different electrical characteristics compared to the NSv (Narrow Side View) series. Always verify that the probe model is matched to the correct Proximitor sensor specified by the system design documentation.

Q: Can the probe be submerged in high-pressure oil?

A: The probe assembly is designed for high-pressure fluid environments common in fluid-film bearings. However, ensure the ClickLoc connector is properly seated and protected within a sealed housing to prevent fluid ingress into the coaxial cable dielectric.

Field Installation Guidelines

1. Probe Mounting: Ensure the 3/8-24 mounting thread is not subjected to torque exceeding 5.1 N m to prevent mechanical deformation of the probe casing.
2. Gap Setting: Use a feeler gauge to establish the initial gap according to the machine train's mechanical configuration document. Verify the gap voltage at the field wiring terminal to confirm accuracy.
3. Connector Integrity: Inspect the ClickLoc connector for moisture or particulate contamination before mating. The connector must be locked securely to ensure electrical continuity.
4. Shielding: Maintain a continuous shield path from the probe connector to the Proximitor. Do not ground the cable shield at the probe end to avoid ground loop current interference.
