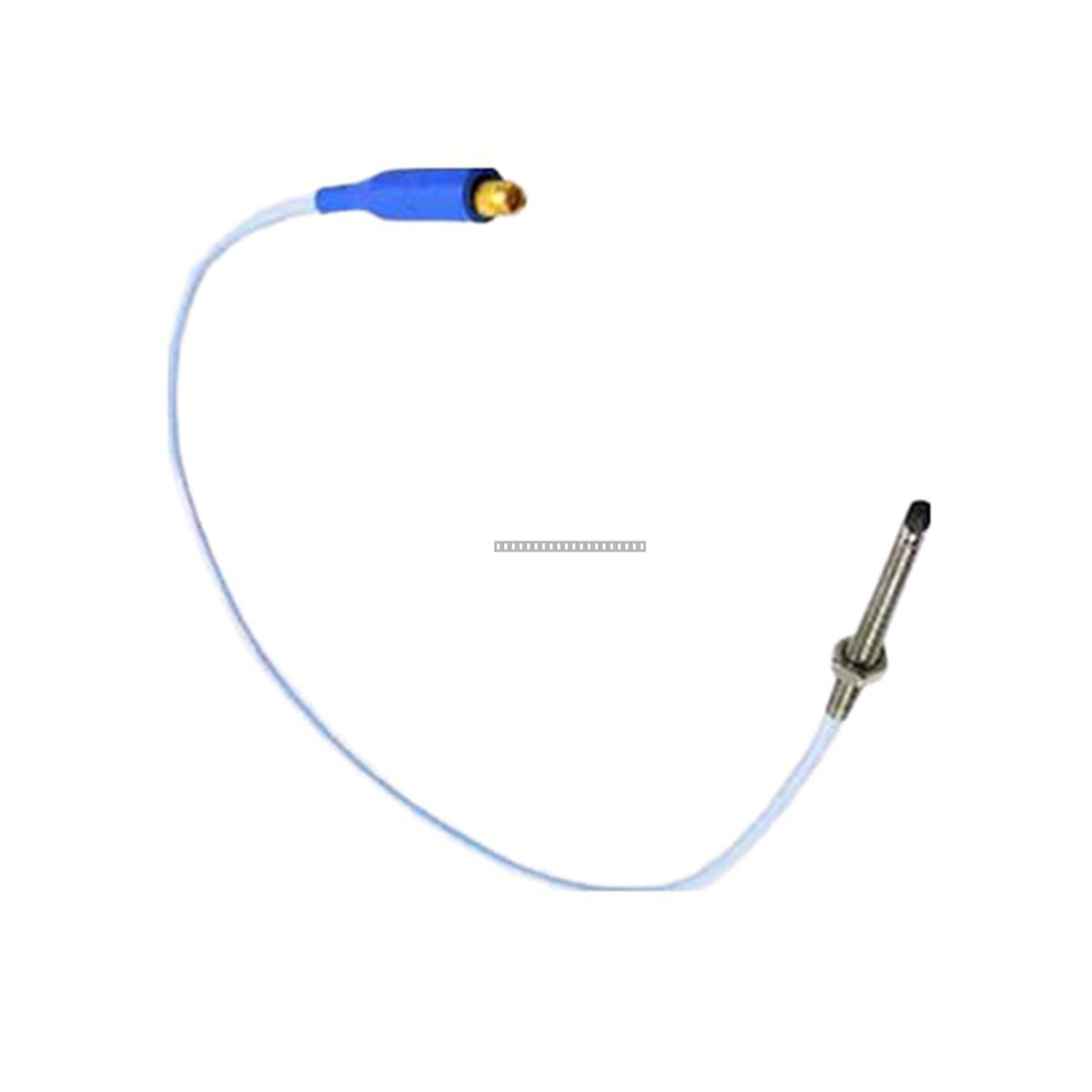

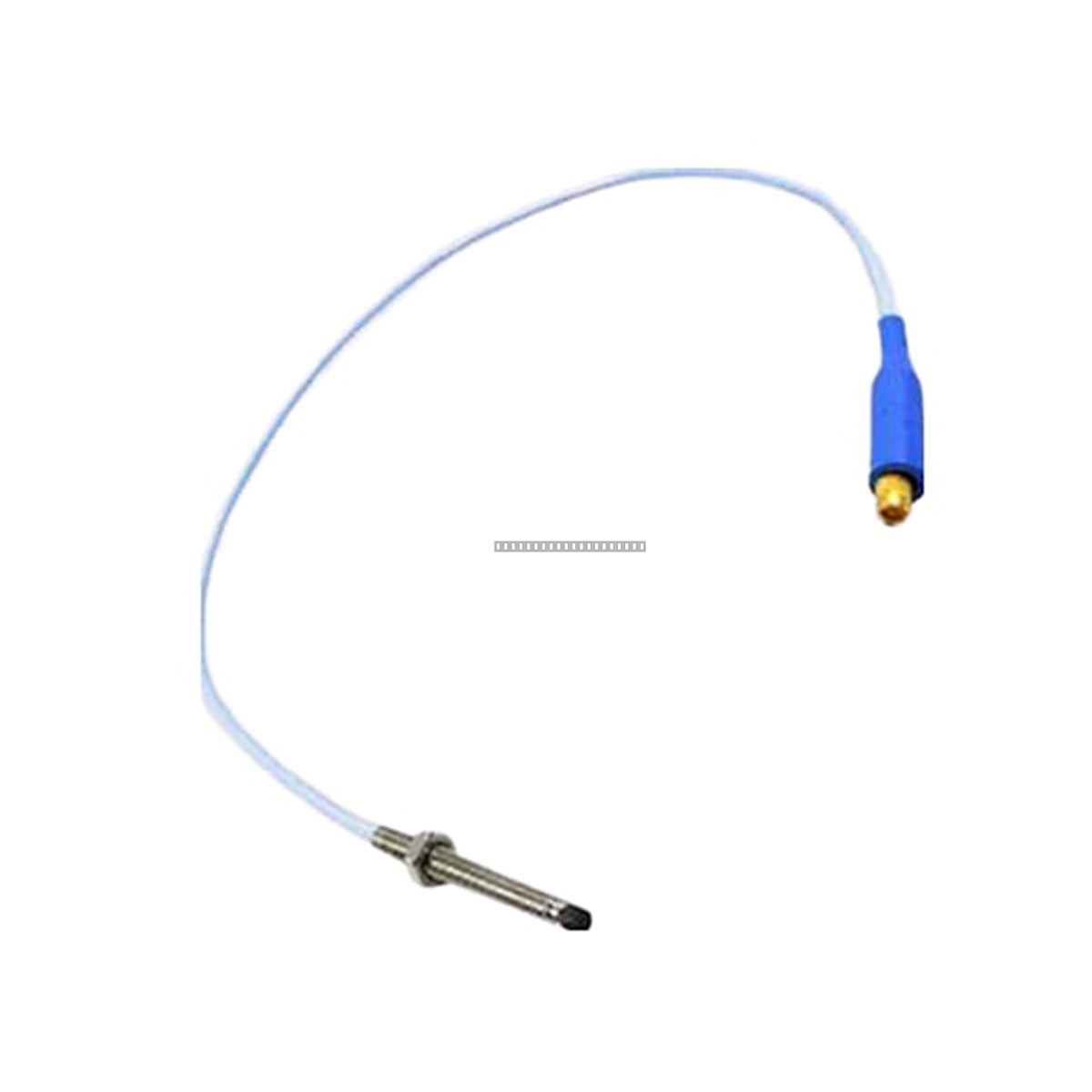

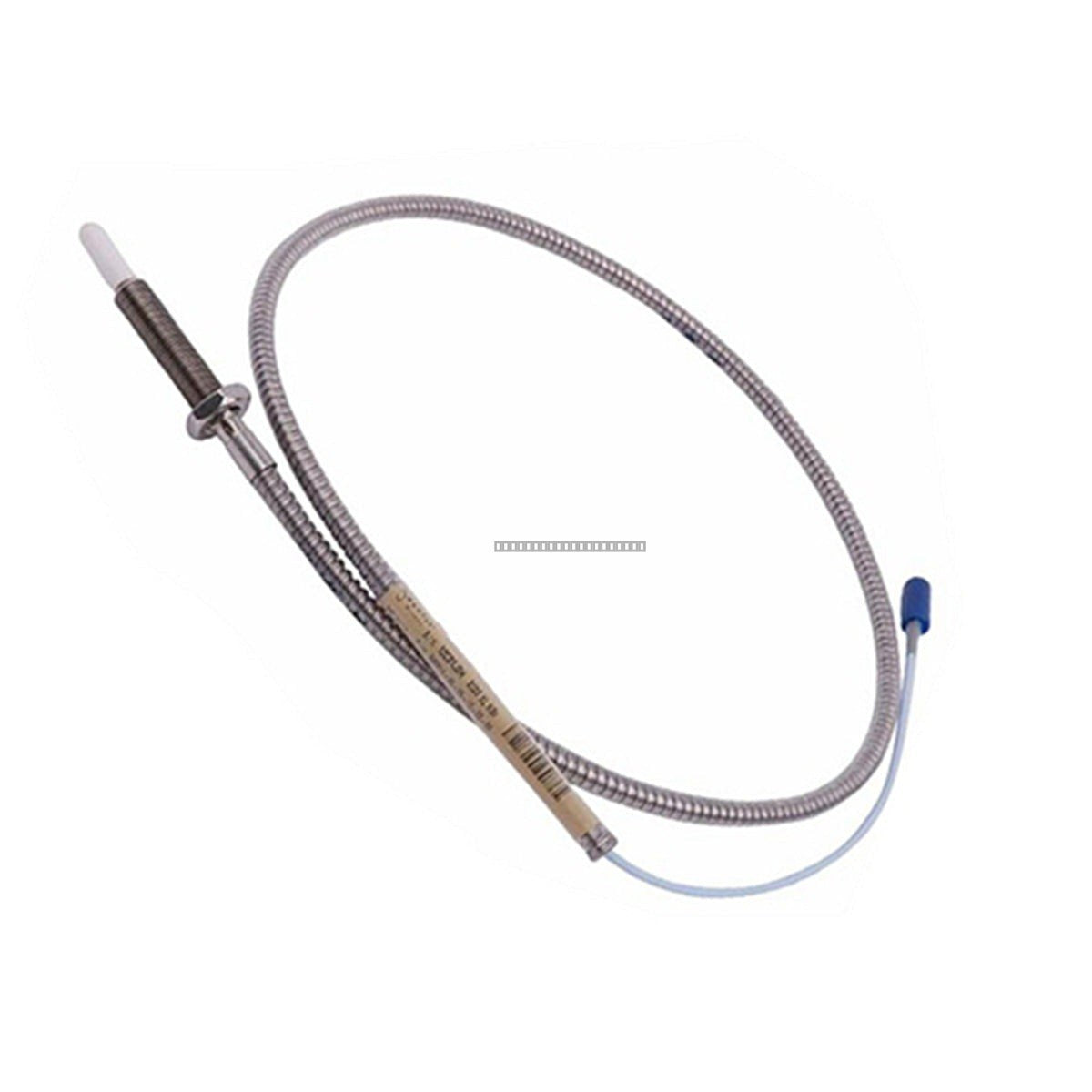

Bently Nevada 330910-05-10-02-00 3300 NSv Proximity Probe

Description

The Bently Nevada 330910-05-10-02-00 is a 3300 NSv (Near-field) Proximity Probe designed for high-precision vibration and position monitoring in industrial machinery. This probe is specifically engineered for applications where space is limited or where target materials require the specialized sensing characteristics of the NSv series. It provides reliable, non-contact measurement of shaft displacement, position, and vibration, serving as a critical component in condition monitoring systems.

Features

• Designed for 3300 NSv proximity transducer systems.
• M10 x 1 thread configuration for secure mounting.
• Equipped with a robust armored cable for enhanced protection in harsh industrial environments.
• Features a miniature coaxial ClickLoc connector for reliable signal transmission.
• Standard cable length of 1.0 meter (39 inches).
• Optimized for applications requiring a 50 mm case length and 00 mm unthreaded length.

Applications

• Radial vibration monitoring in rotating machinery.
• Axial position (thrust) measurements.
• High-speed shaft displacement sensing.
• Turbomachinery protection systems where standard probes may be too large or lack the necessary sensitivity for specific targets.

Technical Specifications

Installation Guidelines

• Ensure the probe is mounted in a rigid, vibration-free bracket to prevent false readings.
• Handle the probe tip with care; the sensing element is sensitive to mechanical impact and surface damage.
• Route the coaxial cable away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain signal integrity.
• Use appropriate thread-locking compounds if required by the specific machine housing, ensuring the probe is correctly gapped according to the system manual.
• Verify that the ClickLoc connector is fully seated and locked to prevent intermittent signal loss.
• Always power down the monitoring system before disconnecting or replacing the probe to avoid electrical transients.

FAQ

What is the primary use of the 3300 NSv probe?

The 3300 NSv probe is used for non-contact vibration and position measurement, particularly in applications where the target area is small or where standard 3300 XL probes are not suitable due to size or sensing requirements.

Is this probe compatible with standard Bently Nevada extension cables?

This model is designed for use with the 3300 NSv transducer system. Ensure that the extension cable and Proximitor sensor are also compatible with the NSv series specifications.
