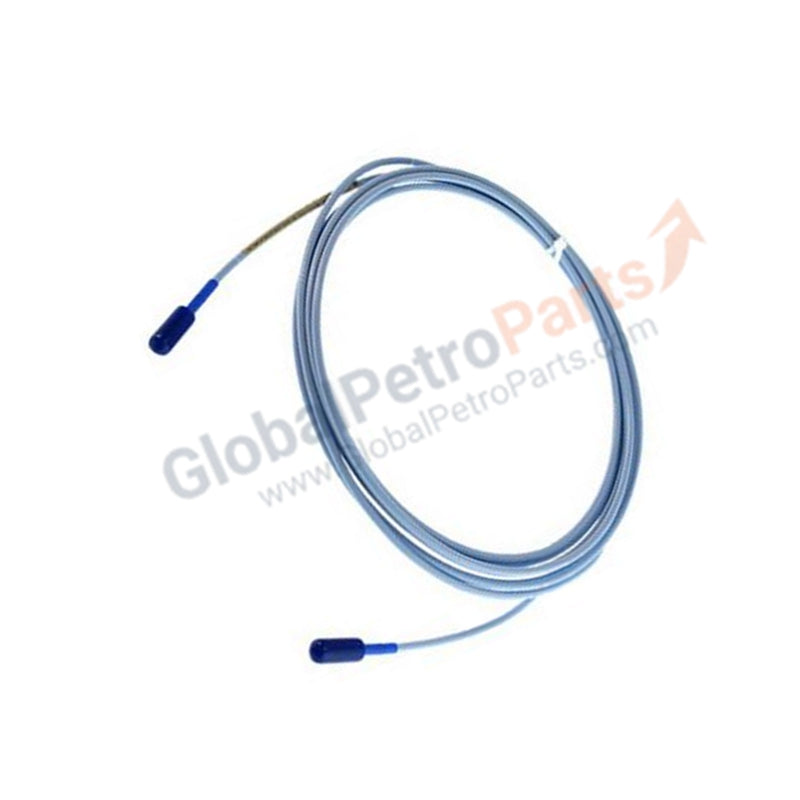

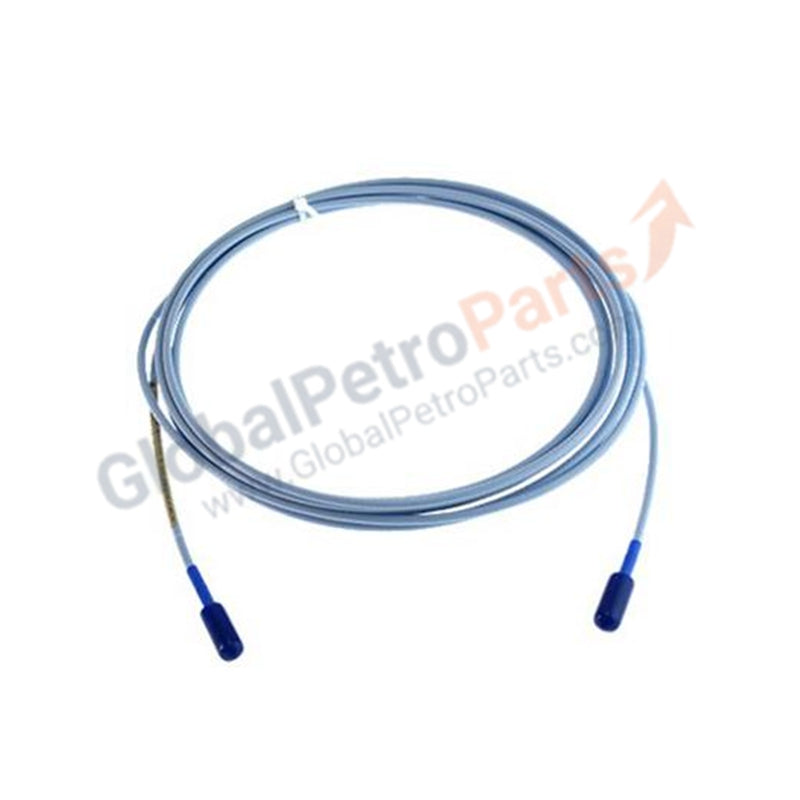

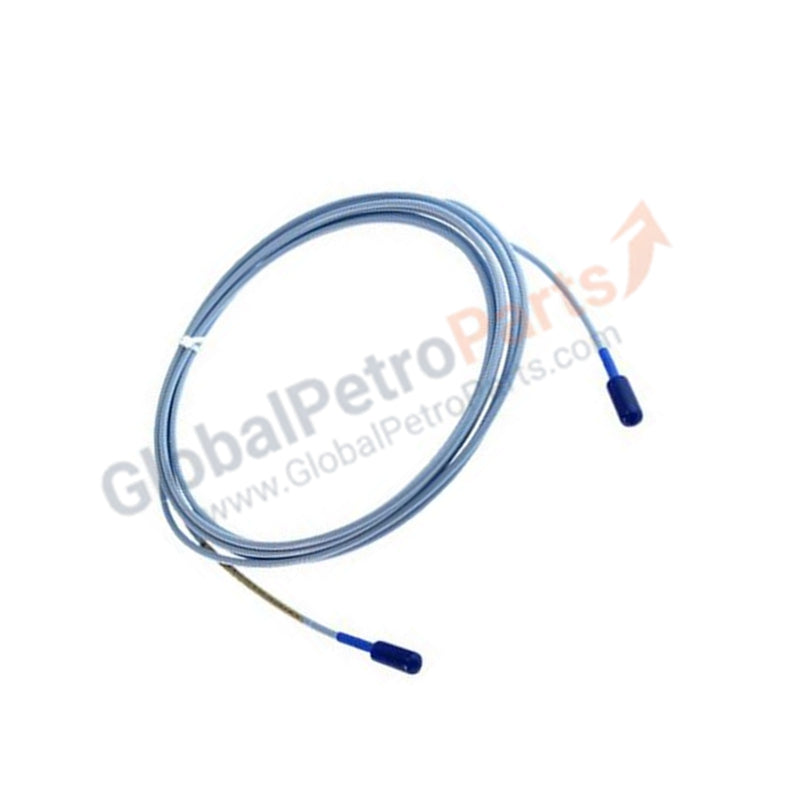

Bently Nevada 330930-060-00-05 3300 XL Standard Extension Cable

Configured for signal transmission between proximity probes and monitoring instrumentation in machinery protection systems, the Bently Nevada 330930-060-00-05 (3300 XL Extension Cable) provides direct physical and electrical execution within the transducer chain.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 3300 XL system requires precise impedance characteristics to ensure the integrity of eddy-current probe scaling. This extension cable acts as an integral link between the probe and the Proximitor sensor. Deviation in electrical resistance or capacitance—often caused by poor connection or cable damage—can result in inaccurate gap voltage validation. Operators must ensure that the transducer system, including this cable and the probe, remains within the calibrated -10 VDC target range to maintain linear operation. To prevent signal distortion, maintain physical separation from high-frequency power lines, which facilitates effective cross-talk suppression in multi-channel monitoring configurations.

Frequently Asked Questions

Q: Can the 330930-060-00-05 cable be spliced if the run length is too long?

A: No. Splicing or modifying the length of the coaxial extension cable will alter the system impedance and capacitance. This leads to measurement errors in vibration and displacement data and violates the manufacturer's calibration certification.

Q: What is the impact of not using stainless steel armor (Option 00) in industrial environments?

A: The absence of stainless steel armor reduces the cable's resistance to mechanical abrasion and fluid ingress. In areas with high risk of physical contact or exposure to harsh chemicals, additional protective conduit should be employed to ensure long-term signal stability.

Field Installation Guidelines

• Routing: Route cables through dedicated instrument trays to minimize exposure to electromagnetic interference (EMI). Maintain a bend radius of no less than 25 mm to prevent stress on the FEP insulation.
• Connector Integrity: Inspect all connector threads for debris before coupling. Ensure that connections are hand-tightened only; the use of mechanical tools can damage the delicate coaxial pins.
• Grounding: Verify that the shield remains continuous throughout the cable run. The shield should be grounded only at the terminal housing to avoid ground loop currents that inject noise into the monitoring signal.
• Verification: Following installation, perform a gap voltage check at the monitor terminal to verify that the signal matches the probe air-gap distance per the machine’s rotor dynamics documentation.
