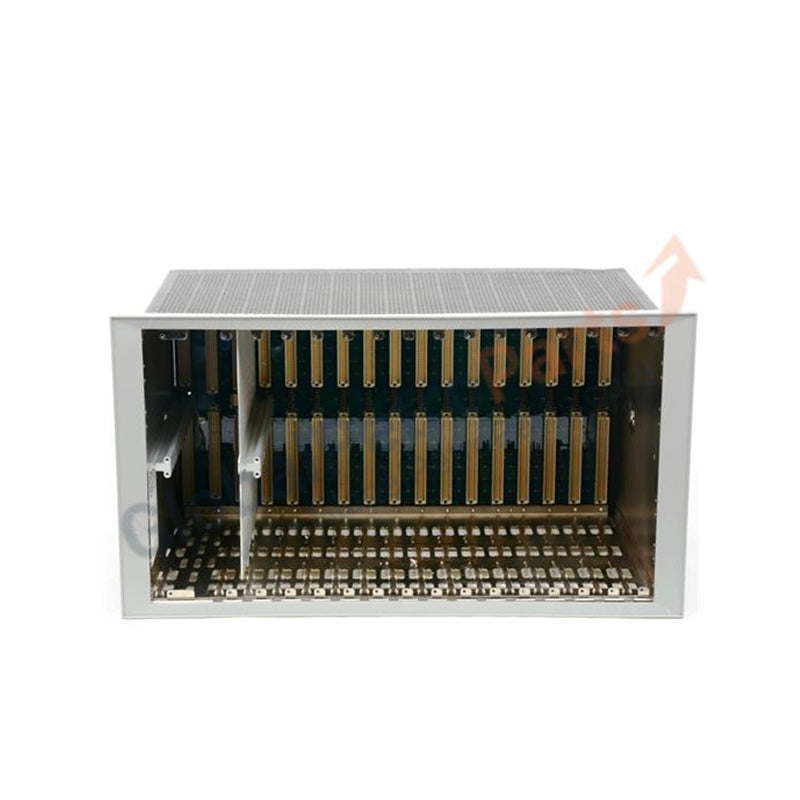

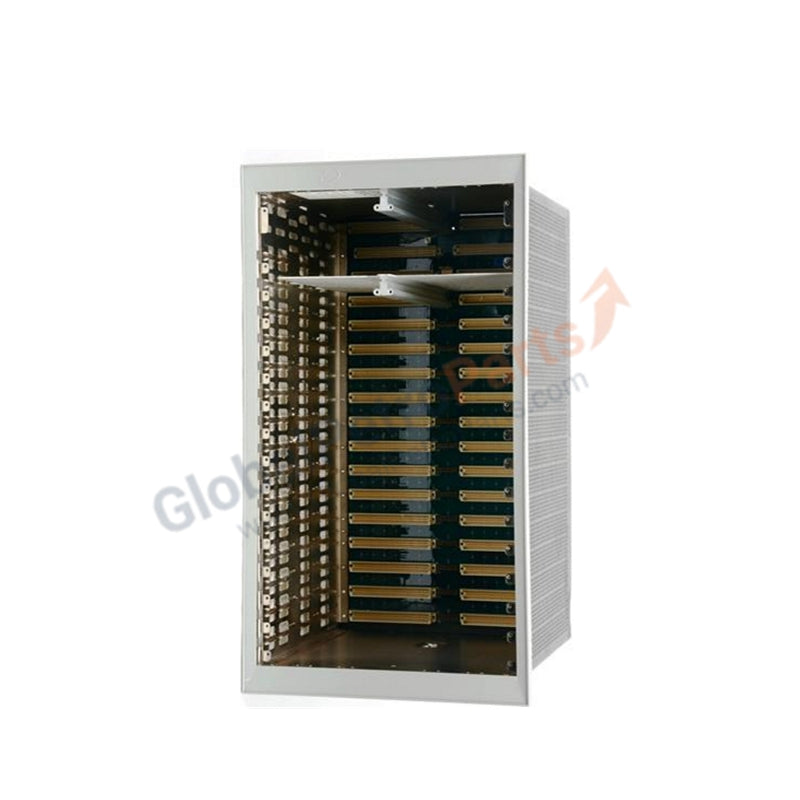

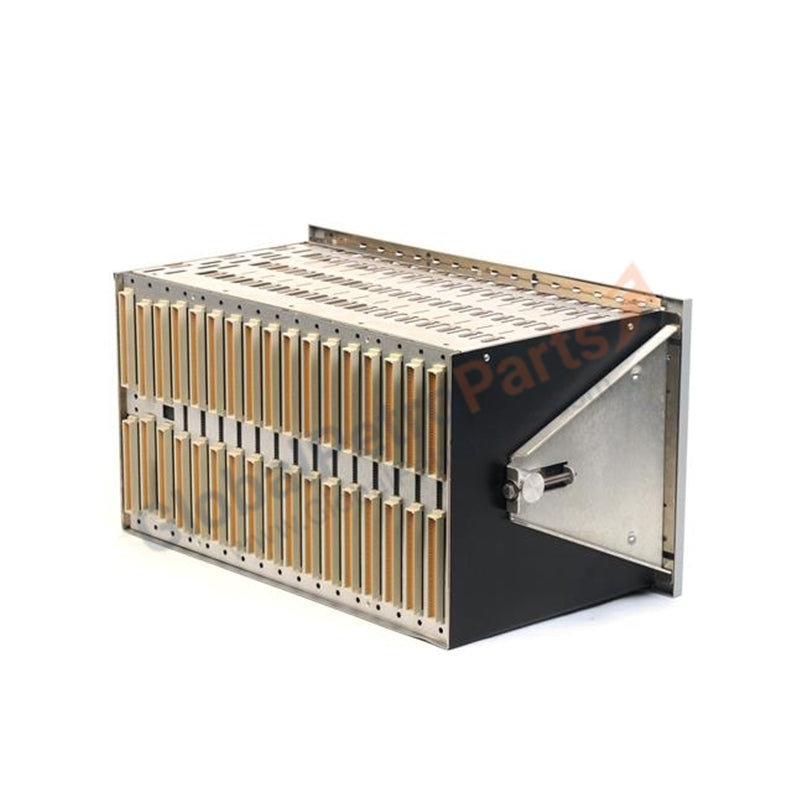

Bently Nevada 3500/05-01-01-00-00 3500 Series System Rack

Product Overview

The Bently Nevada 3500/05-01-01-00-00 serves as the essential hardware foundation for the 3500 Machinery Protection System. This specific configuration utilizes a compact 7-slot design optimized for panel-mount installations where cabinet space remains at a premium. It provides the high-speed digital backplane necessary for communication between monitor modules, power supplies, and gateways. We supply this system rack in 100% brand new, original condition to ensure the safety and integrity of your critical rotating machinery.

Part Number Breakdown: 3500/05-01-01-00-00

• 3500/05: System Rack Main Series.

• -01: 19-inch Rack Mount Option (Supports standard industrial framing).

• -01: 7-Slot Rack (Compact version for targeted monitoring applications).

• -00: No Agency Approvals (Standard non-hazardous area configuration).

• -00: No Display Option.

Technical Specifications

• Manufacturer: Bently Nevada (Baker Hughes)

• Country of Origin: United States (USA)

• Module Capacity: 7 available slots for monitoring and interface cards

• Mounting Option: Panel Mount

• Dimensions: 15.25 cm x 11.5 cm x 13 cm

• Backplane Interface: High-speed digital bus for real-time data exchange

• Series: Bently Nevada 3500

• Condition: 100% Brand New, Factory Original

Engineering Advantages

The 3500/05-01-01-00-00 chassis provides specific mechanical and electrical benefits for industrial environments:

• Space-Saving Geometry: The 7-slot configuration significantly reduces the footprint compared to full-size 14-slot racks. This allows engineers to integrate professional machinery protection into smaller control panels or remote instrument enclosures.

• Rugged Backplane Architecture: Bently Nevada engineers the backplane to resist high-frequency vibration and electromagnetic interference (EMI). This shielding prevents signal crosstalk, ensuring that protection modules execute trip logic based on accurate sensor data.

• Streamlined Panel Integration: The panel-mount design features robust mounting points that secure the chassis directly to the sub-panel. This minimizes mechanical stress on internal connectors and ensures long-term electrical contact in high-vibration areas.

• Thermal Efficiency: The compact rack size promotes better airflow within confined cabinets. By reducing the volume of concentrated electronics, the system maintains lower operating temperatures, which extends the Mean Time Between Failures (MTBF) for all installed modules.

FAQs

• How many monitor modules can I fit in this 7-slot rack?

  The rack reserves the first two slots for power supplies and the Rack Interface Module (RIM). This leaves 5 slots available for vibration, thrust, or temperature monitoring modules, depending on your specific machine train requirements.

• Does this rack support redundant power supplies?

  Yes. Despite its compact size, the 3500/05 7-slot rack allows for the installation of two power supplies to provide redundant power paths to the backplane, enhancing overall system reliability.

• Can I upgrade to a 14-slot rack later using the same modules?

  Yes. All Bently Nevada 3500 series modules are universal. You can move your existing modules from a 7-slot rack to a 14-slot rack if your monitoring needs expand in the future.

• Is this a genuine Bently Nevada product?

  We guarantee that every 3500/05-01-01-00-00 we ship is 100% brand new and original. Each unit arrives in its original factory packaging and includes a full 1-year comprehensive warranty.
