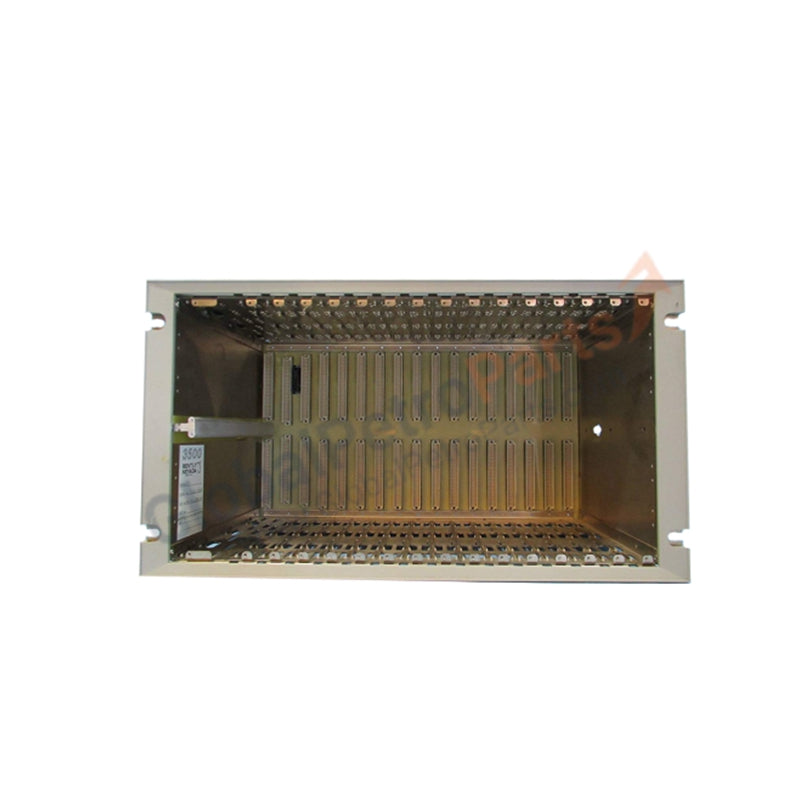

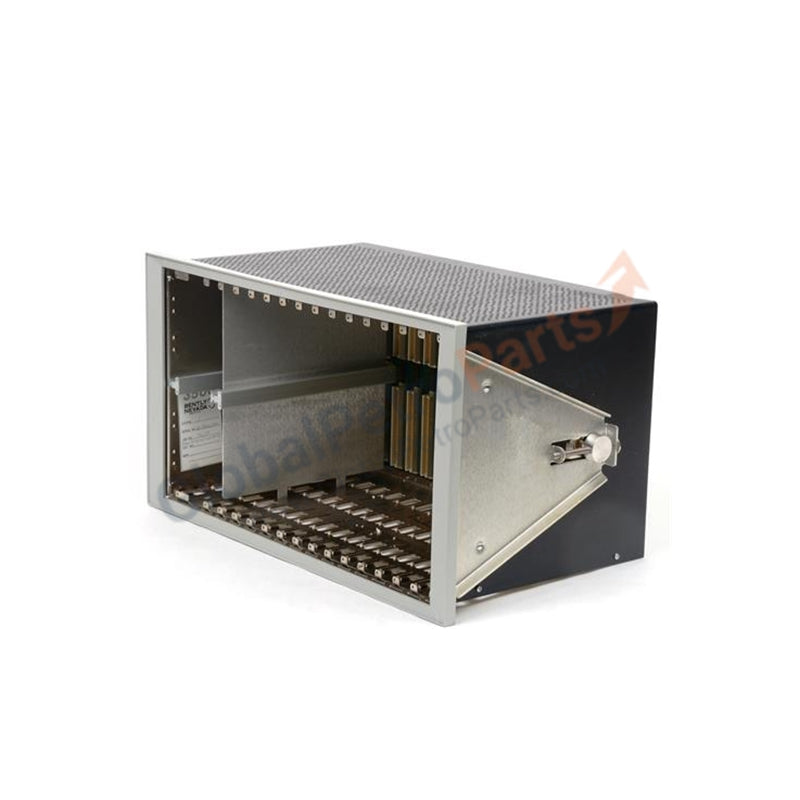

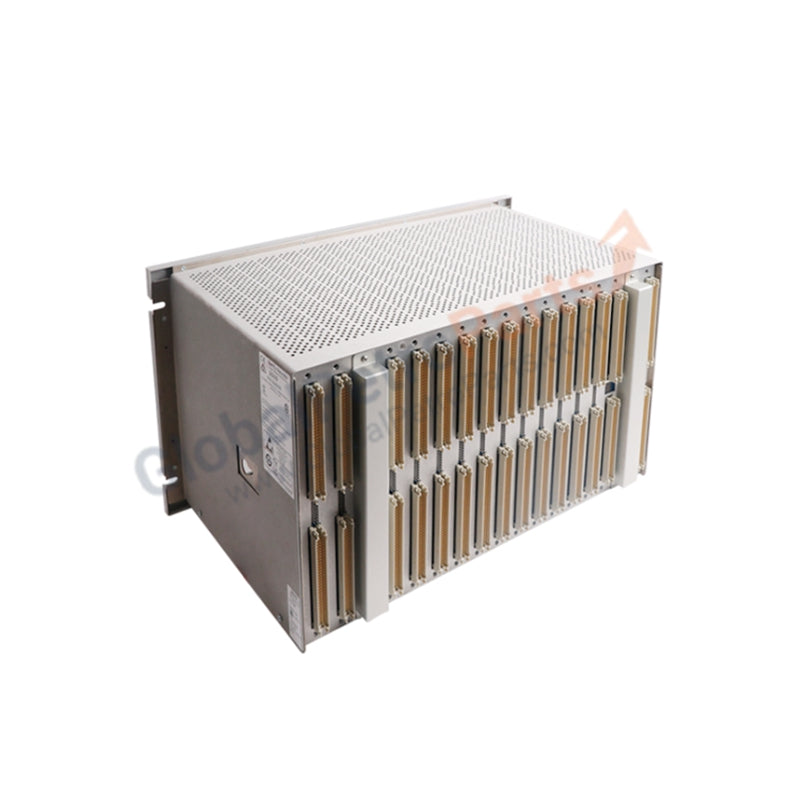

Bently Nevada 3500/05-01-03-00-00-01 3500 Series System Rack

Product Overview

The Bently Nevada 3500/05-01-03-00-00-01 serves as the central structural foundation for the 3500 Machinery Protection System. This 19-inch EIA rack houses and powers the various monitor modules, power supplies, and communication gateways required for continuous machinery health monitoring. It provides the high-speed backplane that facilitates seamless data exchange between modules, ensuring critical safety shutdowns and diagnostic data reach your control systems without delay. We supply this system rack in 100% brand new, original condition to ensure the structural and electrical integrity of your protection suite.

Part Number Breakdown: 3500/05-01-03-00-00-01

• 3500/05: System Rack Main Series.

• -01: 19-inch Rack Mount (Standard EIA version).

• -03: 14-Slot Rack (Provides maximum module capacity).

• -00: No Agency Approvals (Standard non-hazardous area configuration).

• -00: No display option.

• -01: CSA/NRTL/C (Class 1, Division 2) Agency Approval.

Technical Specifications

• Manufacturer: Bently Nevada (Baker Hughes)

• Rack Standard: 19-inch EIA standard infrastructure

• Module Capacity: 14 available slots for monitoring and communication modules

• Mounting Configurations: Supports Rack Mount, Panel Mount, and Bulkhead Mount

• Power Distribution: Integrated backplane distributes power from dual or single supplies to all installed cards

• Compliance: FCC Part 15, EMC Directive 2014/30/EU, LV Directive 2014/35/EU, RoHS

• Hazardous Area Rating: Various approvals including CSA Class 1, Div 2

• Condition: Brand New Original

Engineering Advantages

The 3500/05-01-03-00-00-01 platform addresses the rigorous demands of industrial machinery environments through several key engineering features:

• Versatile Mounting Geometry: This rack supports three distinct installation methods (Panel, Rack, or Bulkhead). This flexibility allows engineers to install the protection system in existing 19-inch server cabinets or mount it directly to machinery skids where space is limited.

• Robust Data Backplane: The internal backplane utilizes industrial-grade shielding to protect high-speed digital signals from electromagnetic interference (EMI). This prevents "ghost" alarms or data corruption caused by nearby high-voltage switchgear.

• High-Density Monitoring: With 14 available slots, this rack manages complex machinery trains—including turbines, compressors, and gearboxes—from a single chassis. This centralizes your protection logic and reduces the total footprint of the monitoring system.

• Thermal Management Efficiency: The open-frame design promotes natural convection and airflow around the modules. This prevents heat buildup, extending the operational lifespan of the sensitive electronic components housed within the rack.

FAQs

• Does this rack include the power supply modules?

  The 3500/05-01-03-00-00-01 provides the chassis and backplane infrastructure. You must purchase the 3500/15 Power Supply modules separately to populate the dedicated power slots.

• What is the difference between Rack Mount and Bulkhead Mount?

  The Rack Mount version fits standard 19-inch EIA cabinets using front-facing ears. The Bulkhead Mount allows you to bolt the rack directly onto a flat surface or machine wall, which is ideal for installations lacking formal cabinetry.

• Can I install this rack in a hazardous environment?

  Yes, this specific configuration includes the "-01" suffix, which carries CSA Class 1, Division 2 approvals. This rating permits installation in areas where flammable gases may occasionally be present.

• Is this a genuine Bently Nevada product?

  We guarantee that every 3500/05-01-03-00-00-01 we ship is 100% brand new and original. The unit arrives in original factory packaging with a comprehensive 1-year warranty.
