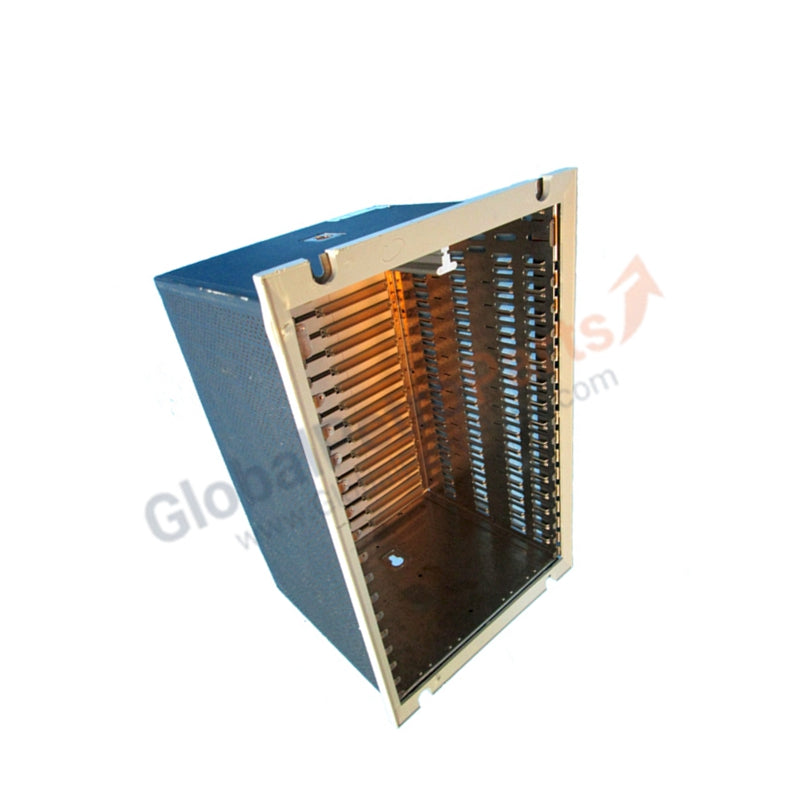

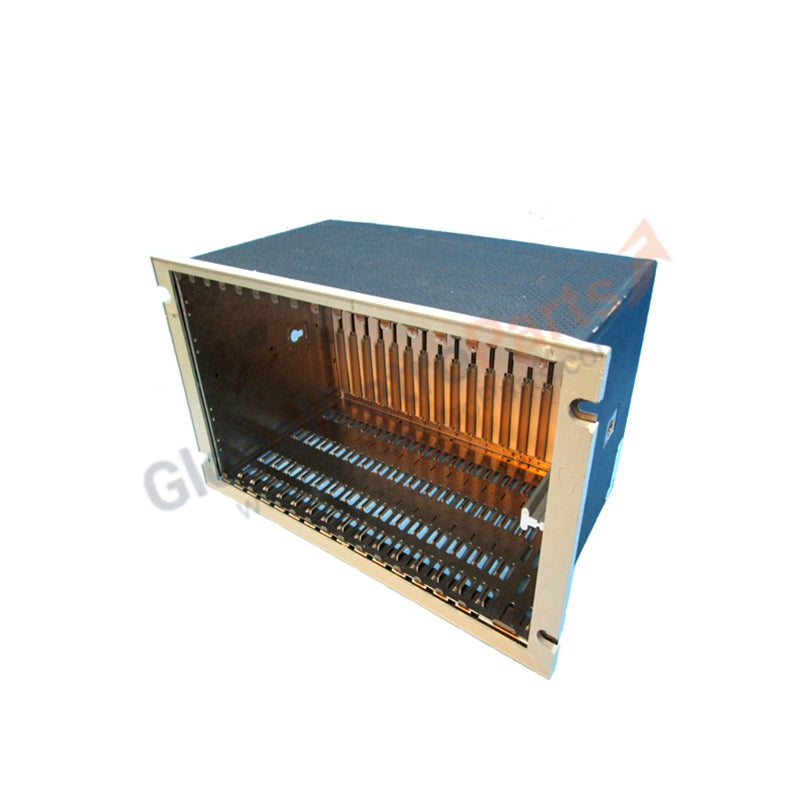

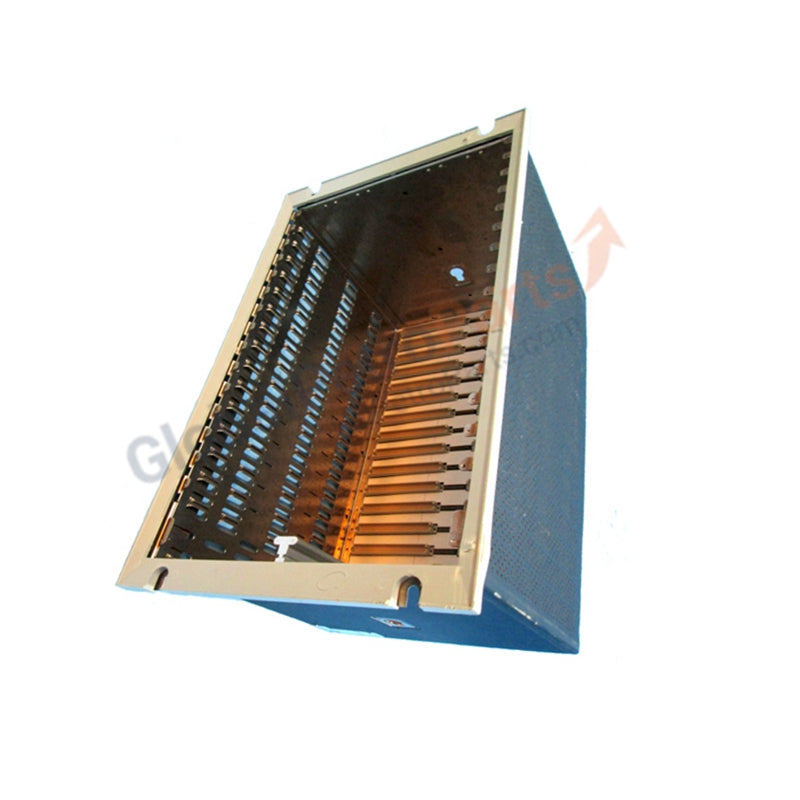

Bently Nevada 3500/05 Rack 3500/05-01-02-00-00-01 Panel Mount

Overview

The Bently Nevada 3500/05-01-02-00-00-01 is a full-size 19-inch system rack designed to house multiple 3500 Series monitoring modules, providing a durable, modular platform for machinery protection and condition monitoring in industrial environments.

Technical Specifications

• Manufacturer: Bently Nevada

• Model / Part Number: 3500/05-01-02-00-00-01

• Product Type: 3500/05 System Rack

• Rack Size: 19-inch standard, 14 module slots

• Mounting Options: Full-size rack mount; panel mount with rear access; bulkhead mount with front access

• Module Placement: Modules positioned side-by-side for efficient communication

• Power Supply Position: Power supplies and interface module occupy far-left slots

• Material: Industrial-grade metal chassis

• Dimensions (L×W×H): 48.26 × 34.92 × 26.59 cm

• Shipping Weight: 4.5 kg

• Application: Central platform for 3500 Series modules in machinery monitoring and protection

Key Features

• Modular Design: Supports flexible module configurations and multiple monitoring devices

• Multiple Mounting Styles: Panel mount, bulkhead mount, or standard rack mount for versatile installation

• Rear and Front Wiring Access: Simplifies maintenance depending on mounting type

• Efficient Layout: Optimized for power distribution and signal routing

• Durable Construction: Built for long-term use in industrial environments

• Full Compatibility: Works with all 3500 Series modules for integrated monitoring systems

FAQ

Q: How many modules can the rack accommodate?
A: Up to 14 3500 Series modules, including monitoring and power supply units.

Q: Can this rack be mounted on a panel?
A: Yes, panel mounting is supported with rear access for wiring.

Q: What materials are used in the chassis?
A: Industrial-grade metal for strength and durability.
