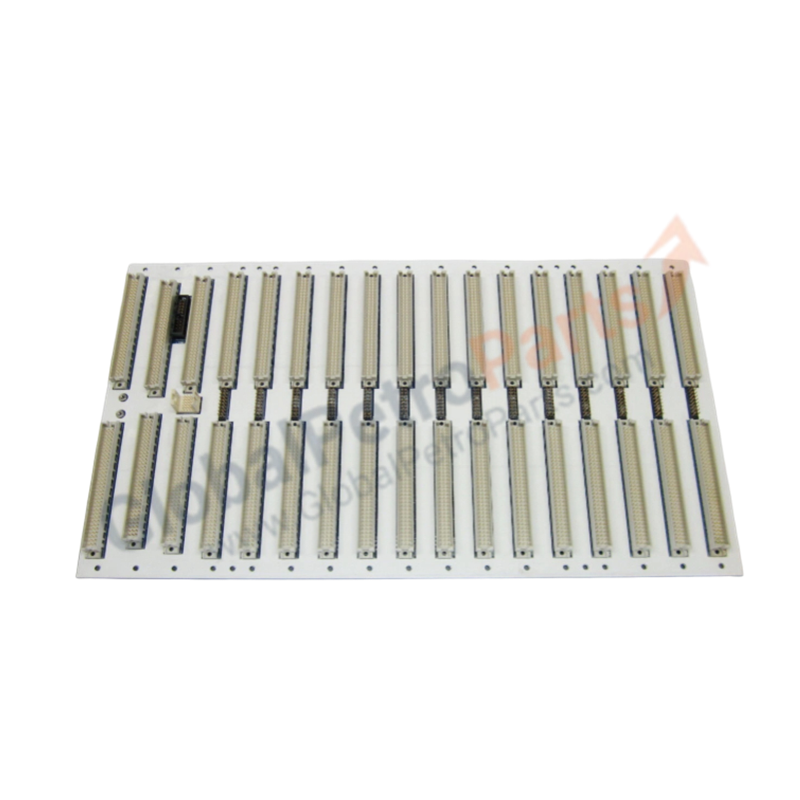

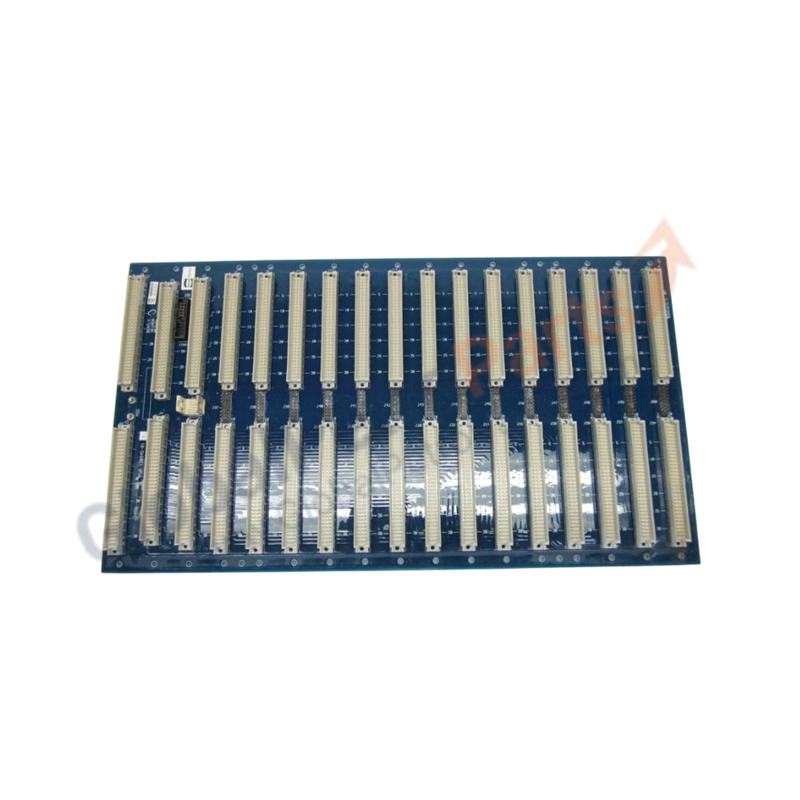

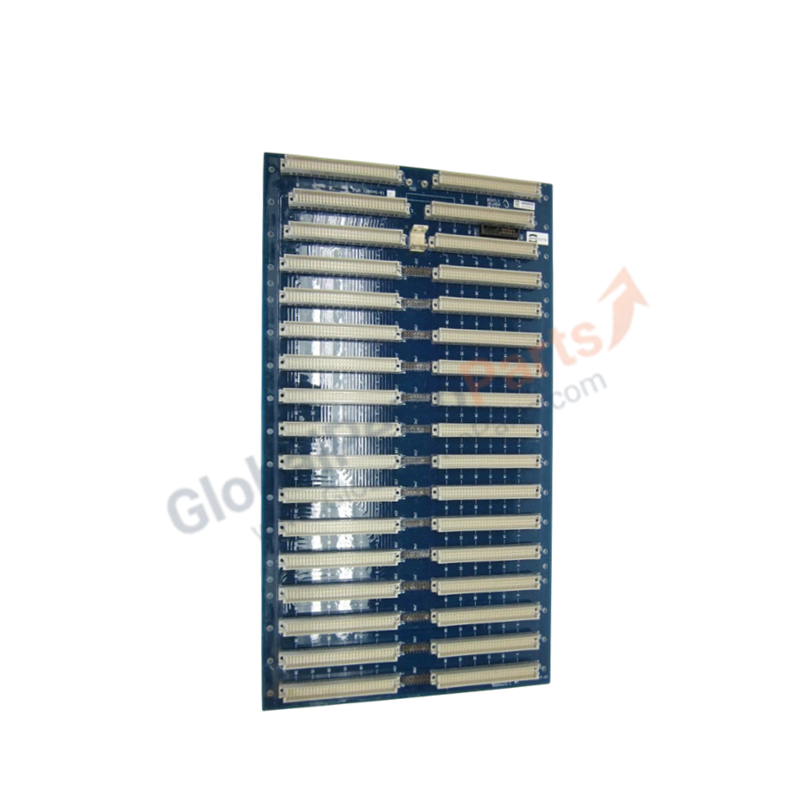

Bently Nevada 3500/05 System Rack

Configured for mechanical monitoring and machinery protection in Bently Nevada 3500 series racks, the Bently Nevada 3500/05 138945-01 (3500/05 System Rack) provides direct physical housing and backplane connectivity for system modules. This full-size unit serves as the backbone for integrating sensor input, processing, and relay modules to establish a standardized machine condition monitoring environment.

Suffix Breakdown & Model Matrix

• 3500/05: Base model designation for the Bently Nevada System Rack.
• 138945-01: Specific catalog ordering code representing the full-size 19-inch EIA rack configuration.

Hardware Specifications

Rotor Dynamics and Signal Integrity

The 3500/05 rack infrastructure is engineered to support precise rotor dynamics analysis by maintaining signal integrity across the backplane bus. To ensure accurate eddy-current probe scaling, the rack architecture facilitates stable common reference grounding and EMI/RFI shielding. When deploying proximity transducers, the system rack supports gap voltage validation with -10 VDC targets to ensure linear response ranges. Effective cross-talk suppression is achieved through isolated signal pathways within the rack backplane, preventing high-frequency noise from corrupting low-level vibration inputs critical for analyzing machine state and shaft displacement.

Frequently Asked Questions

Q: Can modules be hot-swapped while the 3500/05 rack is powered?

A: Yes, the 3500 system architecture supports the removal and installation of modules under power without interrupting the operation of other modules in the rack.

Q: What are the requirements for rack power supply installation?

A: The rack accommodates one or two power supplies in the dedicated slots. If redundancy is required, two supplies must be installed; they will share the load automatically.

Field Installation Guidelines

1. Mounting Stability: Secure the 19-inch rack into a standard instrument cabinet using all four mounting points to prevent structural vibration resonance.
2. Grounding: Ensure the rack chassis is connected to a dedicated instrument earth ground via the rear grounding stud using a minimum 6 AWG copper conductor.
3. Cable Routing: Separate sensor signal cables from high-voltage AC power lines by at least 15 cm to minimize induced noise.
4. Shielding: Terminate all cable shields at the rack I/O modules specifically to the provided shield terminals; avoid daisy-chaining shields between different terminal blocks.
