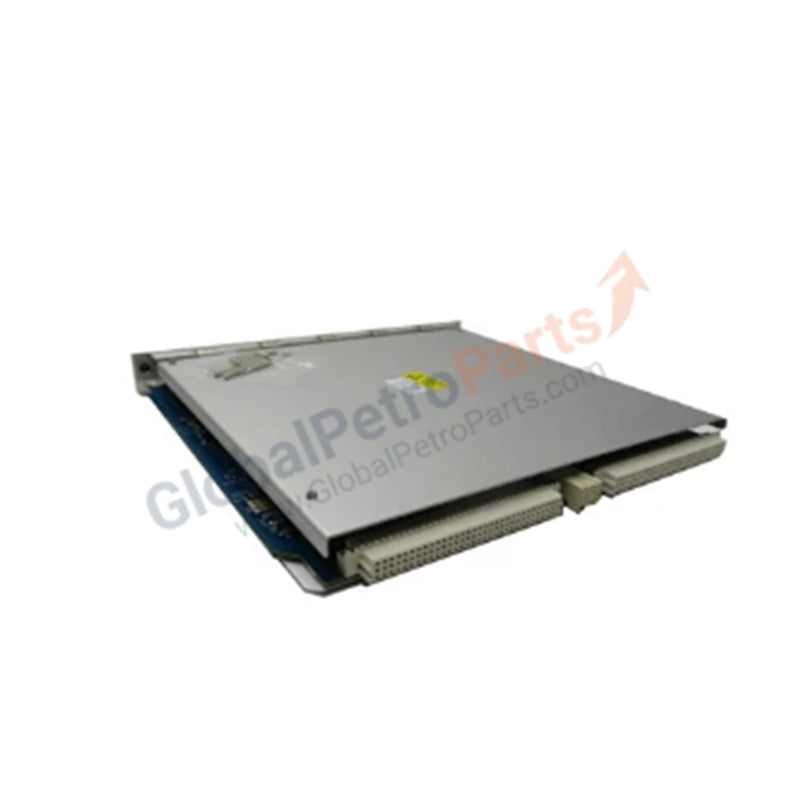

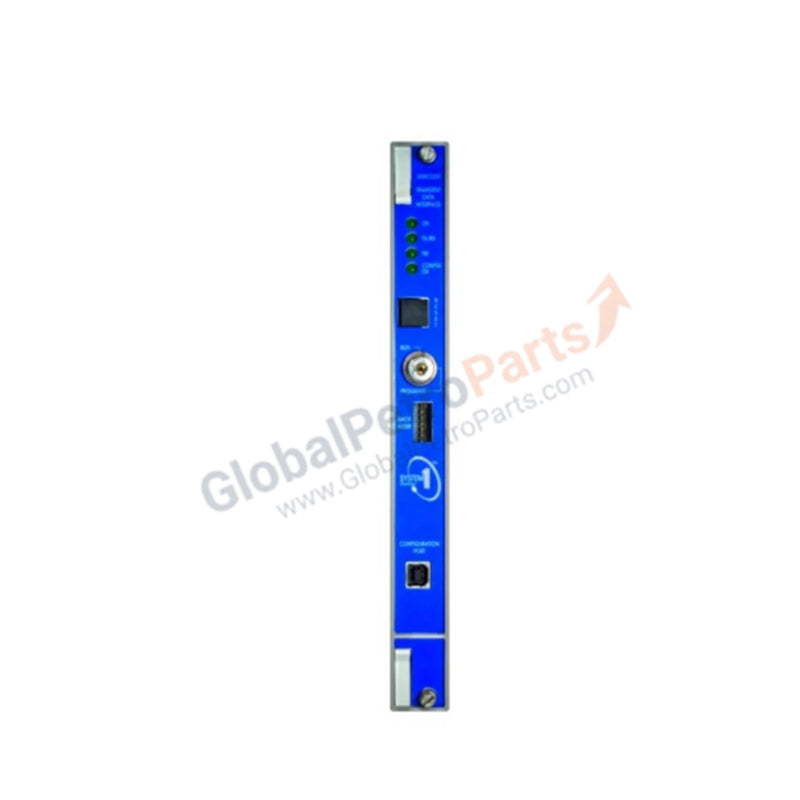

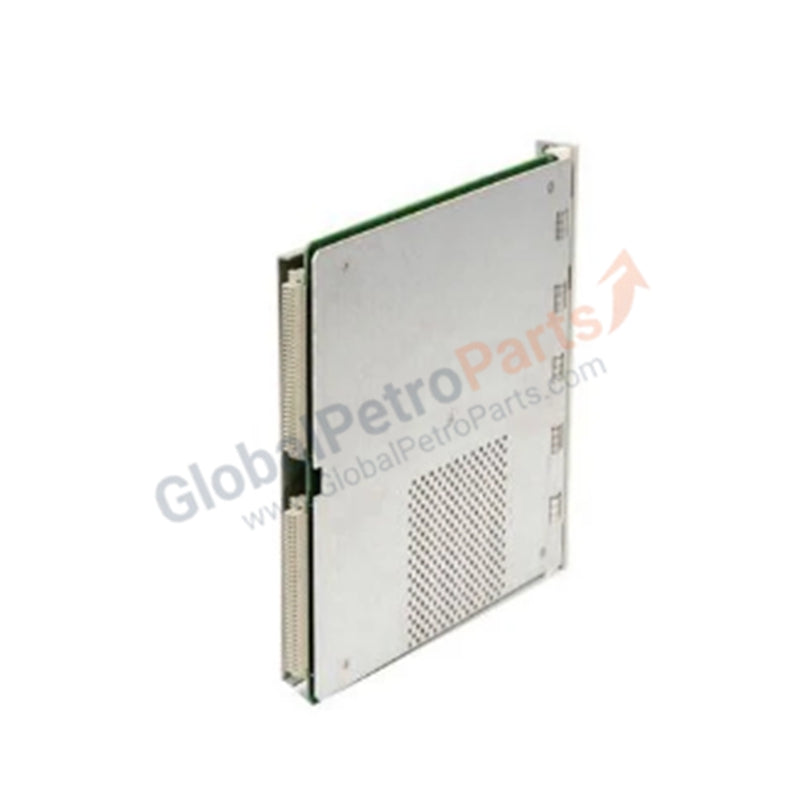

Bently Nevada 3500/22M 288055-02 Transient Data Interface Module

Configured for high-speed diagnostic data acquisition in 3500 Series monitoring platforms, the Bently Nevada 3500/22M 288055-02 (3500/22M Transient Data Interface Module) provides direct physical and network-level execution of transient waveform capture and rack communication.

Suffix Breakdown & Model Matrix

Hardware Specifications

Mechanical Monitoring and TSI Integration

The 3500/22M module functions as the primary interface between the 3500 machinery protection rack and external condition monitoring software. It manages the collection of both static and dynamic (transient) data from all installed M-series monitors within the rack. Proper rotor dynamics analysis relies on the high-fidelity waveform capture provided by this module, which utilizes internal signal processing to ensure that dynamic vibration data maintains synchronization across all channels. In TMR configurations, the module ensures cross-talk suppression by maintaining independent data paths for primary, secondary, and tertiary processors, preventing single-point failure impacts on the integrity of the diagnostic data stream.

Frequently Asked Questions

Q: Does the 3500/22M module support hot-swapping during normal rack operation?

A: Yes. The module is designed to be removed or inserted into the rack while the system is powered and operational without disrupting the core monitoring functions of the installed M-series monitor cards.

Q: Can the 3500/22M module be used in a non-TMR (Triple Modular Redundant) rack configuration?

A: Yes. While the 288055-02 is the TMR-capable version, it is backward compatible with standard rack configurations. It acts as the Rack Interface Module (RIM) regardless of the specific rack redundancy level.

Field Installation Guidelines

1. Slot Placement: Install the module in the slot designated for the Rack Interface Module (RIM), typically adjacent to the power supplies. Ensure the backplane connectors are aligned before applying pressure.
2. Network Cabling: Utilize shielded Category 5e (or higher) Ethernet cabling for the host system connection. Maintain separation from high-voltage AC lines to prevent EMI-induced packet loss.
3. USB Configuration: The front panel USB port is intended for local configuration via the 3500 Configuration Software. Ensure the USB cable is disconnected after commissioning to maintain the rack's environmental sealing.
4. Firmware Compatibility: Verify that the installed firmware version is compatible with the version of the System 1 software being utilized to ensure complete feature set functionality.
